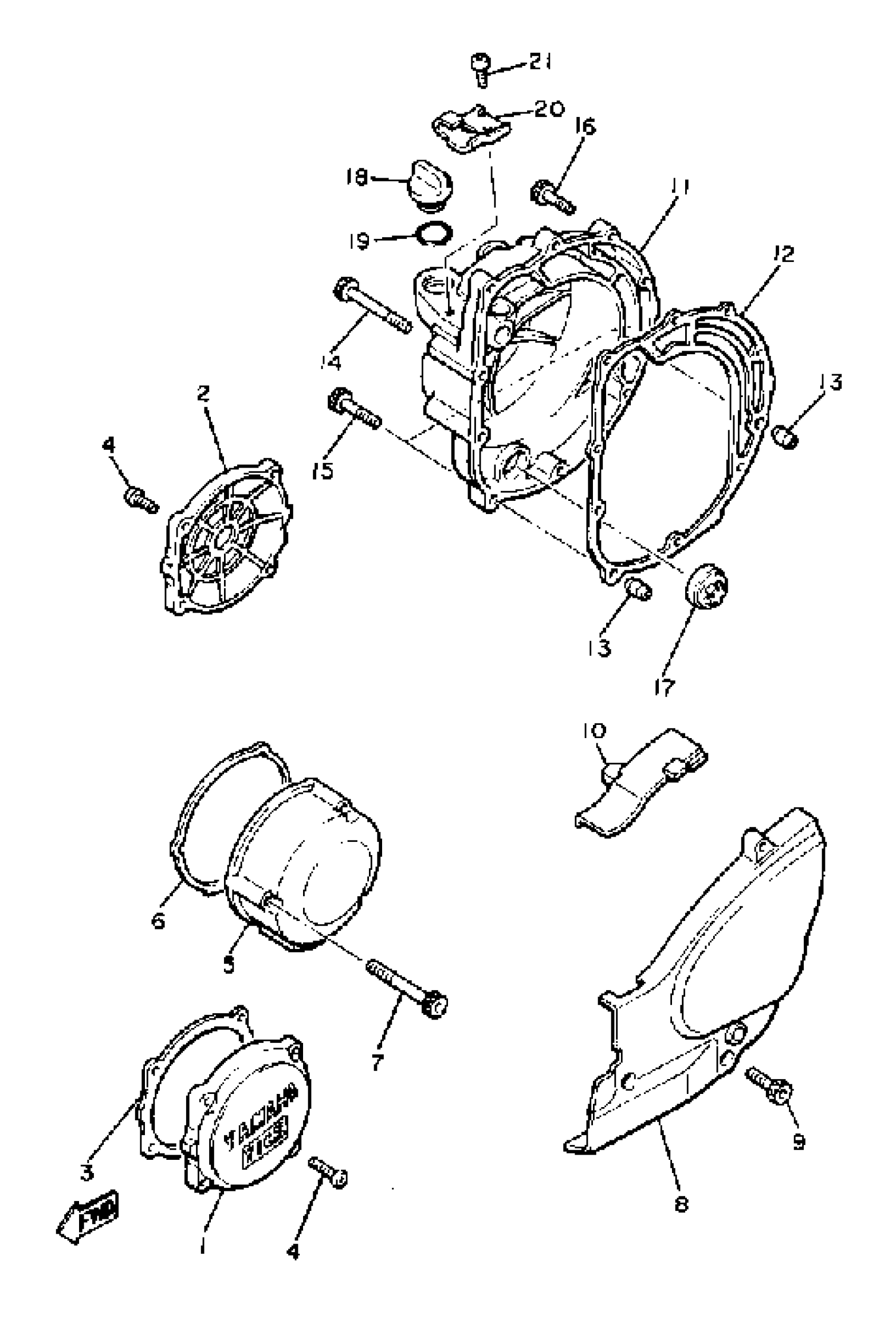

Yamaha XJ550RH (XJ550R) 1981 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, OIL PUMP

4U8-15416-01-00

Unavailable

2

COVER, OIL PUMP R

4U8-15426-01-00

Unavailable

3

GASKET, OIL PUMP COVER 1

4BB-15456-00-00

$11.99

4

SCREW, BIND (J17)

98980-06020-00

$8.49

5

COVER, GENERATOR

4G0-15415-01-00

Unavailable

6

GASKET 1

24J-15455-00-00

Unavailable

7

BOLT, SOCKET

91314-06070-00

$8.49

8

COVER, CRANKCASE L

4G0-15411-00-00

Unavailable

9

BOLT,SOCKET HEAD

91314-06025-00

$8.49

10

COVER, GENERATOR R

4G0-15425-00-00

Unavailable

11

COVER, CRANKCASE R

4G0-15421-02-00

Unavailable

12

GASKET, CRANKCASE COVER 2

4G0-15461-11-00

Unavailable

13

PIN, DOWEL(3VD)

99530-10114-00

$2.55

14

BOLT, SOCKET

91314-06070-00

$8.49

15

BOLT, SOCKET

91314-06040-00

$8.49

16

BOLT, SOCKET

91314-06030-00

Unavailable

17

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

18

PLUG, OIL

2H7-15363-00-00

Unavailable

19

O-RING(1KT)

93210-27778-00

Unavailable

20

HOLDER, CLCH CABLE

4V8-15441-00-00

Unavailable

21

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable
