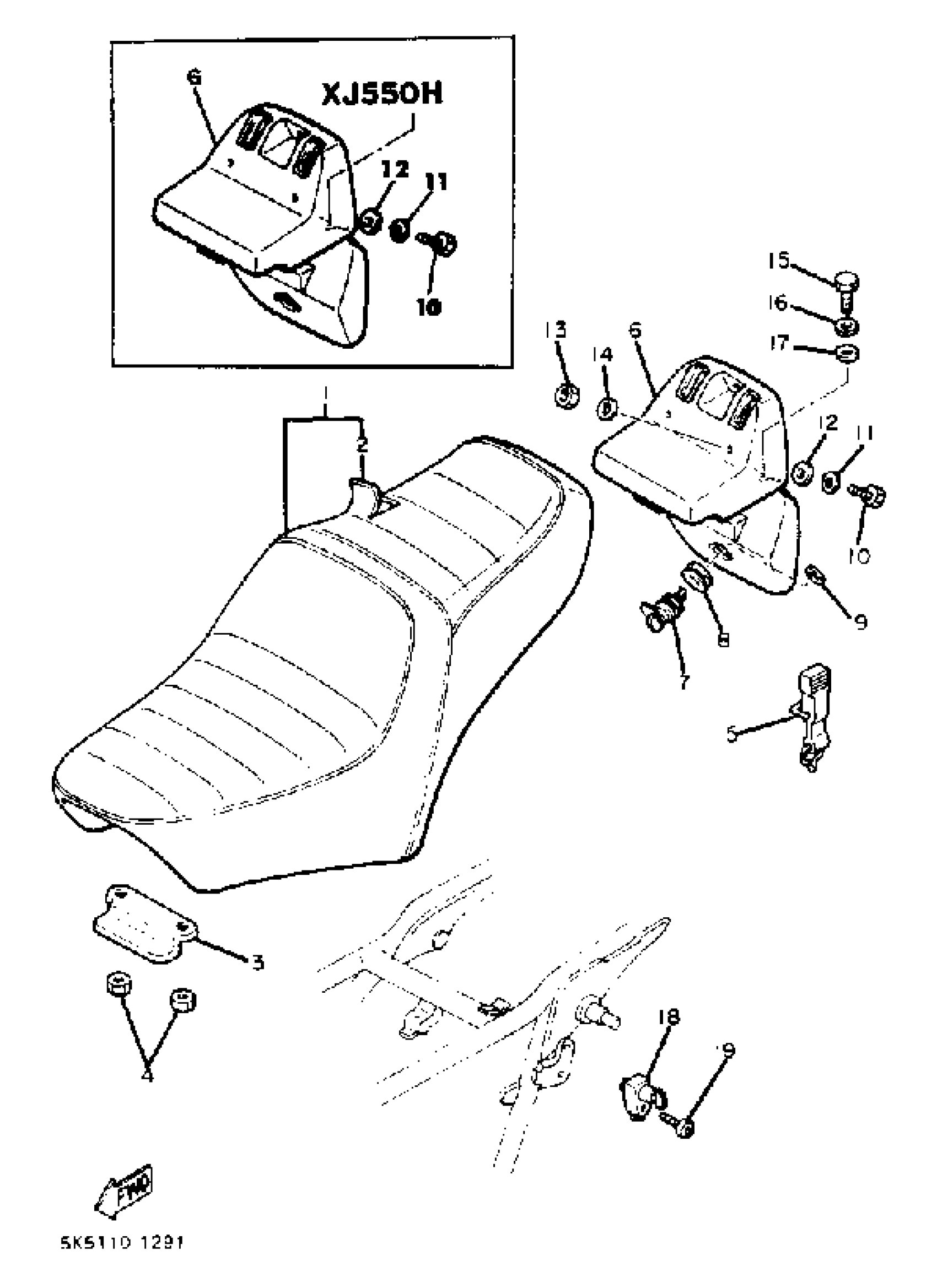

Yamaha XJ550H (XJ550H) 1981 SEAT XJ550H J K Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

5K5-W2472-00-00

Unavailable

2

. COVER, DOUBLE SEAT

5K5-24731-00-00

Unavailable

3

BRACKET, SEAT

2Y0-24748-00-00

Unavailable

4

NUT, FLANGE(7NB)

95780-06500-00

$2.60

5

HOOK

5K5-24798-00-00

Unavailable

6

BOX 1

5K5-2473R-00-00

Unavailable

7

SIDE COVER LOCK ASSY

5A8-21708-00-00

Unavailable

8

GROMMET (1E6)

90480-24186-00

$8.49

9

WASHER, PLATE (8L8)

90201-225A4-00

$9.49

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, SPRING

92995-06100-00

Unavailable

17

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

17

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

18

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

19

SCREW (3H1)

90149-06150-00

Unavailable
