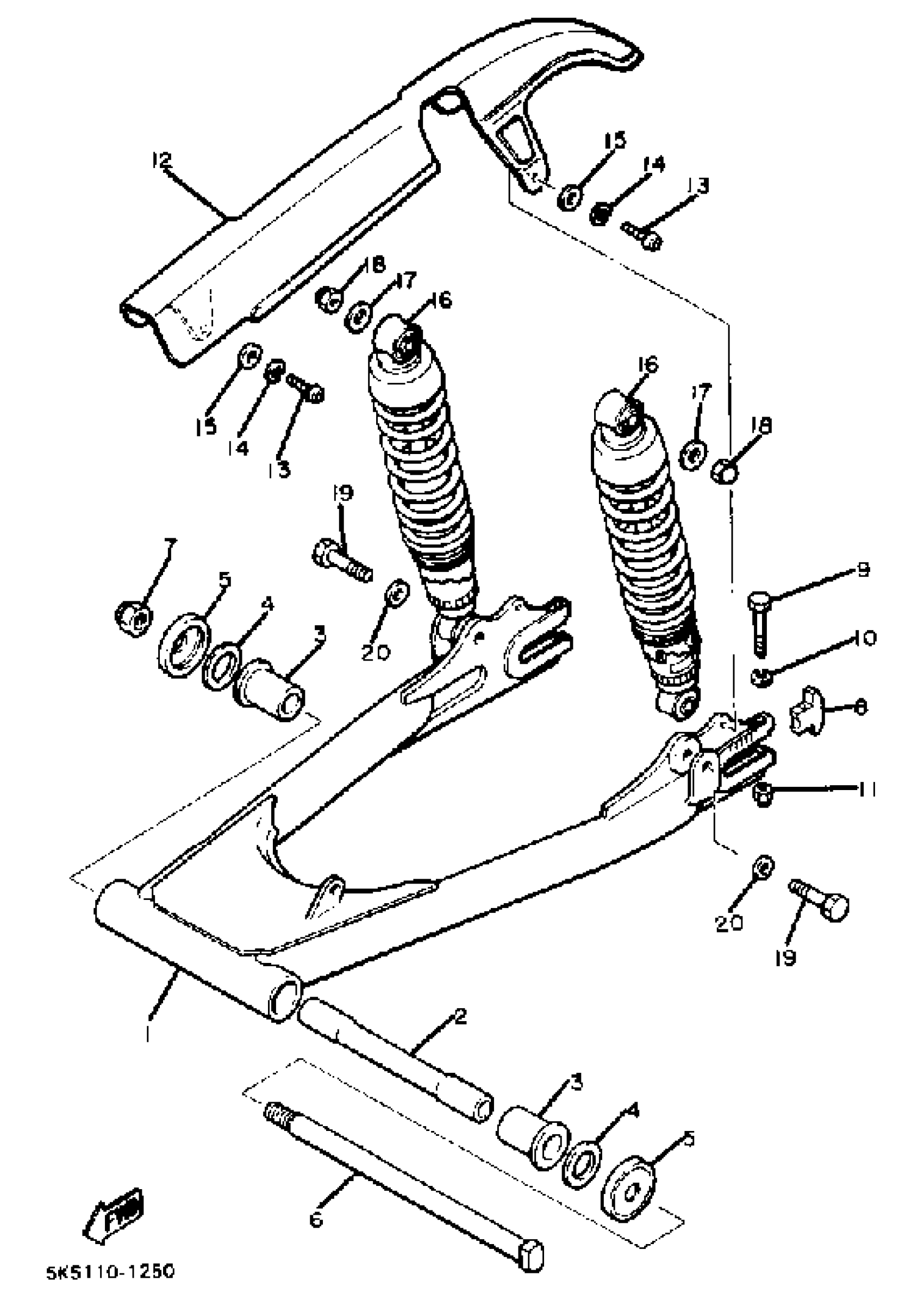

Yamaha XJ550H (XJ550H) 1981 REAR ARM SUSPENSION XJ550H J K Diagram

#

Description
Price

1

REAR ARM

4U8-22110-00-33

Unavailable

2

BUSH

341-22184-00-00

Unavailable

3

BUSH (5A9)

90386-22102-00

$40.99

4

SHIM,REAR ARM

240-22127-00-00

$6.99

5

COVER, THRUST

322-22128-01-00

$35.99

6

SHAFT, PIVOT

4G0-22141-00-00

Unavailable

7

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

8

BAR, COMPRESSION

4G0-22177-00-00

Unavailable

9

BOLT(6TC)

97027-06055-00

Unavailable

10

WASHER, SPRING

92907-06100-00

$4.25

11

NUT, NYLON

95707-06300-00

$3.50

12

CASE, CHAIN

5K5-22311-00-00

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

Unavailable

16

SHK/ABS ASSEMBLY, REAR

5K5-22210-00-00

Unavailable

17

WASHER PLATE 341222430000

90201-10142-00

Unavailable

18

NUT, CAP (371)

90176-10009-00

Unavailable

19

BOLT,DOME HEAD

90106-10052-00

Unavailable

20

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

20

WASHER, PLATE

(90201-10500-00)

Unavailable
