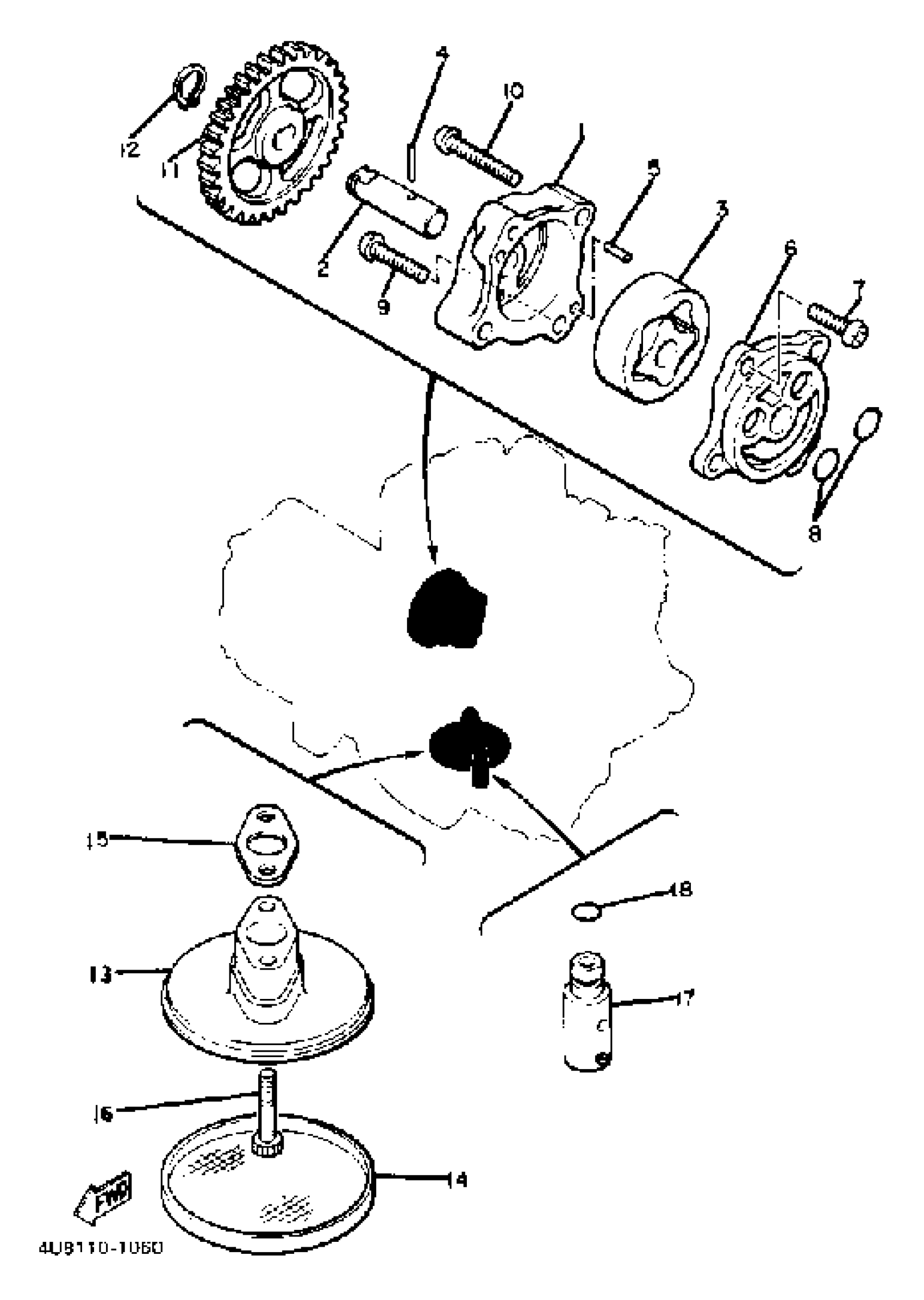

Yamaha XJ550H (XJ550H) 1981 OIL PUMP XJ550H J K Diagram

#

Description
Price

1

HOUSING, ROTOR

(4G0-13336-00-00)

Unavailable

2

SHAFT, PUMP

(4G0-13314-00-00)

Unavailable

3

ROTOR ASSEMBLY 1

4G0-13310-00-00

Unavailable

4

PIN,DOWEL

93603-17070-00

$4.14

5

PIN, DOWEL

93603-07073-00

$9.49

6

COVER, PUMP

4G0-13316-00-00

$32.99

7

SCREW, PAN

98507-06014-00

$8.49

8

O-RING (2H7)

93210-13361-00

$5.60

9

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

10

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

11

GEAR, PUMP DRIVEN

4EB-13325-00-00

Unavailable

12

CIRCLIP(24H)

99009-11400-00

$8.49

13

HOUSING, STRAINER

(4G0-13412-00-00)

Unavailable

14

STRAINER, OIL

4H7-13411-02-00

Unavailable

15

SEAL, OIL STRAINER

3YX-13415-00-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

17

RELIEF VALVE ASSY

11H-13490-00-00

Unavailable

18

O-RING (611)

93210-10096-00

Unavailable
