Description

Price

1

COVER, OIL ELEMENT

4G0-13447-00-00

Unavailable

2

ELEMENT, OIL CLEANER

1L9-13441-11-00

$9.99

3

GROMMET (1L9)

90480-23193-00

Unavailable

4

BALL, HALF

93501-02018-00

Unavailable

5

SPRING, COMPRESSION (1J7)

90501-12413-00

Unavailable

6

PIN,SPRING

91690-20018-00

Unavailable

7

BY-PASS VALVE ASSY

1L9-13340-01-00

Unavailable

8

O-RING (26H)

93210-16629-00

$7.49

9

O-RING(1KF)

93210-87723-00

Unavailable

10

WASHER, PLATE (1L9)

90201-21608-00

$8.49

11

SPRING, COMPRESSION (1L9)

90501-20422-00

$8.49

12

COVER,STRAINER

4G0-13417-03-00

Unavailable

13

GASKET, STRAINER COVER

4BR-13414-00-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

15

PLUG, STRAIGHT SCREW

90340-14004-00

$16.99

16

GASKET

214-11198-01-00

Unavailable

17

BOLT, UNION

90401-20089-00

Unavailable

18

WASHER, PLATE (888)

90201-20279-00

Unavailable

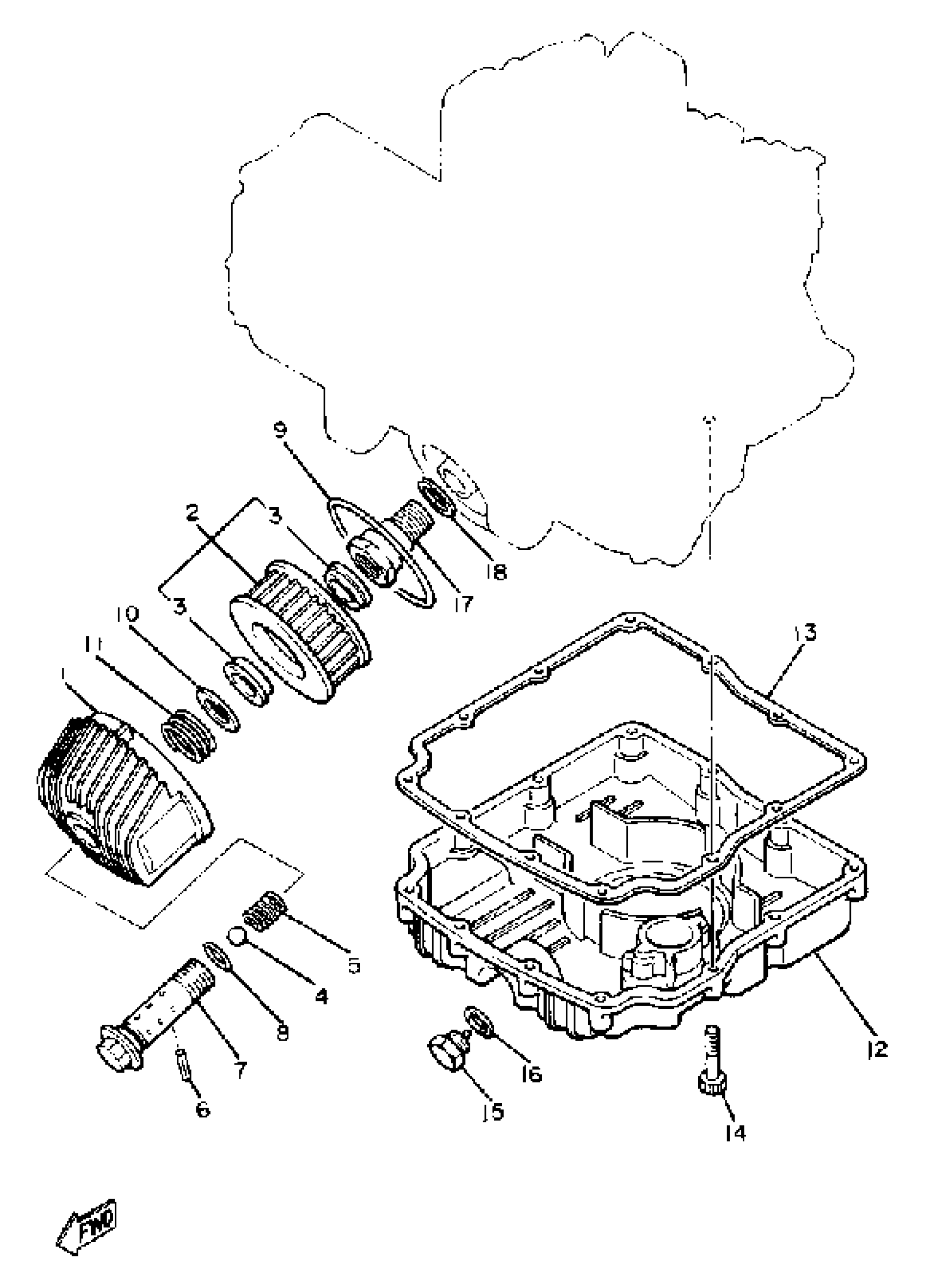

Yamaha XJ550H (XJ550H) 1981 OIL CLEANER XJ550H Diagram

COVER, OIL ELEMENT

ELEMENT, OIL CLEANER

GROMMET (1L9)

BALL, HALF

SPRING, COMPRESSION (1J7)

PIN,SPRING

BY-PASS VALVE ASSY

O-RING (26H)

O-RING(1KF)

WASHER, PLATE (1L9)

SPRING, COMPRESSION (1L9)

COVER,STRAINER

GASKET, STRAINER COVER

BOLT, HEXAGON SOCKET HEAD(1VJ)

PLUG, STRAIGHT SCREW

GASKET

BOLT, UNION

WASHER, PLATE (888)
