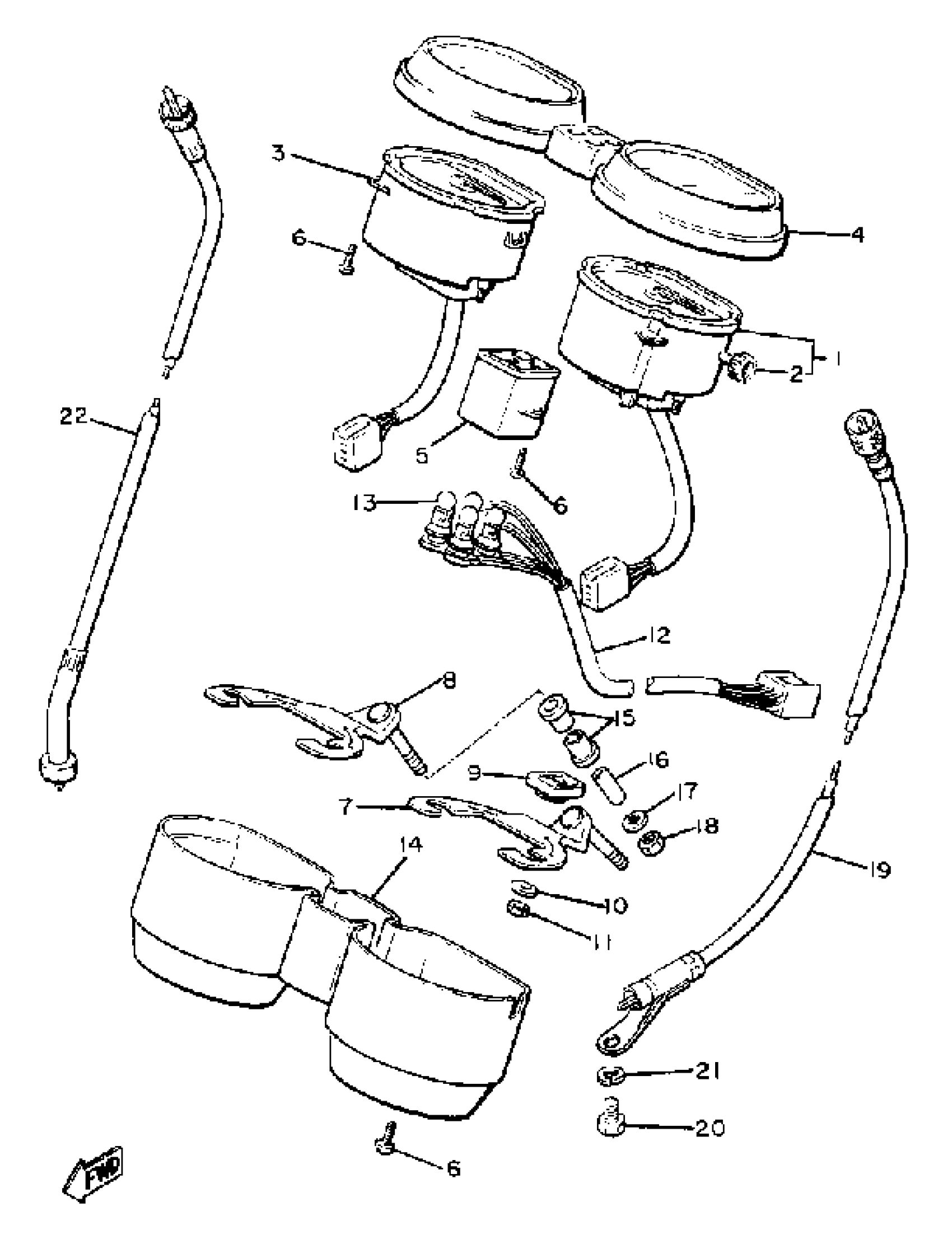

Yamaha XJ550H (XJ550H) 1981 METER XJ550H Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

5K5-83570-A0-00

Unavailable

2

. KNOB, TRIP METER

4U8-83578-00-00

Unavailable

3

TACHOMETER ASSEMBLY

5K5-83540-00-00

Unavailable

4

COVER, METER

4H7-83559-A0-00

Unavailable

5

BODY, PILOT LIGHT

4H7-83587-00-00

Unavailable

6

SCREW, TAPPING

4H7-83616-00-00

Unavailable

7

BRACKET, METER

5K5-83519-00-00

Unavailable

8

BRACKET, TACHOMETER

5K5-83545-00-00

Unavailable

9

DAMPER

4H7-83523-00-00

Unavailable

10

WASHER PLATE 803835240000

90201-05032-00

Unavailable

11

NUT, HEXAGON (663)

95380-05600-00

$8.49

12

SOCKET CORD ASSEMBLY

5K5-83509-00-00

Unavailable

13

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

14

COVER, METER 2

4H7-83579-00-00

Unavailable

15

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

16

COLLAR (877)

90387-06249-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

SPEEDOMETER CABLE

5K5-83550-00-00

Unavailable

20

SCREW, HEXAGON

90153-06004-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

TACHOMETER CABLE

4H7-83560-00-00

Unavailable
