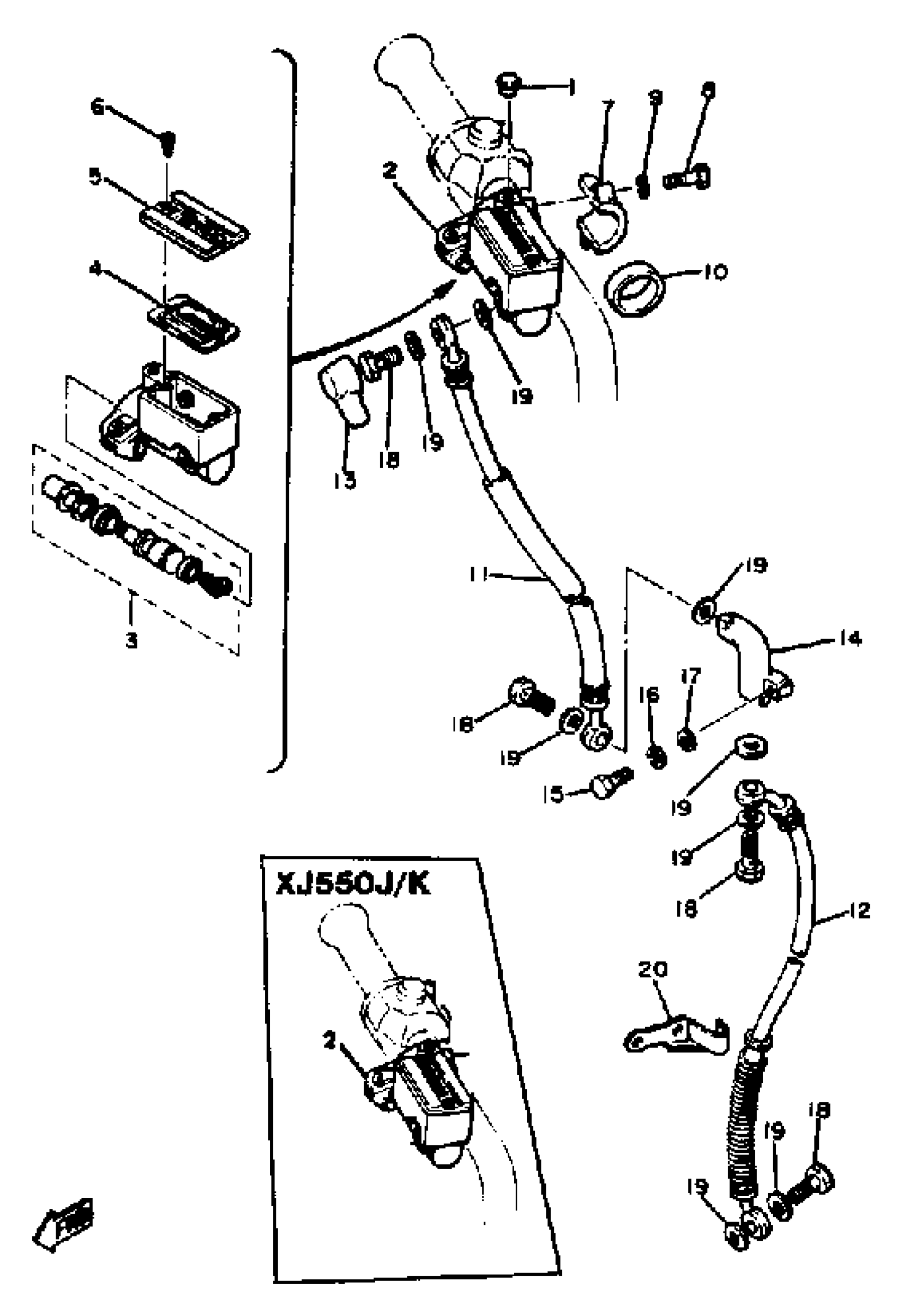

Yamaha XJ550H (XJ550H) 1981 FRONT MASTER CYLINDER XJ550H J K Diagram

#

Description
Price

1

PLUG (341-26329-00)

90338-09012-00

$6.76

2

MASTER CYLINDER SUB ASSY

3TB-25870-00-00

$251.38

3

CYLINDER KIT, MASTER

23L-W0041-00-00

$116.44

4

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.32

5

CAP, RESERVOIR

4H7-25852-00-00

$33.30

6

SCREW, FLAT

98707-04010-00

$5.76

6

SCREW, FLAT

98707-04012-00

$1.34

7

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$2.78

9

WASHER, SPRING

92907-06100-00

$0.98

10

COLLAR (2H7)

90387-22660-00

$7.24

11

HOSE, BRAKE 1

5K5-25872-01-00

Unavailable

12

HOSE,BRAKE 2

5K5-25873-01-00

Unavailable

13

BOOT, MASTER CYLINDER

4L0-25862-01-00

$5.96

14

JOINT

1J7-25885-01-00

Unavailable

15

BOLT, HEXAGON

97017-06025-00

$2.78

16

WASHER, SPRING

92995-06100-00

$2.95

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

HOLDER, BRKE HOSE 2

1J3-25876-02-00

Unavailable
