ELECTRICAL 1 XJ550H J K

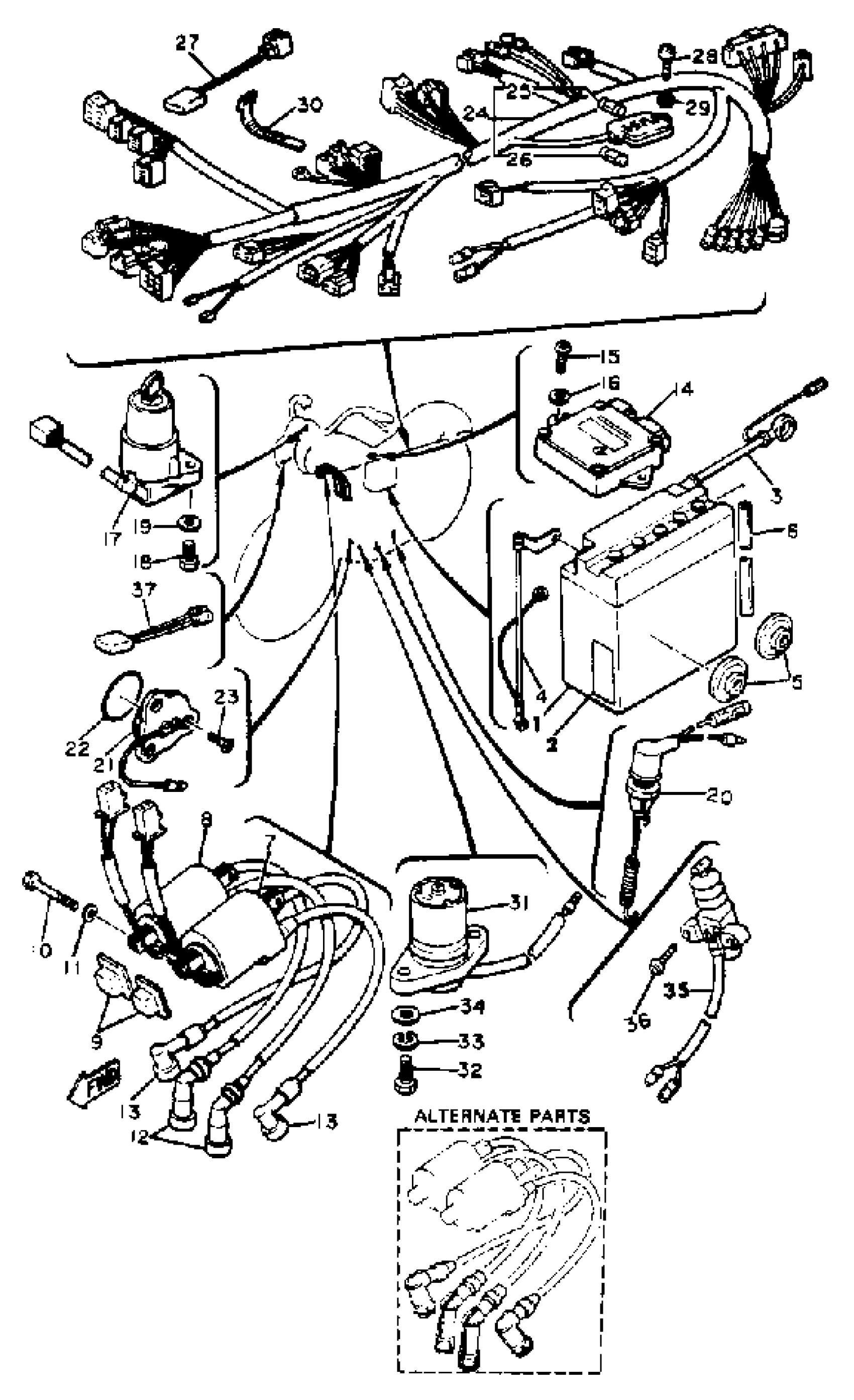

Yamaha XJ550H (XJ550H) 1981 ELECTRICAL 1 XJ550H J K Diagram
#
1
12N12A-4A-1 YUASA BATTERY
12N-12A4A-1Y-00
Unavailable
2
LABEL, BATTERY
40A-82141-G0-00
Unavailable
3
WIRE, PLUS LEAD
4G0-82115-00-00
Unavailable
4
WIRE, MINUS LEAD
4G0-82116-00-00
Unavailable
9
DAMPER, IGNITION COIL
4U8-82317-00-00
Unavailable
11
WASHER, SPRING
92995-06100-00
Unavailable
14
IGNITOR UNIT ASSEMBLY 1
4U8-82305-10-00
Unavailable
15
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
16
WASHER, PLAIN (646)
92990-06600-00
Unavailable
17
MAIN SWITCH STEERING LOCK
3JV-82501-00-00
Unavailable
18
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
19
WASHER, PLAIN (646)
92990-06600-00
Unavailable
20
STOP SWITCH ASSY
2F1-82530-03-00
Unavailable
21
NEUTRAL SWITCH ASSY
1L9-82540-00-00
Unavailable
22
O-RING (371)
93210-29196-00
Unavailable
23
SCREW, FLAT
98707-05012-00
Unavailable
24
WIRE HARNESS ASSEMBLY
5K5-82590-50-00
Unavailable
25
FUSE
1A0-82151-00-00
Unavailable
26
FUSE
1A0-82161-00-00
Unavailable
27
RECTIFIER 2
4U8-81980-M0-00
Unavailable
28
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
29
WASHER, PLAIN (646)
92990-06600-00
Unavailable
30
BAND, SWITCH CORD
437-83936-11-00
Unavailable
31
OIL LEVEL GAUGE ASSEMBLY
4U8-85720-00-00
Unavailable
32
BOLT, HEXAGON
97017-06020-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
34
WASHER, PLAIN (646)
92990-06600-00
Unavailable
35
SWITCH, SIDE STAND
4DH-82566-00-00
Unavailable
36
SCREW, FLAT
98707-05016-00
Unavailable
37
WIRE,LEAD
49A-82541-00-00
Unavailable
38
PLUG CAP ASSEMBLY
4U8-82370-21-00
Unavailable
39
PLUG CAP ASSEMBLY
(4U8-82370-31-00)
Unavailable
