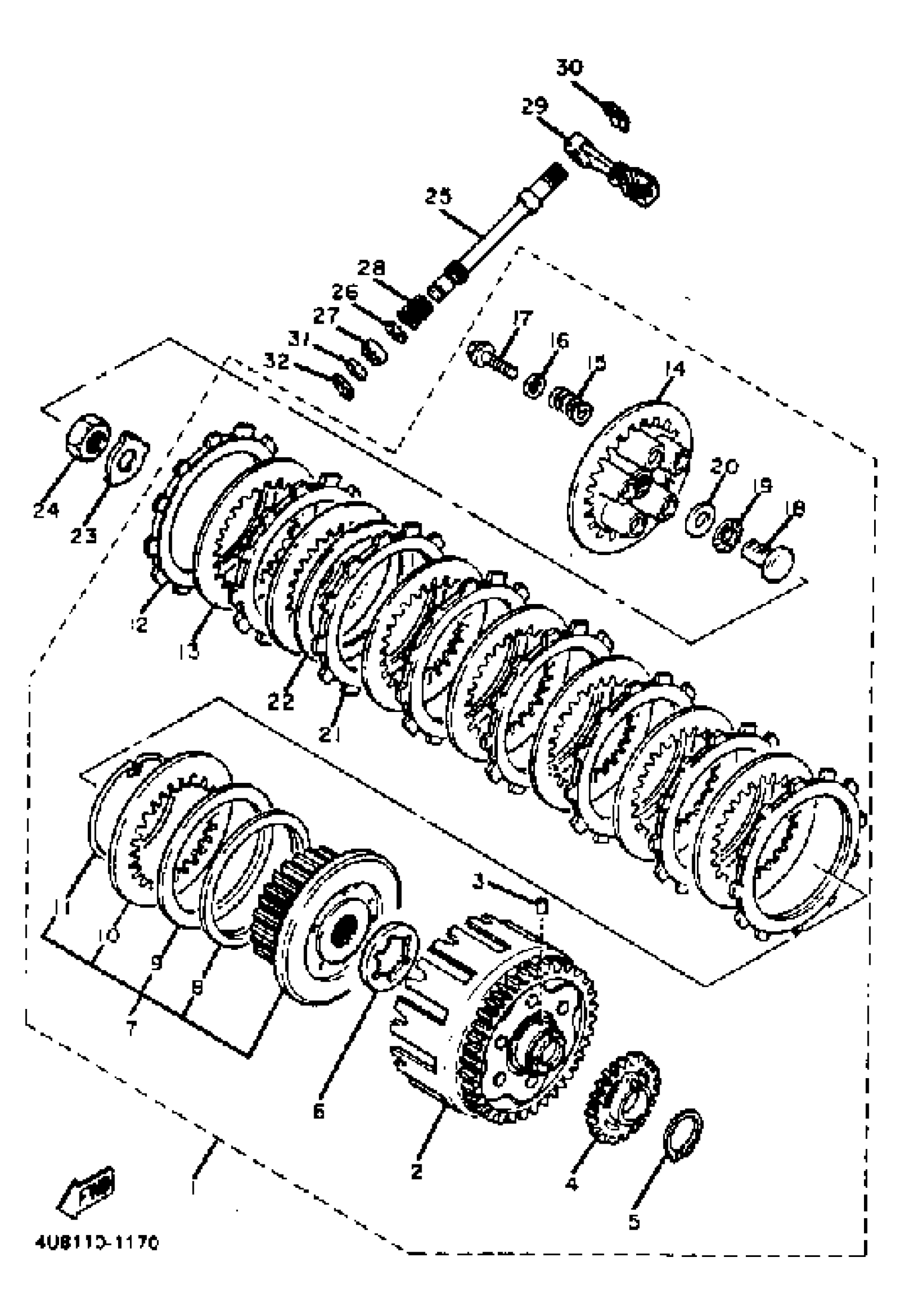

Yamaha XJ550H (XJ550H) 1981 CLUTCH XJ550H J K Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(4U8-16300-01-00)

Unavailable

2

PRIMARY DRIVEN GER COMP.

4HK-16170-00-00

Unavailable

3

PIN, DOWEL (8G8)

93605-10108-00

$8.49

4

GEAR, PUMP DRIVE

4G0-13324-09-00

Unavailable

5

CIRCLIP(N02)

99009-40400-00

$3.35

6

. PLATE, THRUST 1

3Y1-16154-00-00

Unavailable

7

. CLUTCH BOSS ASSY

4H7-16370-00-00

Unavailable

8

PLATE, SEAT

1J7-16384-00-00

Unavailable

9

.. SPRING, CLUTCH BOSS

1J7-16383-01-00

Unavailable

10

PLATE, CLUTCH 1

168-16324-10-00

Unavailable

11

RING, CLUTCH BOSS

1J7-16385-00-00

Unavailable

12

PLATE, FRICTION

4H7-16321-02-00

$23.99

13

PLATE, CLUTCH 2

371-16325-10-00

Unavailable

14

. PLATE, PRESSURE 1

4H7-16351-00-00

Unavailable

15

SPRING (583 CLUTCH)

90501-23391-00

$7.49

16

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

17

BOLT, FLANGE

95822-06025-00

Unavailable

18

. ROD, PUSH 1

4H7-16356-01-00

Unavailable

19

BEARING, THRUST (713)

93340-21505-00

Unavailable

20

WASHER, PLATE (5G3)

90201-154E9-00

Unavailable

21

PLATE, FRICTION

5Y1-16331-01-00

Unavailable

22

SPRING, CLUTCH BOSS

5Y1-16383-00-00

Unavailable

23

WASHER, LOCK (34L)

90215-20231-00

Unavailable

24

NUT (34L)

90170-20327-00

Unavailable

25

AXLE, PUSH LEVER

4G0-16382-00-00

Unavailable

26

WASHER (692)

90201-12M34-00

Unavailable

27

OIL SEAL (4G0)

93102-12224-00

Unavailable

28

SPRING, TORSION

90508-16459-00

Unavailable

29

PUSH LEVER ASSY

3YR-16340-00-00

Unavailable

30

CIRCLIP(J51)

99080-09600-00

Unavailable

31

WASHER, PLATE

90201-09572-00

Unavailable

32

CIRCLIP(2R6)

99001-08600-00

Unavailable
