- XJ550H (XJ550H) 1981
CARBURETOR XJ550H J K

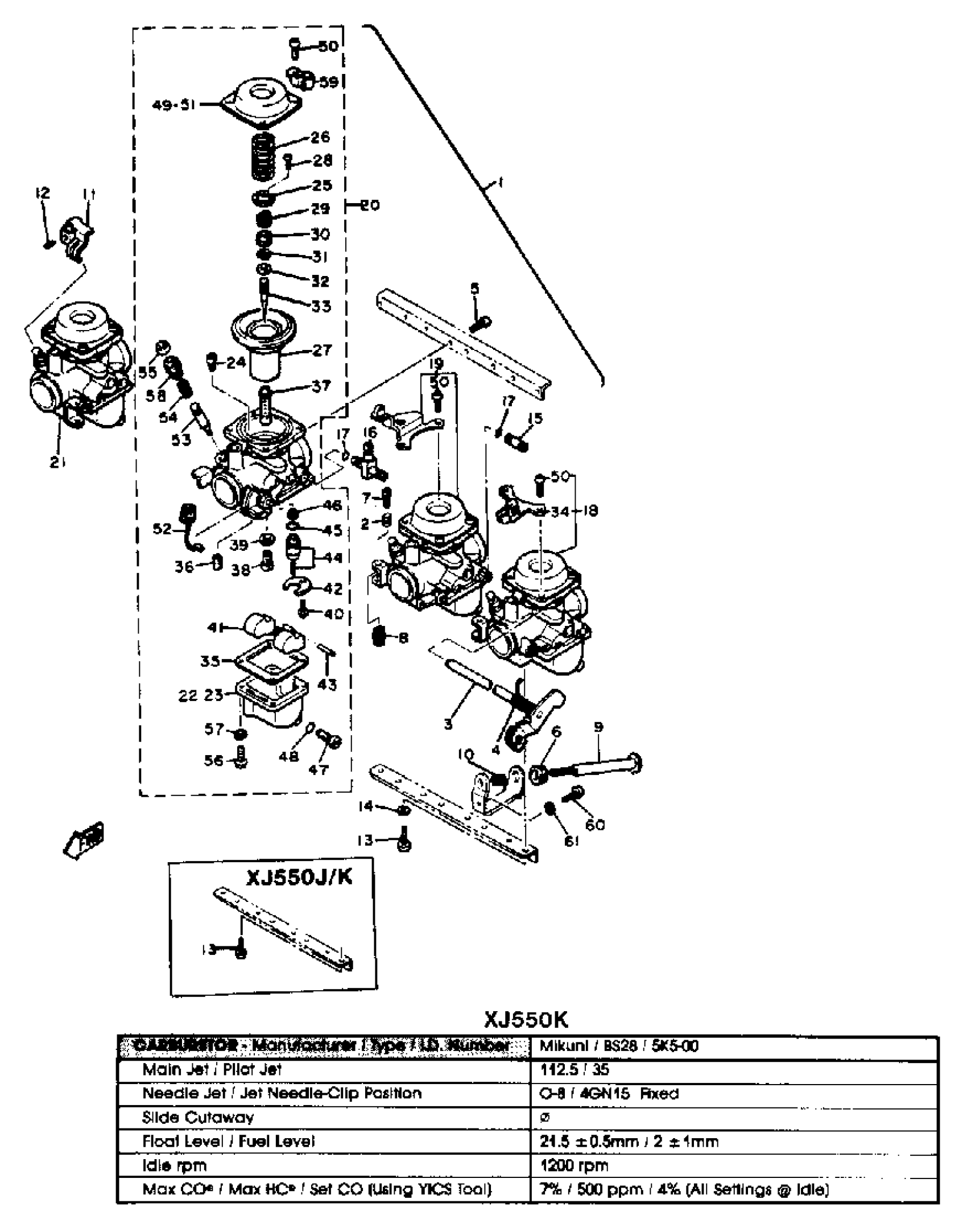

Yamaha XJ550H (XJ550H) 1981 CARBURETOR XJ550H J K Diagram
#
1
ERROR
(5K5-14900-00-00)
Unavailable
2
. SPRING, THROTTLE STOP
3F7-14133-00-00
Unavailable
3
LEVER, STARTER 1
(4G0-14975-00-00)
Unavailable
4
SPRING
(4G0-14938-00-00)
Unavailable
5
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
6
. BUSH
4G0-14998-00-00
Unavailable
7
STOP SCREW SET
(31A-1490K-00-00)
Unavailable
8
. SPRING, AIR ADJUSTING
137-14134-00-00
Unavailable
9
. THROTTLE SCREW SET
31A-14103-00-00
Unavailable
10
. SPRING, THROTTLE STOP
143-14133-00-00
Unavailable
11
. LEVER, STARTER
4G0-14905-00-00
Unavailable
12
. SCREW, STARTER LEVER 2
584-14991-00-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
15
. PIPE, STARTER CON
4G0-14988-00-00
Unavailable
16
PIPE, STARTER CONNECTING
4U8-14988-00-00
Unavailable
17
O-RING
36Y-14147-00-00
Unavailable
18
CARBURETOR ASSEMBLY 1
(5K5-14901-00-00)
Unavailable
19
CARBURETOR ASSEMBLY 2
(5K5-14902-00-00)
Unavailable
20
CARBURETOR ASSEMBLY 3
(5K5-14903-00-00)
Unavailable
21
. CARBURETOR ASSEMBLY 4
5K5-14904-00-00
Unavailable
22
.. BODY, FLOAT CHAMBER
4G0-14981-07-00
Unavailable
23
HOLDER
(4G0-14982-07-00)
Unavailable
24
JET, MAIN (#165)
3G2-14231-33-00
Unavailable
25
SEAT, SPRING
(4U8-14936-00-00)
Unavailable
26
.. SPRING, DIAPHRAGM
4U8-14933-00-00
Unavailable
27
DIAPHRAGM ASSY
4G0-14940-00-00
Unavailable
28
SCREW, PAN HEAD
(97802-03008-00)
Unavailable
29
SPRING, NEEDLE
3F7-14589-00-00
Unavailable
30
. WASHER
2N6-14227-01-00
Unavailable
31
CLIP
3FA-14137-00-00
Unavailable
32
RING
(5K5-14918-00-00)
Unavailable
33
.. NEEDLE
443-14116-11-00
Unavailable
34
.. BRACKET, THROTTLE 1
4G0-14926-00-00
Unavailable
35
GASKET, FLOAT CHAMBER
46X-14984-00-00
Unavailable
36
JET, PILOT (# 35)
4G0-14142-35-A0
Unavailable
37
NOZZLE, MAIN
(4U8-14941-38-00)
Unavailable
38
JET,MAIN #112.5
620-1423A-73-00
Unavailable
39
WASHER,MAIN JET
137-14153-00-00
Unavailable
40
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
41
FLOAT
4G0-14985-00-00
Unavailable
42
. PLATE
2H0-14146-00-00
Unavailable
43
PIN, FLOAT
537-14186-00-00
Unavailable
44
NEEDLE VALVE SET
25G-14107-20-00
Unavailable
45
O-RING
8F2-14147-00-00
Unavailable
46
NET, FILTER
1J7-14994-00-00
Unavailable
47
SCREW
2L1-14191-00-00
Unavailable
48
O-RING
214-14147-00-00
Unavailable
49
.. COVER, DIAPHRAGM
4G0-14958-00-00
Unavailable
50
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
51
.. COVER, DIAPHRAGM
4U8-14958-00-00
Unavailable
52
. CABLE
4G0-14130-00-00
Unavailable
53
. PLUNGER, STARTER
4G0-14171-00-00
Unavailable
54
. SPRING, PLUNGER
256-14135-00-00
Unavailable
55
.. COVER, PLUNGER CAP
306-14173-00-00
Unavailable
56
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
57
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
58
.. CAP, PLUNGER
584-14176-00-00
Unavailable
59
CLIP, PIPE
(4G0-14139-00-00)
Unavailable
60
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
61
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
