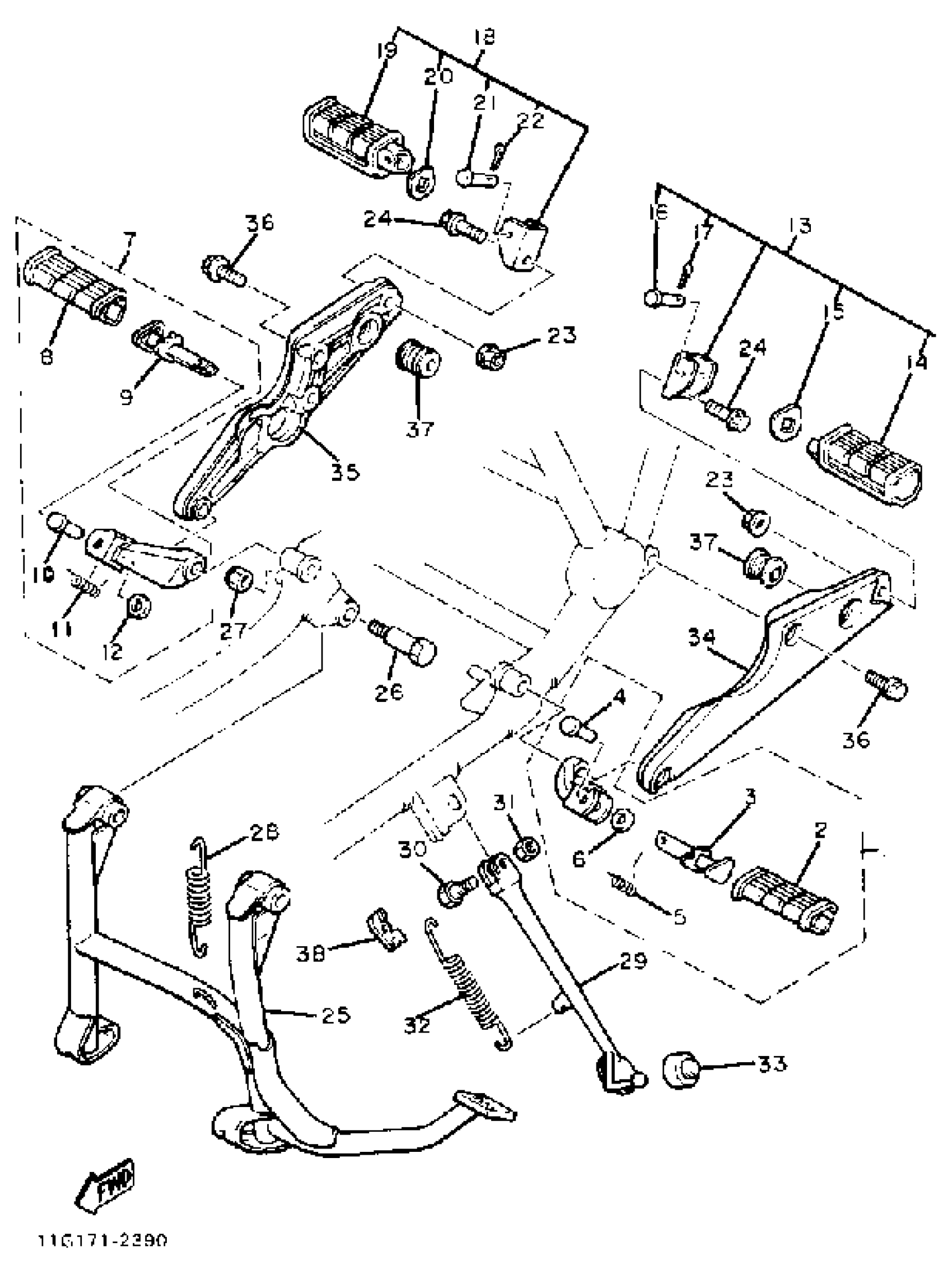

Yamaha XJ1100J (XJ1100J) 1982 STAND FOOTREST Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY L

10M-27410-00-00

Unavailable

2

COVER, FOOTREST

4X7-27413-00-00

$33.99

3

WASHER, FOOTREST

4X7-27417-00-00

Unavailable

4

PIN (214-27418-00)

90243-08006-00

$12.49

5

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

6

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

7

FRT FOOTREST ASSEMBLY R

10M-27420-00-00

Unavailable

8

COVER, FOOTREST

4X7-27413-00-00

$33.99

9

WASHER, FOOTREST

4X7-27417-00-00

Unavailable

10

PIN (214-27418-00)

90243-08006-00

$12.49

11

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

12

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

13

RR FOOTREST ASSEMBLY 1

10M-27430-00-00

Unavailable

14

. COVER, REAR FOOTREST

3H5-27433-00-00

Unavailable

15

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

16

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

17

PIN, COTTER

91490-20025-00

Unavailable

18

RR FOOTREST ASSEMBLY 2

10M-27440-00-00

Unavailable

19

. COVER, REAR FOOTREST

3H5-27444-00-00

Unavailable

20

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

21

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable

23

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

24

BOLT, FLANGE

95817-10035-00

Unavailable

25

STAND, MAIN

3H3-27111-01-00

Unavailable

26

BOLT

90109-10440-00

Unavailable

27

NUT, U

95617-10100-00

Unavailable

28

SPRING, TENSION

90506-45199-00

Unavailable

29

STAND, SIDE

(3H3-27311-00-00)

Unavailable

30

BOLT

90109-10473-00

Unavailable

31

NUT (682)

95380-10700-00

Unavailable

32

SPRING, TENSION (5N8)

90506-29266-00

Unavailable

33

STOPPER, MAIN STAND

1A0-27114-00-00

Unavailable

34

BRACKET 2

3H3-27442-01-00

Unavailable

35

BRACKET 3

3H3-27443-01-00

Unavailable

36

BOLT, WASHER BASED (2H9)

90105-10115-00

Unavailable

37

DAMPER, FOOTREST

3H3-27414-00-00

Unavailable

38

LINK, SIDE STAND

(10M-27315-00-00)

Unavailable
