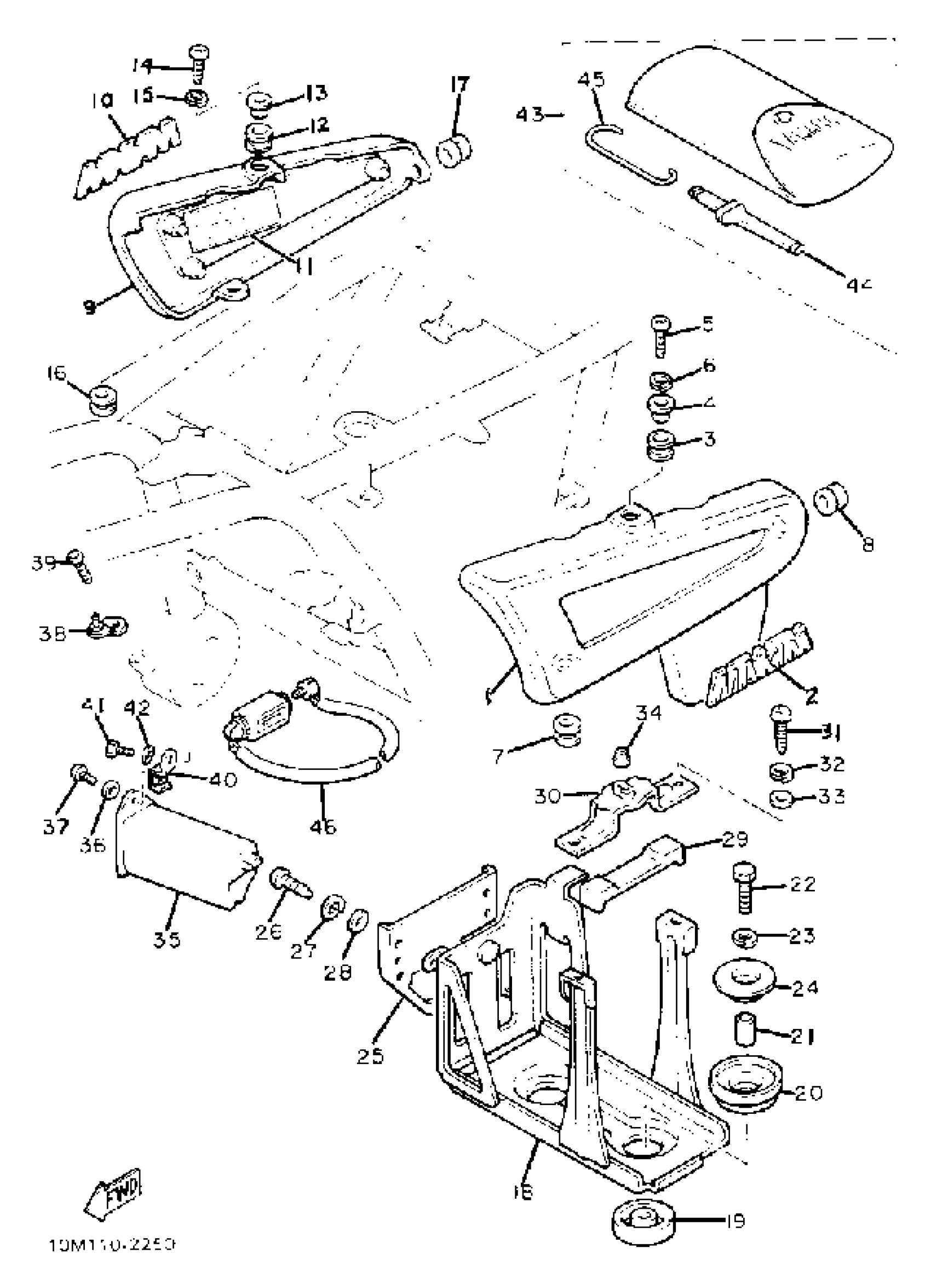

Yamaha XJ1100J (XJ1100J) 1982 SIDE COVER TOOL Diagram

#

Description
Price

1

SIDE COVER ASSEMBLY 1

10M-21710-00-6G

Unavailable

1

SIDE COVER ASSEMBLY 1

10M-21710-00-7J

Unavailable

2

EMBLEM 1

15R-21781-00-00

Unavailable

3

GROMMET (5H0)

90480-10297-00

$7.49

4

COLLAR (838-84757-00)

90387-06024-00

$11.49

5

SCREW PAN HEAD

98580-06020-00

$8.49

6

WASHER, SPRING

92995-06100-00

Unavailable

7

GROMMET (583 SIDE COVER)

90480-01176-00

$11.49

8

GROMMET (2H7)

90480-11224-00

$3.45

9

SIDE COVER ASSEMBLY 2

(10M-21720-00-6G)

Unavailable

9

SIDE COVER ASSEMBLY 2

(10M-21720-00-7J)

Unavailable

10

EMBLEM 1

15R-21781-00-00

Unavailable

11

PLATE, SPEC

(10M-21683-01-00)

Unavailable

12

GROMMET (5H0)

90480-10297-00

$7.49

13

COLLAR (838-84757-00)

90387-06024-00

$11.49

14

SCREW PAN HEAD

98580-06020-00

$8.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

GROMMET (583 SIDE COVER)

90480-01176-00

$11.49

17

GROMMET (2H7)

90480-11224-00

$3.45

18

BOX

10M-21170-01-00

Unavailable

19

DAMPER

(10M-21746-01-00)

Unavailable

20

DAMPER

(10M-21747-00-00)

Unavailable

21

COLLAR

90387-06088-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

GROMMET

(90480-17218-00)

Unavailable

25

PLATE 1

(10M-21543-01-00)

Unavailable

26

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

27

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

28

WASHER, PLAIN (646)

92990-05600-00

Unavailable

29

DAMPER, LOCATING 1

10M-21778-00-00

Unavailable

30

BOX, BATTERY

10M-2177G-00-00

Unavailable

31

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable

34

GROMMET

(90480-12292-00)

Unavailable

35

BOX

4R0-21258-00-00

Unavailable

36

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

37

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

38

STAY, LOCK

4R0-2175H-01-00

Unavailable

39

BOLT,SOCKET

91317-06012-00

Unavailable

40

STAY, SIDE COVER 1

(4R0-2172E-00-00)

Unavailable

41

BOLT, HEXAGON

97017-06012-00

Unavailable

42

WASHER, SPRING

92907-06100-00

Unavailable

43

TOOL KIT

2H7-W2810-00-00

Unavailable

44

. GAUGE, OIL LEVEL

2H7-2815A-00-00

Unavailable

45

WIRE, HOOK

3H3-2814A-00-00

Unavailable

46

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable
