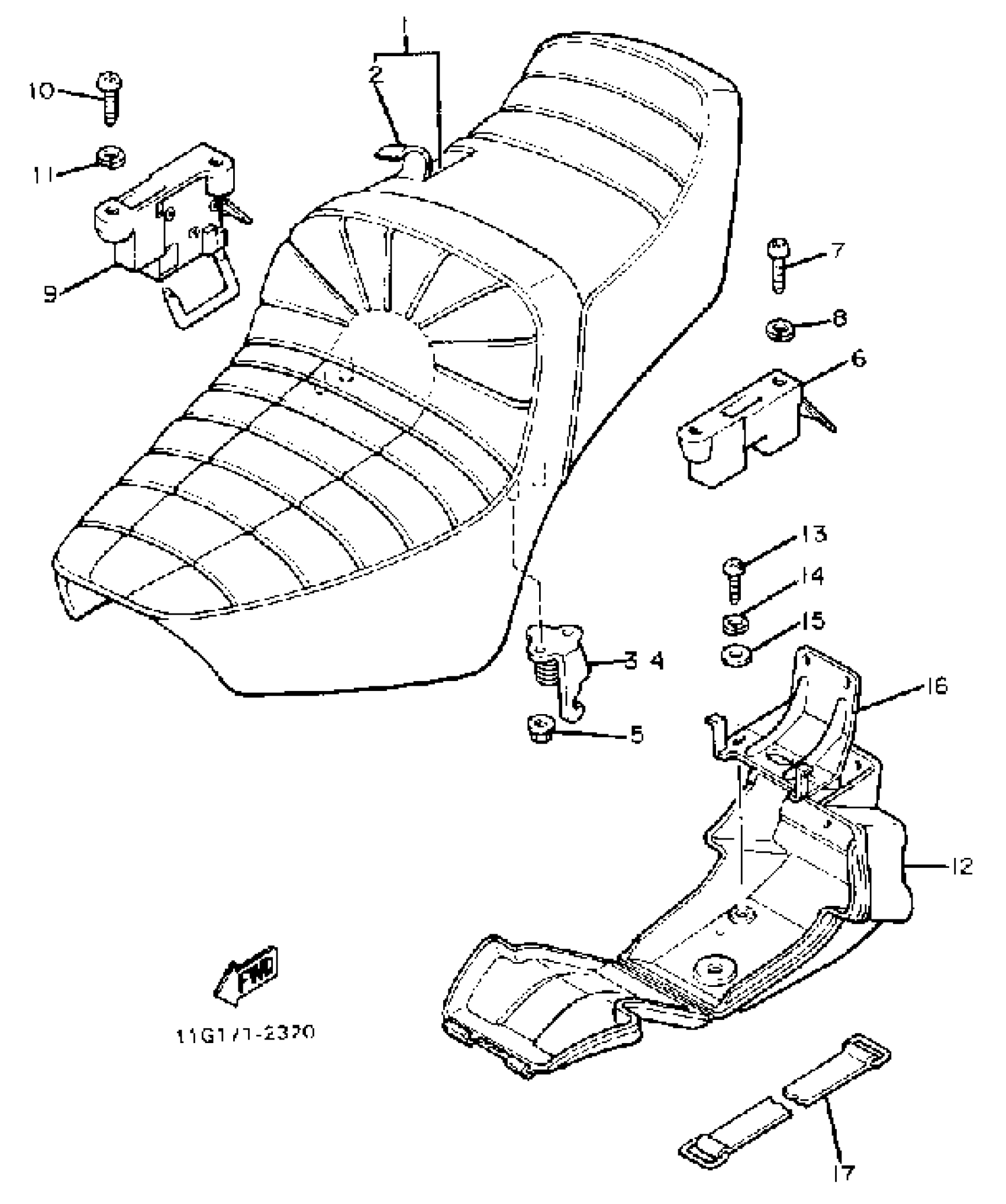

Yamaha XJ1100J (XJ1100J) 1982 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSEMBLY

10M-W2472-00-00

Unavailable

2

. COVER, DOUBLE SEAT

10M-24731-00-00

Unavailable

3

BRACKET, SEAT

10M-24728-00-00

Unavailable

4

BRACKET, SEAT

10M-24738-00-00

Unavailable

5

NUT, FLANGE(7NB)

95780-06500-00

$2.60

6

SEAT LEVER ASSEMBLY

4L0-24760-00-00

Unavailable

7

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

SEAT LOCK ASSEMBLY

4L0-24705-00-00

Unavailable

10

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

11

WASHER, SPRING

92995-06100-00

Unavailable

12

BOX 1

10M-2473R-00-00

Unavailable

13

SCREW, PAN

98507-06014-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE

90201-06020-00

$9.49

16

BRACKET, SEAT LVR 1

10M-2475H-00-00

Unavailable

17

BAND, BATTERY

26L-82131-00-00

Unavailable
