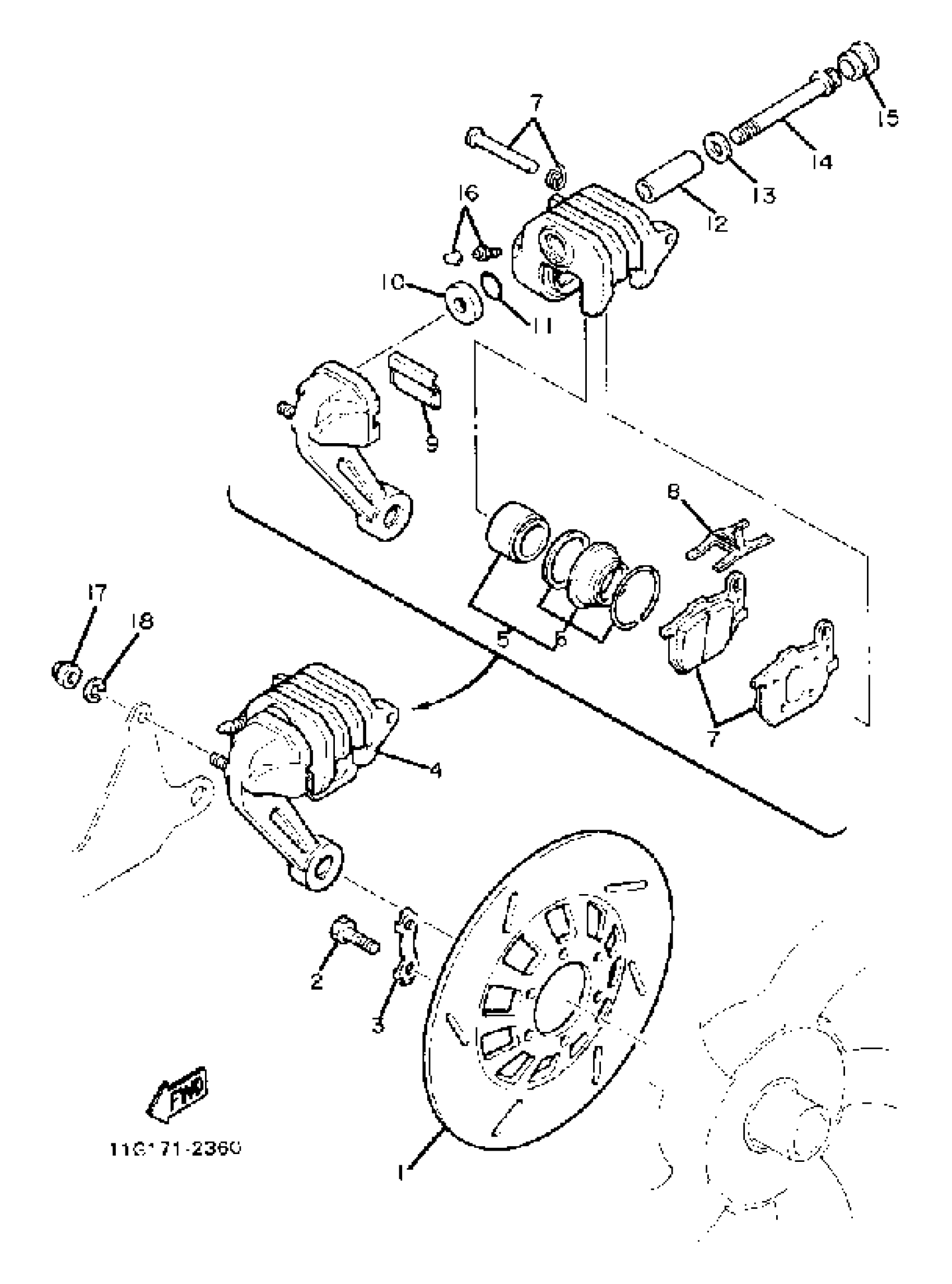

Yamaha XJ1100J (XJ1100J) 1982 REAR BRAKE CALIPER Diagram

#

Description

Price

1

DISC, BRAKE

(10M-25831-50-00)

Unavailable

2

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

3

WASHER, LOCK

3H5-25834-00-00

Unavailable

4

CALIPER ASSEMBLY

4W1-25810-50-00

Unavailable

5

. PISTON ASSEMBLY, CALIPER

2G2-W0057-00-00

Unavailable

6

CALIPER SEAL KIT

2G2-W0047-03-00

$40.99

7

BRK PAD KIT

4W1-W0046-09-00

Unavailable

8

. SUPPORT, PAD

2G2-25919-00-00

Unavailable

9

. RETAINER, CALIPER

2G2-25849-01-00

Unavailable

10

WASHER

(4W1-25922-50-00)

Unavailable

11

O-RING

(4W1-25918-50-00)

Unavailable

12

SLEEVE, CALIPER

(4W1-25838-50-00)

Unavailable

13

WASHER

(4W1-25923-50-00)

Unavailable

14

. BOLT 1

4W1-25821-50-00

Unavailable

15

PLUG

(4W1-25916-50-00)

Unavailable

16

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

17

NUT, CROWN

95303-08800-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
