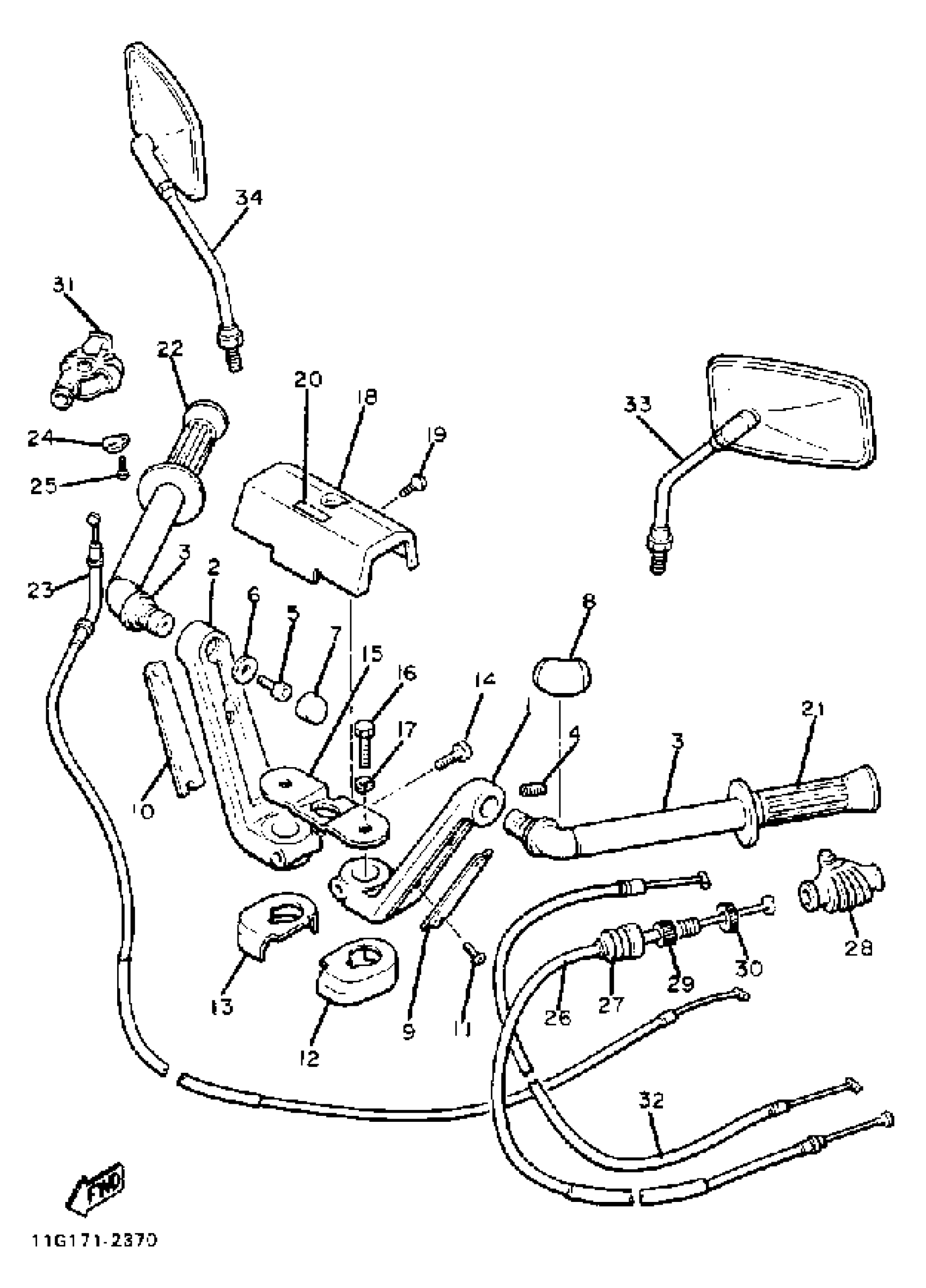

Yamaha XJ1100J (XJ1100J) 1982 HANDLEBAR CABLE Diagram

#

Description

Price

1

HANDLEBAR LH (L.H)

10M-26121-00-00

Unavailable

2

HANDLEBAR RH (R.H)

10M-26122-00-00

Unavailable

3

BAR, HANDLE

10M-26112-00-00

Unavailable

4

BOLT, HEX SKT HEAD

90110-06050-00

Unavailable

5

BOLT,SOCKET HEAD

91314-06012-00

$8.49

6

WASHER, PLATE(663)

90201-06416-00

$5.60

7

CAP

10M-26133-00-00

Unavailable

8

BOOT, HANDLEBAR

10M-26147-00-00

Unavailable

9

COVER, HDLBR LWR 1

10M-26144-00-00

Unavailable

10

COVER, HDLBR LWR 2

10M-26146-00-00

Unavailable

11

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

12

COVER, HDLBR UPR 1

(10M-26143-00-00)

Unavailable

13

COVER, HDLBR UPR 2

10M-26145-00-00

Unavailable

14

BOLT,SOCKET

91314-08040-00

$8.49

15

WASHER

(10M-26129-00-00)

Unavailable

16

BOLT, HEXAGON

97013-08020-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

COVER, UPPER

10M-26213-00-00

Unavailable

19

SCREW, FLAT

98707-05010-00

Unavailable

20

EMBLEM

10M-26219-00-00

Unavailable

21

GRIP LH

5G2-26241-10-00

Unavailable

22

GRIP ASSEMBLY RH

5G2-26240-10-00

Unavailable

23

CABLE, THROTTLE 1

10M-26311-00-00

Unavailable

24

HOLDER

5H0-26393-00-00

Unavailable

25

GASKET, EXHAUST

98507-05008-00

Unavailable

26

CABLE, CLUTCH

10M-26335-00-00

Unavailable

27

BOOT, WIRE

1E6-26342-00-00

Unavailable

28

COVER, HANDLE LEVER

11H-26372-00-00

Unavailable

29

BOLT

90123-08002-00

Unavailable

30

NUT

90179-08030-00

Unavailable

31

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

Unavailable

32

CABLE, starter 1

26H-26331-00-00

Unavailable

33

REAR VIEW MIRROR ASSY(LEFT)

4H7-26290-20-00

Unavailable

34

REAR VIEW MIRROR ASSY (RIGHT)

4H7-26290-50-00

Unavailable
