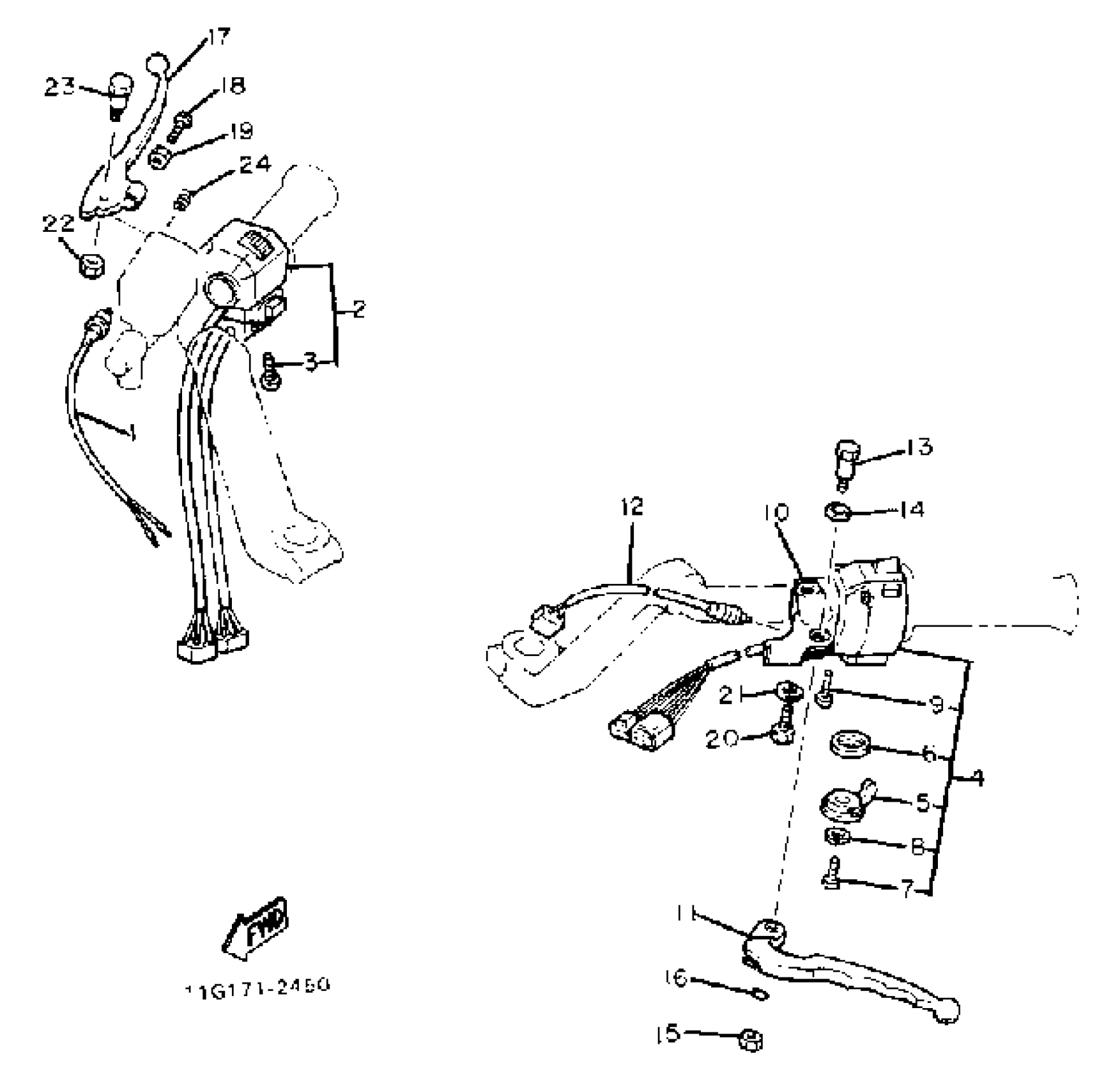

Yamaha XJ1100J (XJ1100J) 1982 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

FRONT STOP SWITCH ASSY

26H-83980-00-00

$74.99

2

SWITCH, HANDLE 3

10M-83963-00-00

Unavailable

3

SCREW, PAN HEAD

98517-05020-00

$4.25

4

SWITCH, HANDLE 3 (10M-83973-00-00)

15R-83973-00-98

Unavailable

5

LEVER, STARTER

10M-83941-00-00

Unavailable

6

WASHER (357)

90209-10131-00

$9.49

7

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

SCREW, PAN HEAD

98517-05020-00

$4.25

10

HOLDER, LEVER

10M-82911-00-00

Unavailable

11

LEVER 1

10W-83912-00-00

Unavailable

12

SWITCH

3Y6-82917-00-00

Unavailable

13

BOLT(3GB)

90109-061F3-00

$7.49

14

WASHER, PLATE 1562722600

90201-08083-00

$9.49

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

O-RING (2H7)

93210-11368-00

Unavailable

17

LEVER 2

4L0-83922-00-00

Unavailable

18

SCREW (2L0)

90149-06131-00

Unavailable

19

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

20

BOLT, HEXAGON

97007-06022-00

Unavailable

21

WASHER, SPRING

92907-06100-00

Unavailable

22

NUT, SELF-LOCKING

95617-06100-00

$8.49

23

BOLT (4L0)

90109-06577-00

Unavailable

24

SPRING, COMPRESSION (2H7)

90501-10510-00

Unavailable
