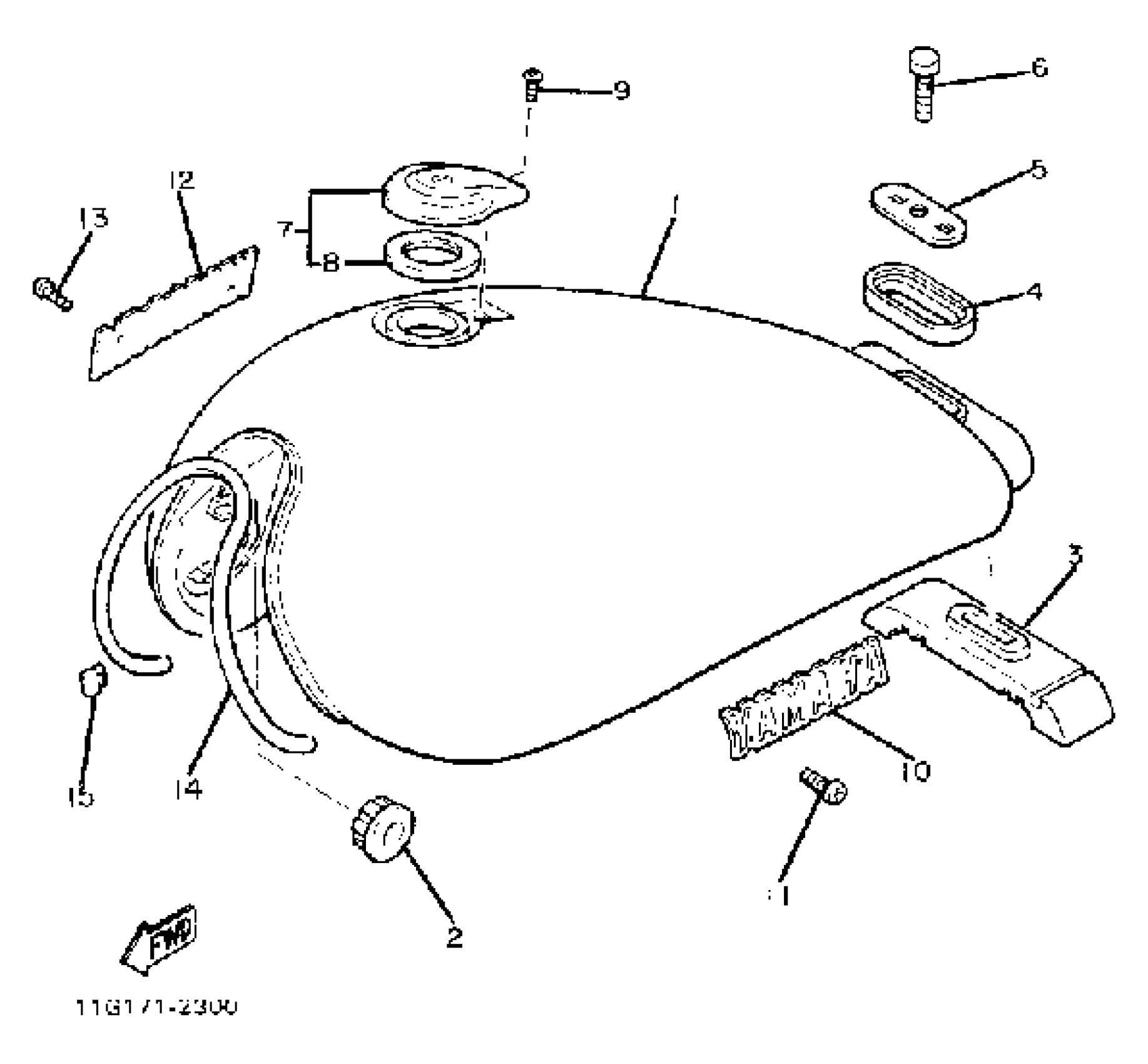

Yamaha XJ1100J (XJ1100J) 1982 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

10M-24110-00-6G

Unavailable

1

FUEL TANK

10M-24110-00-7J

Unavailable

2

DAMPER, LOCATING 1

1J7-24181-01-00

Unavailable

3

DAMPER, LOCATING 2

(10M-24182-00-00)

Unavailable

4

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

5

WASHER, SPECIAL

4H7-24186-00-00

Unavailable

6

BOLT(62E)

97013-08012-00

Unavailable

7

CAP ASSY

4X7-24602-10-00

$127.99

8

GASKET, TANK CAP

4X7-24612-00-00

$32.99

9

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

10

EMBLEM 1

10M-24161-00-00

Unavailable

11

SCREW (2F0)

90152-04006-00

$10.49

12

EMBLEM 2

10M-24162-00-00

Unavailable

13

SCREW (2F0)

90152-04006-00

$10.49

14

PLATE, MOLD

10M-24189-00-00

Unavailable

15

CLIP

90468-03063-00

Unavailable
