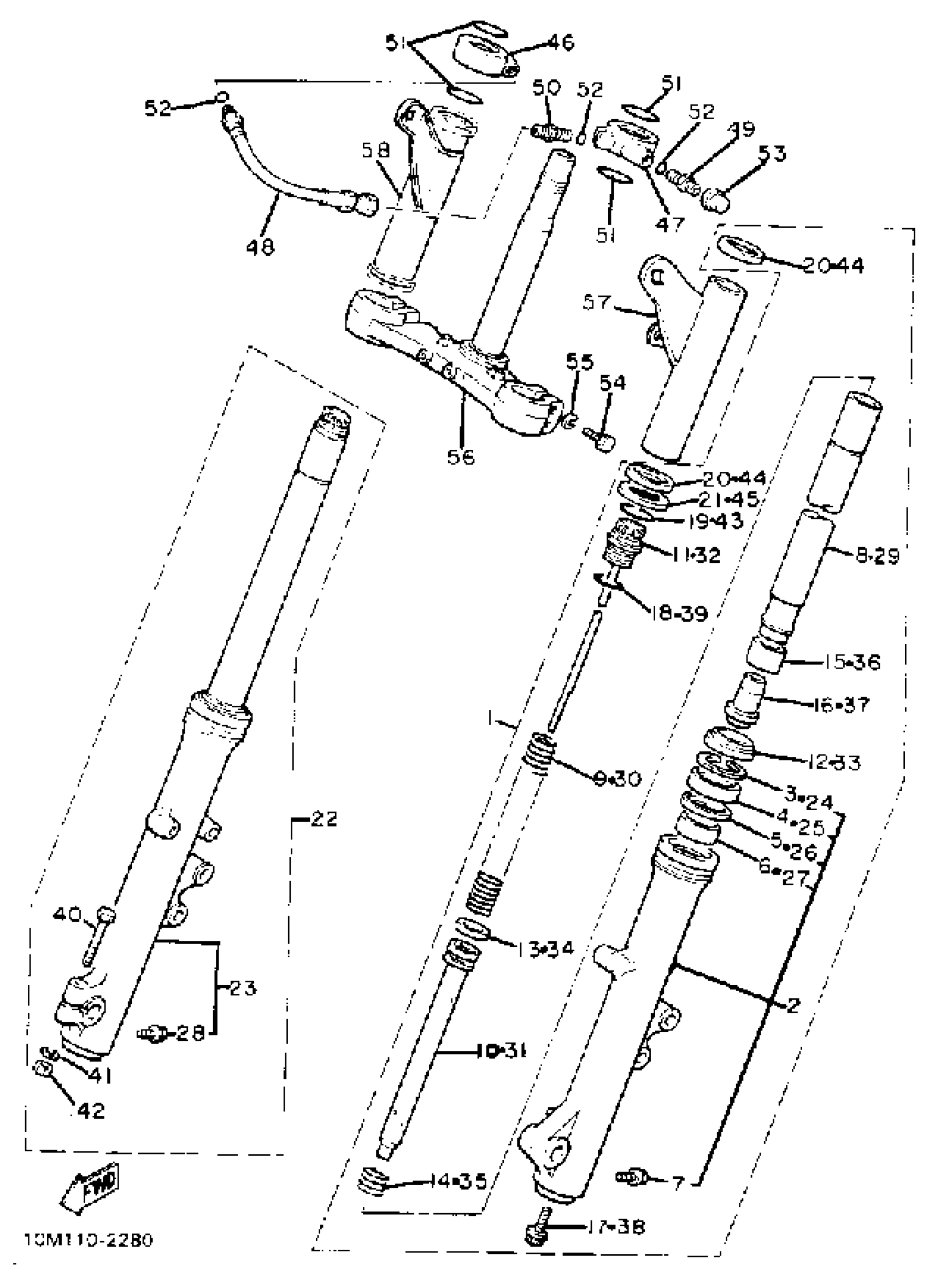

Yamaha XJ1100J (XJ1100J) 1982 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY L

(10M-23102-00-00)

Unavailable

2

. TUBE, OUTER 1

10M-23126-00-00

Unavailable

3

CLIP, OIL SEAL

(10M-23156-00-00)

Unavailable

4

.. OIL SEAL

10M-23145-00-00

Unavailable

5

O-RING

(10M-23147-00-00)

Unavailable

6

METAL, SLIDE 1

(3H3-23125-00-00)

Unavailable

7

PLUG, DRAIN

(10M-23119-00-00)

Unavailable

8

. INNER TUBE 1

10M-23110-00-00

Unavailable

9

SPRING, FRONT FORK

(10M-23141-00-00)

Unavailable

10

. CYLINDER, FRTFRK

10M-23170-00-00

Unavailable

11

BOLT, CAP

(10M-23111-00-00)

Unavailable

12

. SEAL, DUST

10M-23144-00-00

Unavailable

13

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

Unavailable

14

. SPRING, REBOUND

10M-23151-00-00

Unavailable

15

. METAL, SLIDE 2

3H3-23135-00-00

Unavailable

16

. SPACER, OIL LOCK

10M-23166-00-00

Unavailable

17

BOLT

3M7-23181-00-00

Unavailable

18

. GASKET

3H3-23114-00-00

Unavailable

19

. GASKET

3H3-23163-00-00

Unavailable

20

. GUIDE, COVER UPPER

3H3-23115-00-00

Unavailable

21

GUIDE, COVER UPPER

(10M-23115-00-00)

Unavailable

22

FRONT FORK ASSEMBLY R

(10M-23103-00-00)

Unavailable

23

TUBE, OUTER 2

(10M-23136-00-00)

Unavailable

24

CLIP, OIL SEAL

(10M-23156-00-00)

Unavailable

25

.. OIL SEAL

10M-23145-00-00

Unavailable

26

O-RING

(10M-23147-00-00)

Unavailable

27

METAL, SLIDE 1

(3H3-23125-00-00)

Unavailable

28

PLUG, DRAIN

(10M-23119-00-00)

Unavailable

29

. INNER TUBE 1

10M-23110-00-00

Unavailable

30

SPRING, FRONT FORK

(10M-23141-00-00)

Unavailable

31

. CYLINDER, FRTFRK

10M-23170-00-00

Unavailable

32

BOLT, CAP

(10M-23111-00-00)

Unavailable

33

. SEAL, DUST

10M-23144-00-00

Unavailable

34

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

Unavailable

35

. SPRING, REBOUND

10M-23151-00-00

Unavailable

36

. METAL, SLIDE 2

3H3-23135-00-00

Unavailable

37

. SPACER, OIL LOCK

10M-23166-00-00

Unavailable

38

BOLT

3M7-23181-00-00

Unavailable

39

. GASKET

3H3-23114-00-00

Unavailable

40

BOLT(3HN)

97017-08045-00

Unavailable

41

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

42

. NUT (CROWN/SLOT)

92811-08200-00

Unavailable

43

. GASKET

3H3-23163-00-00

Unavailable

44

. GUIDE, COVER UPPER

3H3-23115-00-00

Unavailable

45

GUIDE, COVER UPPER

(10M-23115-00-00)

Unavailable

46

JOINT, AIR

10M-2319A-00-00

Unavailable

47

JOINT, AIR 1

(10M-2318A-00-00)

Unavailable

48

HOSE, AIR

10M-2318F-00-00

Unavailable

49

. AIR VALVE

5K7-23190-00-00

Unavailable

50

CONNECTOR

10M-2318E-00-00

Unavailable

51

O-RING

10M-23188-00-00

Unavailable

52

O-RING (26H)

93210-06632-00

Unavailable

53

CAP, AIR VALVE

5K7-23184-00-00

Unavailable

54

. BOLT 1

3J3-23346-00-00

Unavailable

55

. WASHER, SPRING LWR

3J3-23159-00-00

Unavailable

56

UNDER BRACKET

10M-23340-00-90

Unavailable

57

COVER, UPPER 1

10M-23121-00-93

Unavailable

58

COVER, UPPER 2

10M-23131-00-93

Unavailable
