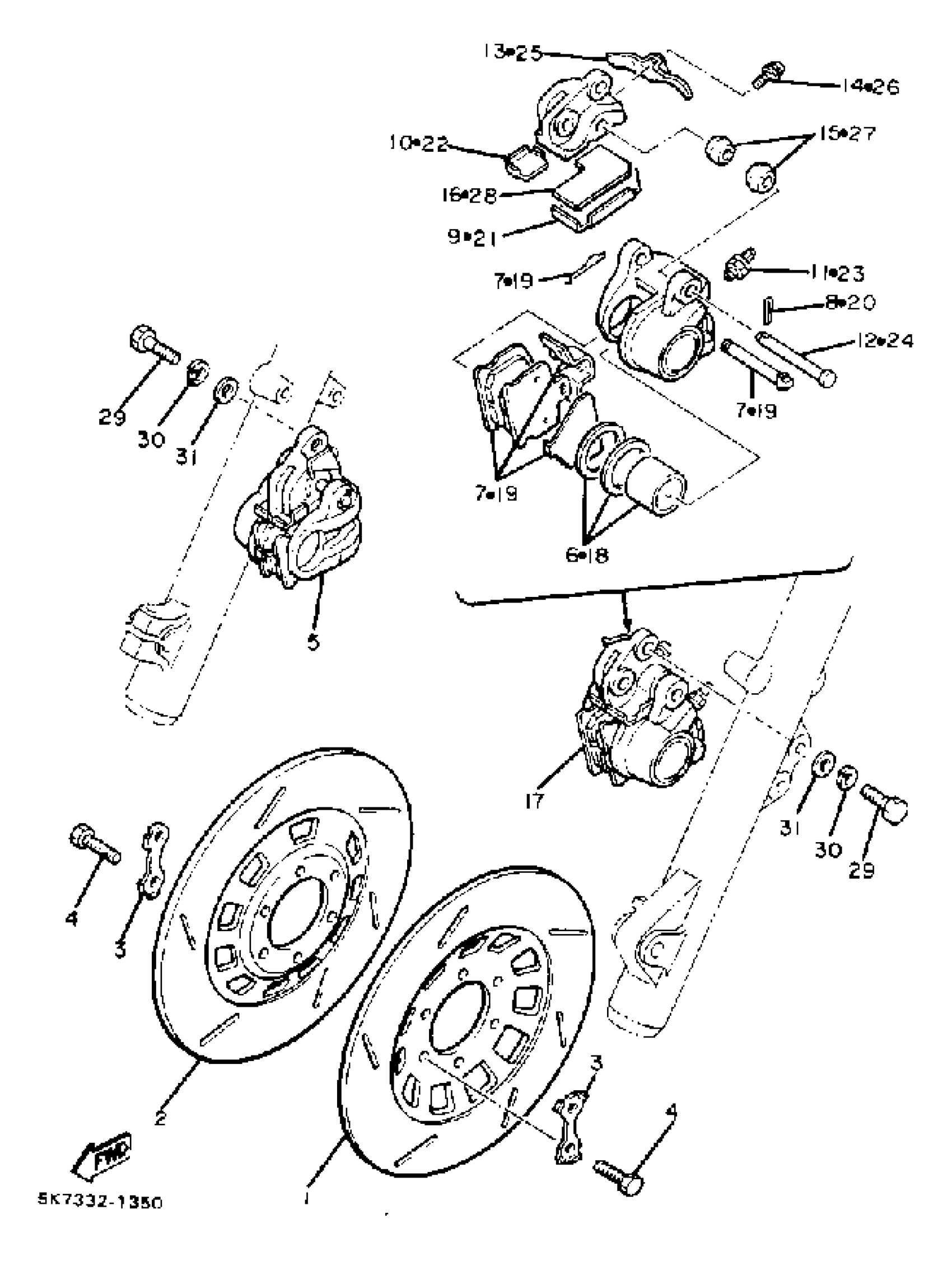

Yamaha XJ1100J (XJ1100J) 1982 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

DISC, BRAKE

3H5-25831-10-00

Unavailable

2

DISC, BRAKE

3H5-25831-00-00

Unavailable

3

WASHER, LOCK

3H5-25834-00-00

Unavailable

4

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

5

CALIPER ASSEMBLY

(4W1-25810-00-00)

Unavailable

6

PISTON SEAL KIT

4W1-W0057-00-00

Unavailable

7

BRAKE PAD KIT

23W-W0045-02-00

Unavailable

8

PIN, COTTER (648)

91490-20015-00

$2.20

9

. RETAINER

4W1-25913-00-00

Unavailable

10

. SHIM, CALIPER

4W1-25828-00-00

Unavailable

11

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

12

. PIN, SLIDE

4W1-25914-00-00

Unavailable

13

COVER, DUST

(4W1-25836-00-00)

Unavailable

14

BOLT, CALIPER

(4L3-25818-00-00)

Unavailable

15

. BOOT, CALIPER

4L0-25917-00-00

Unavailable

16

. SHIM, CALIPER

4W1-25828-50-00

Unavailable

17

CALIPER ASSEMBLY LH

4W1-25810-10-00

Unavailable

18

PISTON SEAL KIT

4W1-W0057-00-00

Unavailable

19

BRAKE PAD KIT

23W-W0045-02-00

Unavailable

20

PIN, COTTER (648)

91490-20015-00

$2.20

21

RETAINER

(4W1-25913-10-00)

Unavailable

22

. SHIM, CALIPER

4W1-25828-00-00

Unavailable

23

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

24

. PIN, SLIDE

4W1-25914-00-00

Unavailable

25

COVER, DUST

(4W1-25836-10-00)

Unavailable

26

BOLT, CALIPER

(4L3-25818-00-00)

Unavailable

27

. BOOT, CALIPER

4L0-25917-00-00

Unavailable

28

. SHIM, CALIPER

4W1-25828-50-00

Unavailable

29

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

30

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

31

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable
