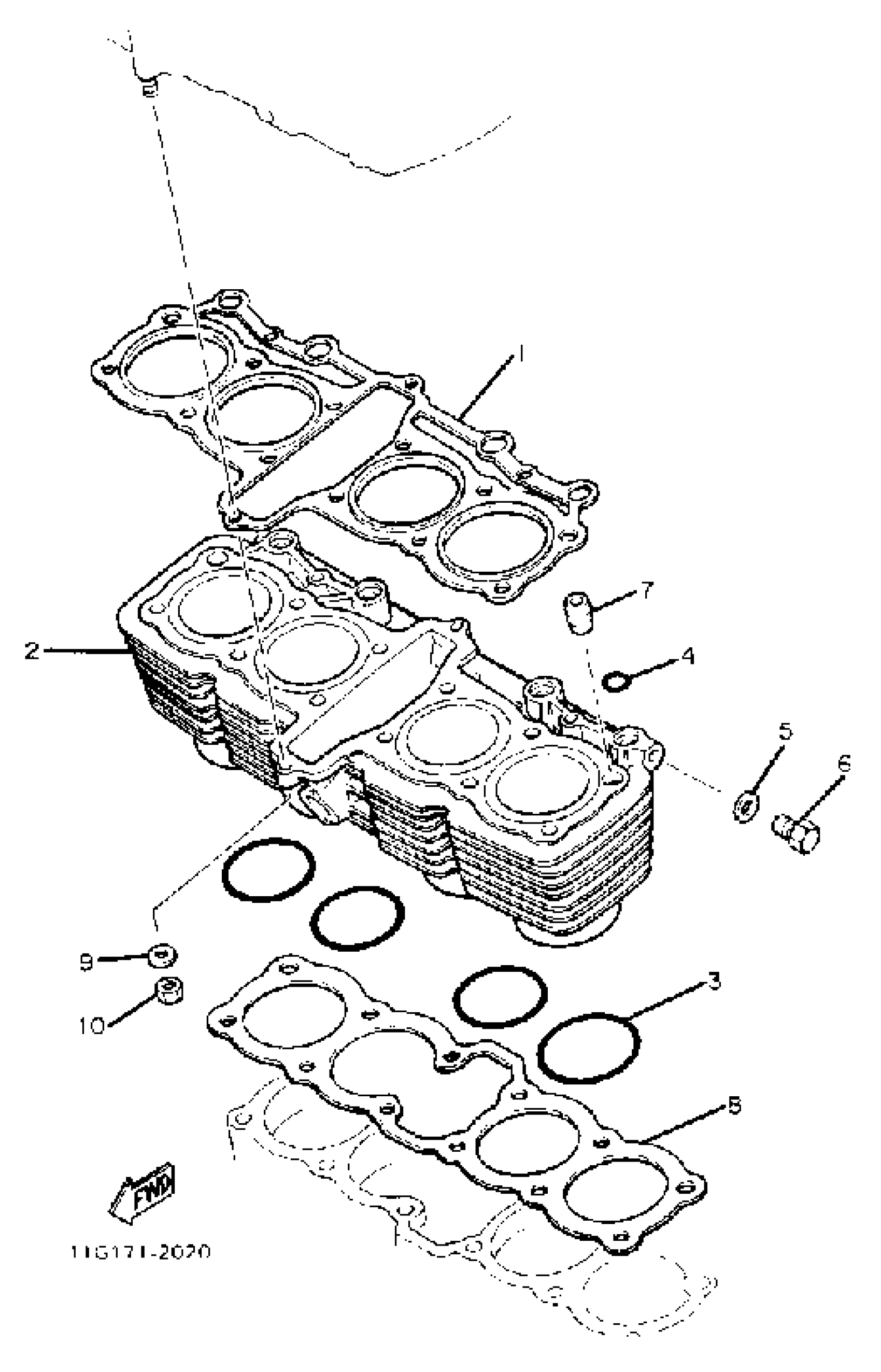

Yamaha XJ1100J (XJ1100J) 1982 CYLINDER Diagram

#

Description
Price

1

GASKET, CYLINDER HEAD 1

10M-11181-00-00

Unavailable

2

CYLINDER

(10M-11310-00-00)

Unavailable

3

O-RING (2H7)

93210-77363-00

$9.11

4

O-RING (4U8)

93210-09443-00

$2.58

5

WASHER, PLATE

90201-12790-00

$6.39

6

BOLT, WASHER BASED(4GY)

90105-122A1-00

$2.17

7

PIN, DOWEL

99530-14016-00

$2.98

8

GASKET,CYLINDER

2H7-11351-11-00

Unavailable

9

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

10

NUT(6TA)

95337-08600-00

$5.75
