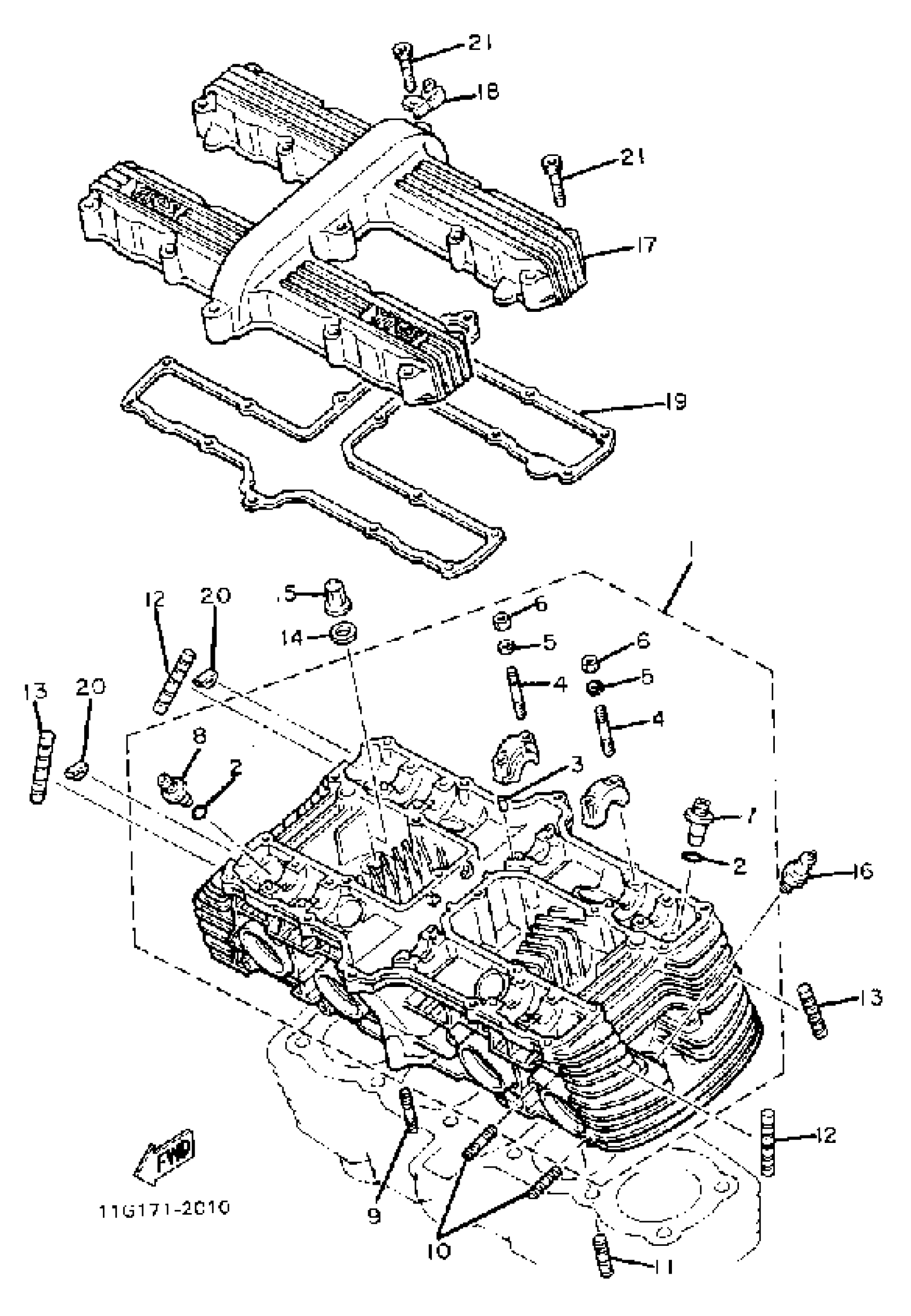

Yamaha XJ1100J (XJ1100J) 1982 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(10M-11110-00-00)

Unavailable

2

O-RING (1J7)

93210-11313-00

$8.49

3

. PIN, DOWEL

93603-09004-00

Unavailable

4

BOLT, STUD (1J7)

90116-06228-00

$3.55

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

NUT(6TA)

95317-06600-00

$3.55

7

. GDE, INTK VLV 1 O/S

1J7-11133-10-00

Unavailable

8

. GDE, EXST VLV 1 O/S

1J7-11134-10-00

Unavailable

9

BOLT, STUD

90116-08161-00

Unavailable

10

BOLT, STUD 3

95617-08615-00

$5.60

11

BOLT, STUD 3

95617-08630-00

$4.99

12

ABSORBER 1

2H7-11161-00-00

Unavailable

13

ABSORBER 2

(2H7-11162-00-00)

Unavailable

14

WASHER PLATE 256111740000

90201-10131-00

$9.49

15

NUT, CROWN(2GG)

90176-10075-00

$8.49

16

BPR6ES NGK SPLUG 4PK

BPR-6ES00-00-00

Unavailable

17

COVER, CYLINDER.HEAD 1

(10M-11191-00-00)

Unavailable

18

CLAMP

90465-10129-00

Unavailable

19

GASKET, CYLINDER HEAD COVER

2H7-11193-10-00

Unavailable

20

PLUG

1J7-11138-00-00

Unavailable

21

BOLT,SOCKET

91317-06035-00

Unavailable
