- XJ1100J (XJ1100J) 1982
CARBURETOR

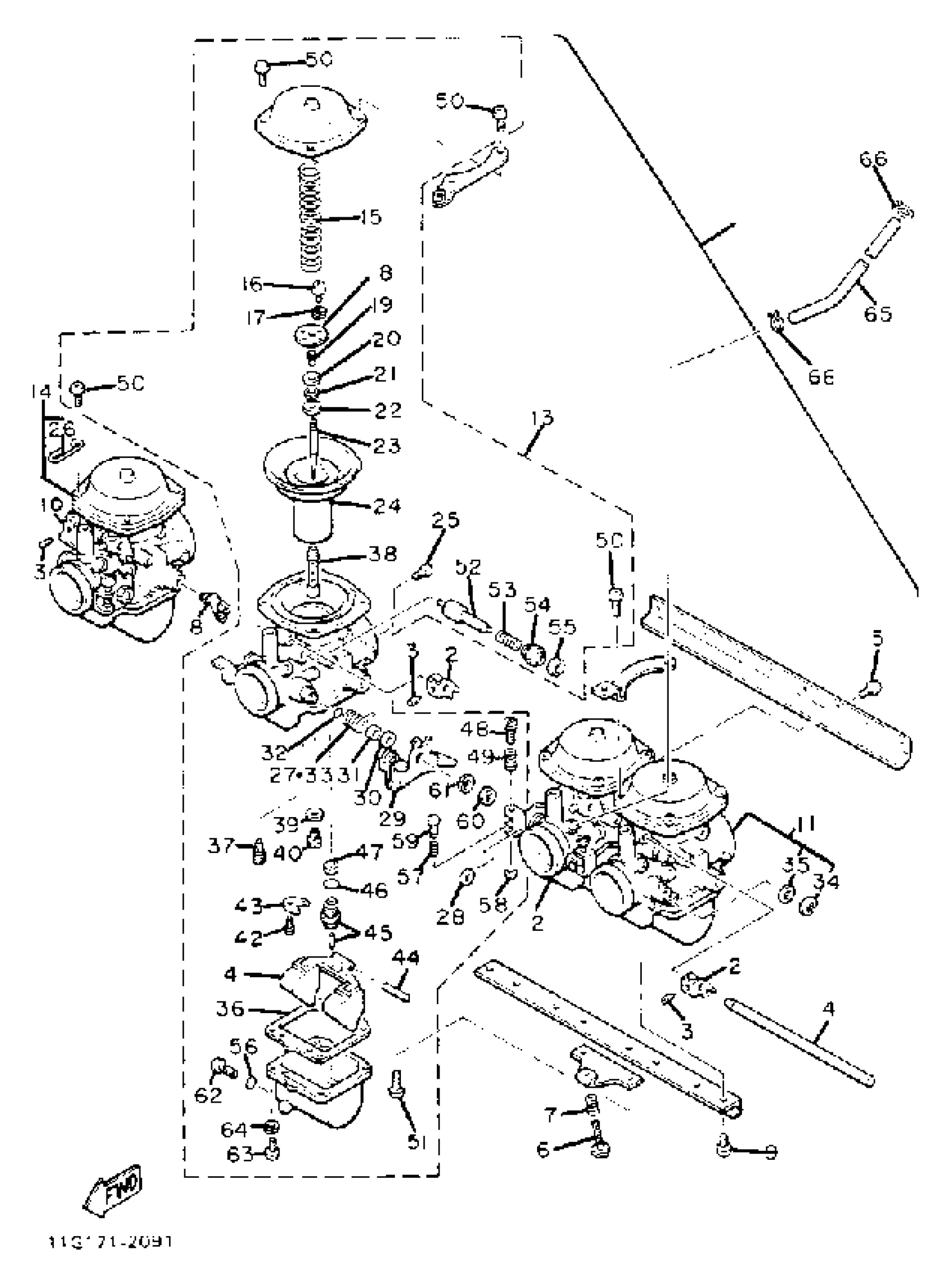

Yamaha XJ1100J (XJ1100J) 1982 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
(10M-14900-00-)
Unavailable
2
. LEVER, STARTER
3F7-14905-00-00
Unavailable
3
. SCREW
11V-14991-00-00
Unavailable
4
SHAFT, STARTER LVR
(10M-14978-00-00)
Unavailable
5
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
6
. THROTTLE SCREW SET
11H-14103-00-00
Unavailable
7
. , SPRING, THROTTLE STOP
3F7-14934-00-00
Unavailable
8
. PIPE, STARTER CON
3H3-14988-00-00
Unavailable
10
LEVER, STARTER 1
(10M-14975-00-00)
Unavailable
11
CARBURETOR ASSEMBLY 1
(10M-14901-00-00)
Unavailable
12
CARBURETOR ASSEMBLY 2
(10M-14902-00-00)
Unavailable
13
CARBURETOR ASSEMBLY 3
(10M-14903-00-00)
Unavailable
14
CARBURETOR ASSEMBLY 4
(10M-14904-00-00)
Unavailable
15
.. SPRING, DIAPHRAGM
3H5-14933-00-00
Unavailable
16
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
17
WASHER, SPRING
92990-03100-00
Unavailable
18
PLATE, DIAPHRAGM
3F7-14936-00-00
Unavailable
19
SPRING, NEEDLE
3F7-14589-00-00
Unavailable
20
WASHER, PLATE (7Y2)
90201-037F2-00
Unavailable
21
CLIP
256-14919-00-00
Unavailable
22
RING, NEEDLE
3F7-14918-00-00
Unavailable
23
NEEDLE
(452-14116-34-00)
Unavailable
24
DIAPHRAGM ASSY
3F7-14940-00-00
Unavailable
25
JET, MAIN (#170)
3G2-14231-34-00
Unavailable
26
CLIP, PIPE
(10M-14139-00-00)
Unavailable
27
SPRING, THRTL LEVER
(2H9-14931-00-00)
Unavailable
28
WASHER
(2H7-14952-00-00)
Unavailable
29
LEVER, THROTTLE
(3H5-14913-00-00)
Unavailable
30
VALVE, THROTTLE
(306-14970-00-00)
Unavailable
31
RING
(2H7-14918-00-00)
Unavailable
32
.. SEAL
256-14997-00-00
Unavailable
33
SPRING, THROTTLE LEVER
(2H7-14931-00-00)
Unavailable
34
CLIP
812-14137-00-00
Unavailable
35
WASHER (3H1)
1A8-14953-00-00
Unavailable
36
GASKET, FLOAT CHAMBER
3F7-14984-00-00
Unavailable
37
. JET, PILOT #475
4G0-14142-47-A0
Unavailable
38
.. NOZZLE, MAIN
3H5-14941-02-00
Unavailable
39
WASHER,MAIN JET
137-14153-00-00
Unavailable
40
JET,MAIN #112.5
620-1423A-73-00
Unavailable
41
FLOAT
3H5-14985-00-00
Unavailable
42
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
43
. PLATE
2H0-14146-00-00
Unavailable
44
PIN, FLOAT
537-14186-00-00
Unavailable
45
NEEDLE VALVE SET
25G-14107-20-00
Unavailable
46
O-RING
8F2-14147-00-00
Unavailable
47
NET, FILTER
1J7-14994-00-00
Unavailable
48
. STOP SCREW SET
12R-1490K-00-00
Unavailable
49
. SPRING, THROTTLE STOP
3F7-14133-00-00
Unavailable
50
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
51
SCREW, CYLINDER HEAD
(98302-05006-00)
Unavailable
52
.. PLUNGER, STARTER
3F7-14171-00-00
Unavailable
53
.. SPRING, PLUNGER
3F7-14135-00-00
Unavailable
54
.. CAP, PLUNGER
3F7-14174-00-00
Unavailable
55
.. COVER, PLUNGER CAP
3F7-14173-00-00
Unavailable
56
O-RING
214-14147-00-00
Unavailable
57
SPRING, THROTTLE STOP
(584-14934-00-00)
Unavailable
58
CLIP
(2H7-14937-00-00)
Unavailable
59
ROD
(2H7-14992-00-00)
Unavailable
60
NUT
812-14594-00-00
Unavailable
61
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
62
SCREW
2L1-14191-00-00
Unavailable
63
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
64
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
65
HOSE (L400)
90445-082A9-00
Unavailable
66
CLIP (1J7)
90467-07029-00
Unavailable
