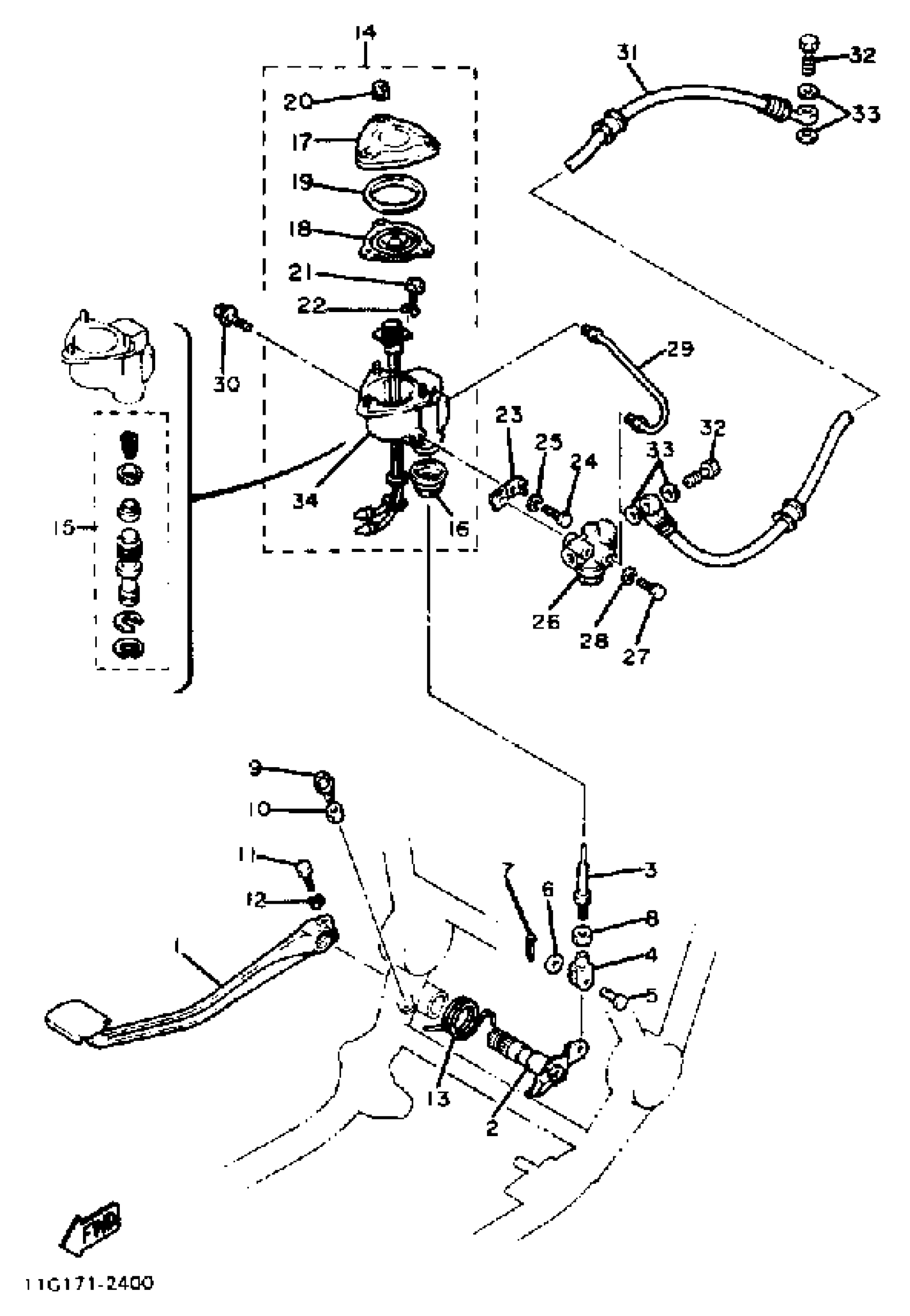

Yamaha XJ1100J (XJ1100J) 1982 BRAKE Diagram
#
1
PEDAL, BRAKE
10M-27211-00-93
Unavailable
2
SHAFT, BRAKE PEDAL
(4W1-27212-00-00)
Unavailable
3
ROD, BRAKE
1A1-27231-01-00
Unavailable
4
JOINT
47X-27222-00-00
Unavailable
7
PIN, COTTER
91490-16020-00
Unavailable
8
. NUT
95380-08700-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
13
SPRING, TORSION
90508-45396-00
Unavailable
14
MSTR CYLINDER ASSEMBLY
10M-25850-50-00
Unavailable
15
CYLINDER KIT, MASTER
10M-W0042-00-00
Unavailable
16
. BOOT, master cylinder
1J3-25862-51-00
Unavailable
17
. CAP, RESERVOIR
1J3-25852-52-00
Unavailable
18
. DIAPHRAGM RESERVOR
1J3-25854-51-00
Unavailable
19
. BUSH, DIAPHRAGM
1J3-25855-51-00
Unavailable
20
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
21
. SCREW, hexagon
90153-10015-00
Unavailable
22
. WASHER, plate
90201-10610-00
Unavailable
23
SUPPORT, BRACKET
(10M-25984-00-00)
Unavailable
24
BOLT(3JP)
97017-06010-00
Unavailable
25
WASHER, SPRING
92907-06100-00
Unavailable
26
VALVE, PROP
4W1-25884-00-00
Unavailable
27
BOLT(3RV)
97014-06035-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
PIPE, BRAKE
10M-25871-00-00
Unavailable
30
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
31
HOSE, BRAKE
(4W1-25874-50-00)
Unavailable
32
BOLT, UNION(3GM)
90401-10159-00
Unavailable
33
WASHER, PLATE(481)
90201-10118-00
Unavailable
34
. LEAD SWITCH ASS''Y
5G2-85702-00-00
Unavailable
