Description

Price

39027

BUMPER-FRONT,GRAY

39027-3730-RA

$152.56

39028

BUMPER-REAR,GRAY

39028-3734-RA

$205.98

53004

MAT,FLOOR,FR,GRAY

53004-3741-RA

Unavailable

53004A

MAT,FLOOR,RR,GRAY

53004-3742-RA

Unavailable

53004B

MAT,FOOT BOARD,LH,GRAY

53004-3743-RA

$8.85

53004C

MAT,FOOT BOARD,RH,GRAY

53004-3744-RA

$10.64

53004D

MAT,REAR BUMPER,GRAY

53004-3745-RA

Unavailable

59201

BUMPER,SIDE,RH,GRAY

59201-3734-RA

Unavailable

59201A

BUMPER,SIDE,LH,GRAY

59201-3741-RA

Unavailable

59201B

BUMPER,CORNER,LH,GRAY

59201-3756-RA

$107.55

59201C

BUMPER,CORNER,RH,GRAY

59201-3757-RA

$107.55

59504

INSERT-BOAT FENDER,GRAY

59504-3708-RA

Unavailable

92015

NUT,26MM

92015-3840

$9.98

92022

WASHER,5X16X1.5

92022-3041

$4.18

92028

BUSHING

92028-3734

$9.98

92039

RIVET

92039-3758

$1.70

311

NUT-HEX,5MM

311R0500

$1.75

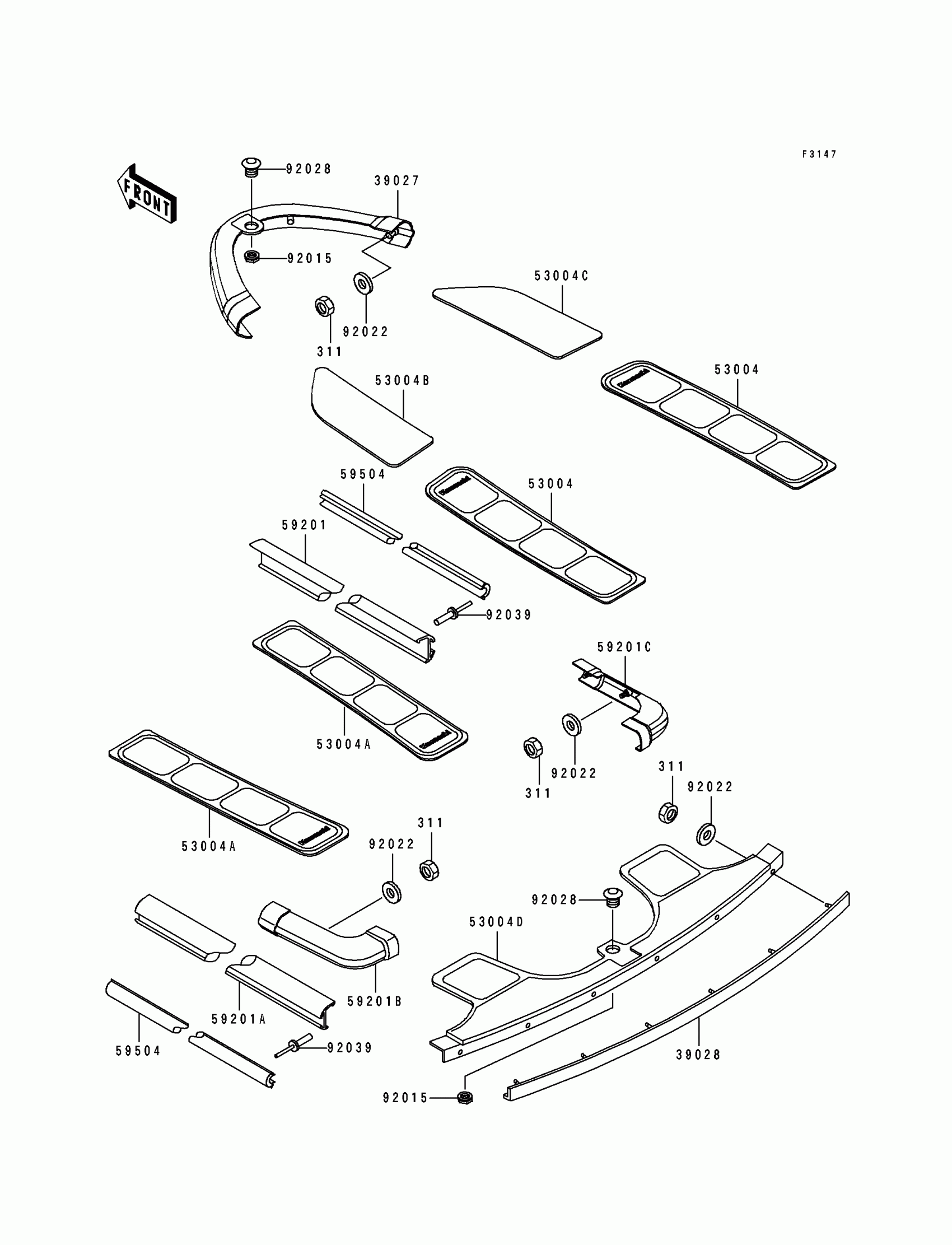

Kawasaki XiR Pads Diagram

BUMPER-FRONT,GRAY

BUMPER-REAR,GRAY

MAT,FLOOR,FR,GRAY

MAT,FLOOR,RR,GRAY

MAT,FOOT BOARD,LH,GRAY

MAT,FOOT BOARD,RH,GRAY

MAT,REAR BUMPER,GRAY

BUMPER,SIDE,RH,GRAY

BUMPER,SIDE,LH,GRAY

BUMPER,CORNER,LH,GRAY

BUMPER,CORNER,RH,GRAY

INSERT-BOAT FENDER,GRAY

NUT,26MM

WASHER,5X16X1.5

BUSHING

RIVET

NUT-HEX,5MM
