Description

Price

11009

GASKET,EXHAUST PIPE

11009-3752

$26.93

11060

GASKET,EXHAUST PIPE

11060-3721

Unavailable

18120

CHAMBER-EXHAUST

18120-3701

$376.45

18120A

CHAMBER-EXHAUST

18120-3702

$261.77

59081

MANIFOLD-EXHAUST

59081-3715

$291.65

92005

FITTING

92005-3713

$2.34

92005A

FITTING

92005-3717

$6.88

92005B

FITTING

92005-3718

$2.18

92015

NUT,CAP,8MM

92015-1371

$5.00

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92022A

WASHER,10.2X20X1.5

92022-3742

$4.18

92037

CLAMP

92037-3009

$3.70

92059

TUBE,HULL TO ENGINE,9X16X680

92059-3761

Unavailable

92059A

TUBE

92059-3816

Unavailable

92093

SEAL

92093-3741

$59.43

92150

BOLT,8X35

92150-3801

$7.69

92150A

BOLT,10X70

92150-3831

$4.68

92170

CLAMP

92170-3718

$13.67

92170A

CLAMP

92170-3741

$32.16

92190

TUBE,CHAMBER-WATER MUFFLER

92190-3928

$27.36

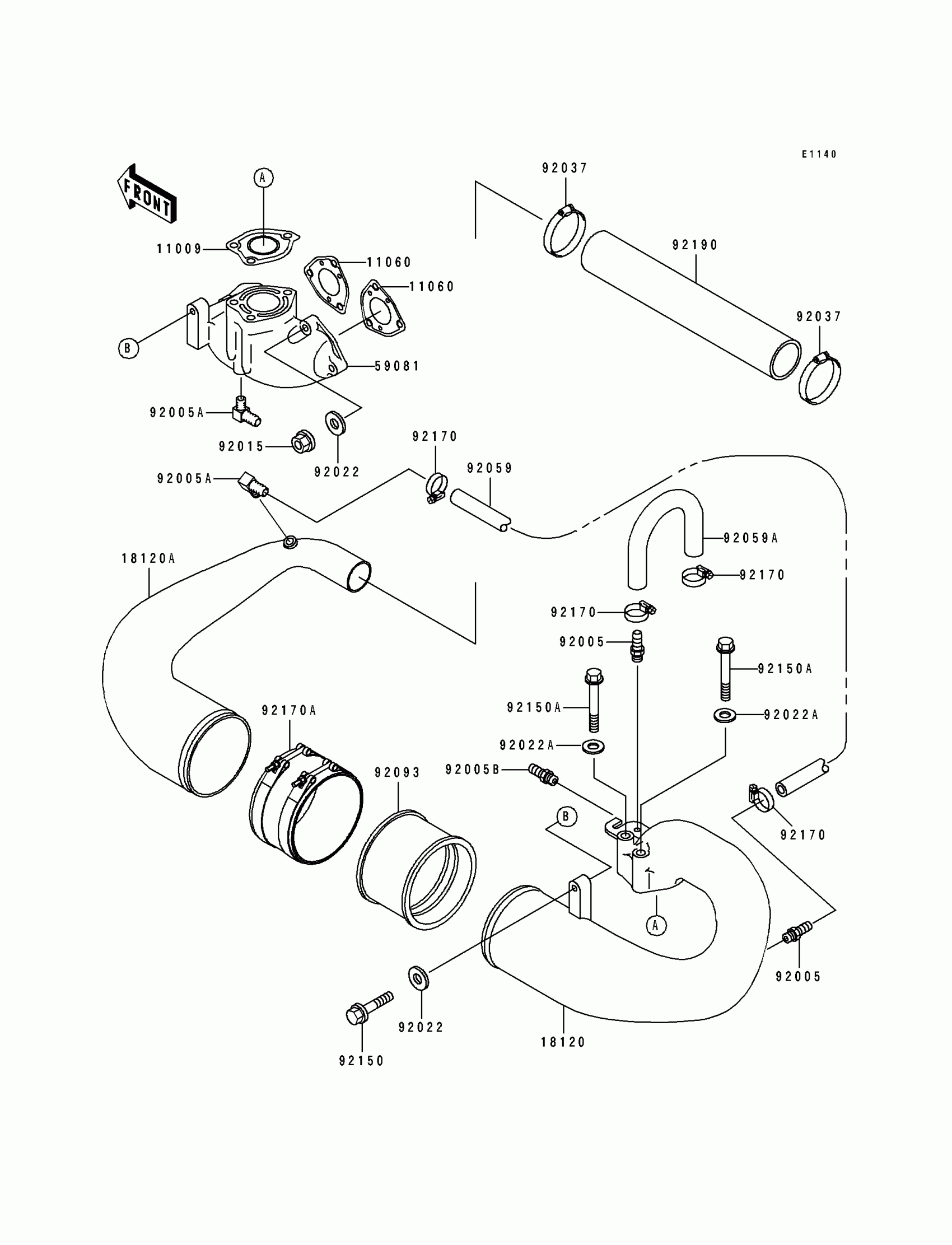

Kawasaki XiR Muffler(s) Diagram

GASKET,EXHAUST PIPE

GASKET,EXHAUST PIPE

CHAMBER-EXHAUST

CHAMBER-EXHAUST

MANIFOLD-EXHAUST

FITTING

FITTING

FITTING

NUT,CAP,8MM

WASHER,8.2X18X1.5

WASHER,10.2X20X1.5

CLAMP

TUBE,HULL TO ENGINE,9X16X680

TUBE

SEAL

BOLT,8X35

BOLT,10X70

CLAMP

CLAMP

TUBE,CHAMBER-WATER MUFFLER
