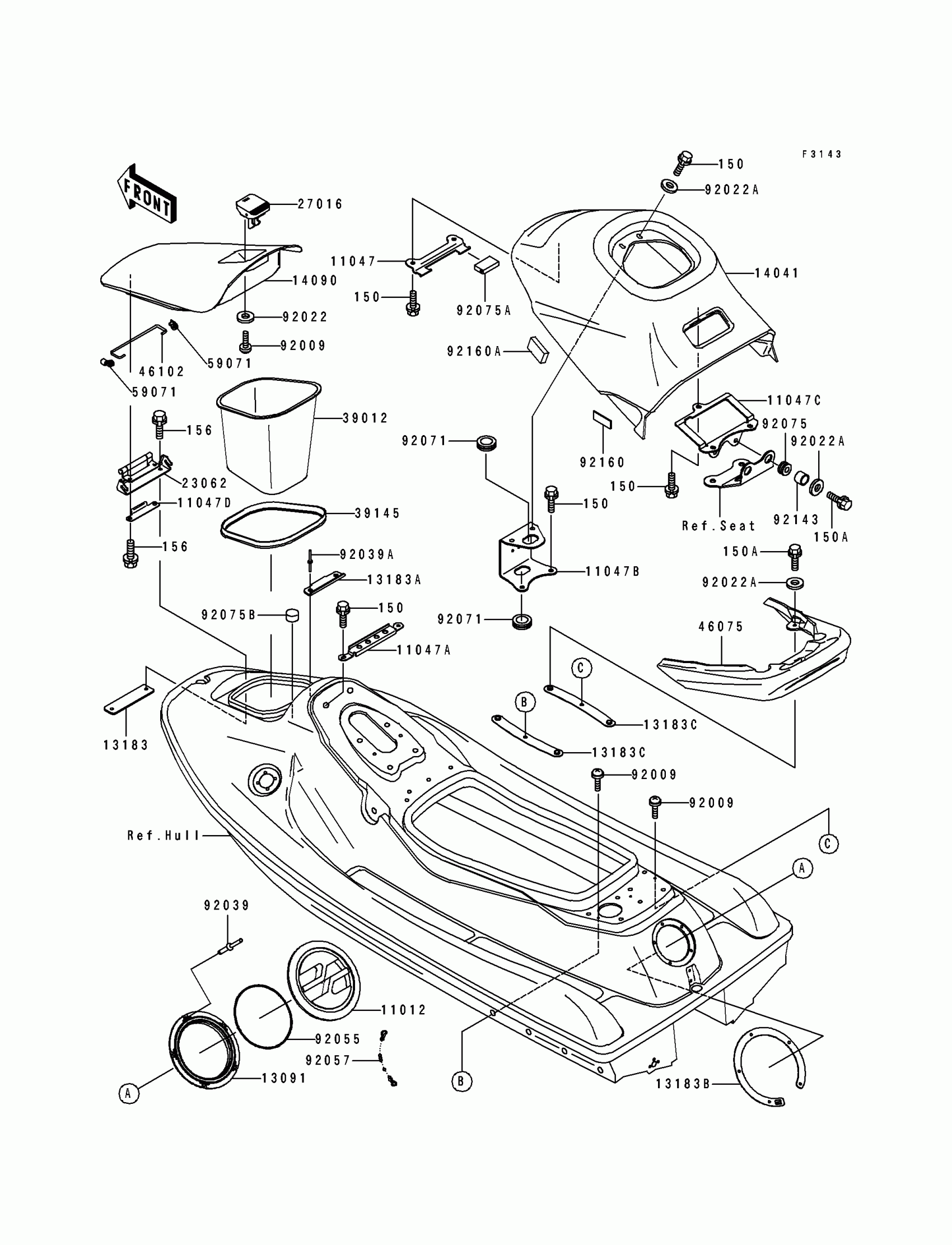

Kawasaki XiR Hull Fittings Diagram
#
11012
CAP,STORAGE,J.WHITE
11012-3758-8U
$79.77
11047
BRACKET,HANDLE POLE COVER,FR
11047-3763
Unavailable
11047A
BRACKET,HANDLE POLE COVER,FR
11047-3764
Unavailable
11047B
BRACKET,HANDLE POLE COVER,CNT
11047-3765
Unavailable
11047C
BRACKET,HANDLE POLE COVER,RR
11047-3773
Unavailable
11047D
BRACKET,ROD HOLDER
11047-3779
Unavailable
13091
HOLDER,STORAGE,J.WHITE
13091-3766-8U
$70.82
13183
PLATE,HINGE BRACKET
13183-3781
Unavailable
13183A
PLATE,HOOK
13183-3801
Unavailable
13183B
PLATE,STORAGE
13183-3804
Unavailable
13183C
PLATE,TAIL GRIP
13183-3805
Unavailable
14041
COVER-COMP,HANDLE POLE,BLUE
14041-3702-3E
$327.55
14090
COVER,HATCH,J.WHITE
14090-3711-8C
Unavailable
23062
BRACKET-COMP,HATCH COVER
23062-3705
Unavailable
27016
LOCK-ASSY,HATCH COVER
27016-3721
$85.52
39012
CASE-STORAGE
39012-3712
$20.55
39145
TRIM-SEAL,STORAGE CASE
39145-3734
Unavailable
46075
GRIP,TAIL,GRAY
46075-3724-RA
$179.73
46102
ROD
46102-3715
Unavailable
59071
JOINT
59071-1125
$9.13
92009
SCREW,5X16
92009-3789
$2.97
92022
WASHER,5X16X1.5
92022-3041
$4.18
92022A
WASHER,6.5X20X1.5
92022-3710
$3.65
92039
RIVET
92039-3714
$0.95
92039A
RIVET
92039-3753
$1.65
92055
RING-O,ID=131.6MM
92055-3732
$11.88
92057
CHAIN,COVER,L=100
92057-3704
$19.34
92071
GROMMET
92071-3704
$6.16
92075
DAMPER RUBBER
92075-105
$4.38
92075A
DAMPER
92075-1446
$4.69
92075B
DAMPER
92075-3760
Unavailable
92143
COLLAR,7.5X10.5X7.2
92143-3730
Unavailable
92160
DAMPER
92160-3792
Unavailable
92160A
DAMPER
92160-3808
Unavailable
150
BOLT-WS,6X14
150R0614
$5.96
150A
BOLT-WS,6X20
150R0620
$2.65
156
BOLT-WP,6X18
156R0618
$3.73
