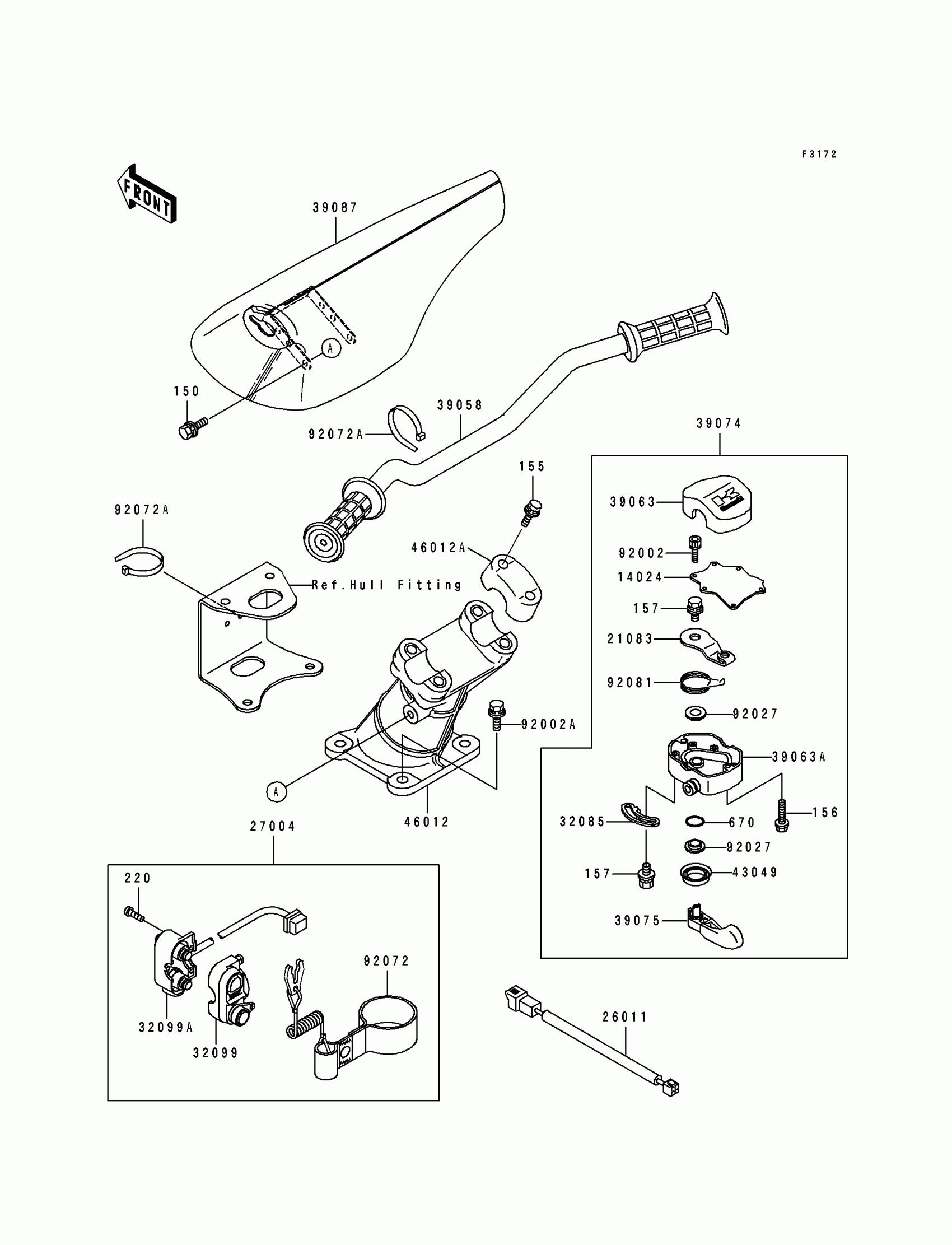

Kawasaki XiR Handlebar Diagram
#
Description
Price
14024
COVER,THROTTLE LEVER
14024-3701
Unavailable
21083
ARM,THROTTLE LEVER
21083-3701
$15.65
26011
WIRE-LEAD,START&STOP SWITCH
26011-3820
$34.12
27004
SWITCH-ASSY,STOP&START
27004-3721
$333.47
32085
STOPPER
32085-3709
Unavailable
32099
CASE,FR,SWITCH
32099-3762
Unavailable
32099A
CASE,RR,SWITCH
32099-3767
$182.83
39058
HANDLE-COMP
39058-3707
$203.31
39063
HOUSING-CONTROL,UPP
39063-3713
Unavailable
39063A
HOUSING-CONTROL,LWR
39063-3714
$75.52
39074
LEVER-ASSY-THROTTLE
39074-3714
$229.21
39075
LEVER-THROTTLE
39075-3708
$67.20
39087
PAD-HANDLE,C.BLUE
39087-3710-PR
$105.93
43049
PACKING,THROTTLE LEVER
43049-3701
$7.69
46012
HOLDER-HANDLE,LWR
46012-3719
$141.65
46012A
HOLDER-HANDLE,UPP
46012-3720
$16.69
92002
BOLT,SOCKET,3X10
92002-3751
$5.46
92002A
BOLT,8X25
92002-3774
$7.91
92027
COLLAR,THROTTLE LEVER
92027-3704
Unavailable
92072
BAND,TETHER SWITCH
92072-3767
$59.26
92072A
BAND,L=201
92072-3778
$1.84
92081
SPRING,THROTTLE LEVER RETURN
92081-3702
$6.52
150
BOLT-WS,6X14
150R0614
$5.96
155
BOLT-WSP-SMALL,8X35
155R0835
$8.19
156
BOLT-WP,5X25
156R0525
$5.22
157
BOLT-WSP,5X12
157R0512
$2.78
220
SCREW-PAN-CROS,5X30
220R0530
$4.87
670
O RING,8MM
670B1508
$1.29
