Description

Price

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

410A

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

11012

CAP,JET PUMP

11012-3712

$58.91

13070

GUIDE,INTAKE

13070-3718

$96.62

13107

SHAFT,JET PUMP

13107-3721

$77.79

39145

TRIM-SEAL

39145-3732

$66.68

52014

ELBOW

52014-3708

$34.82

59136

NOZZLE-PUMP

59136-3722

$135.61

59255

IMPELLER-COMP

59255-3705

Unavailable

59266

JOINT-BALL

59266-3707

$66.16

59366

GRATE

59366-3714

$186.96

59476

NOZZLE-STRG

59476-3713

$87.11

59496

VANE-GUIDE

59496-3727

Unavailable

92001

BOLT,SOCKET,6X11

92001-3701

$14.67

92002

BOLT,6X30

92002-3726

$4.69

92002A

BOLT,6X16

92002-3728

$4.69

92002B

BOLT,SOCKET,8X20

92002-3771

$8.28

92022

WASHER,6.2X20X2

92022-3714

$4.18

92022A

WASHER,10.2X20X1.5

92022-3742

$4.18

92022B

WASHER

92022-567

$2.67

92028

BUSHING,17X25X15

92028-3717

$34.49

92045

BEARING-BALL,#63032RD

92045-3706

$39.98

92049

SEAL-OIL,TBY25X47X6

92049-3714

$33.99

92055

RING-O,13X1.9

92055-1021

$7.62

92055A

RING-O

92055-3706

$4.45

92071

GROMMET

92071-3716

$4.96

92093

SEAL,JET PUMP

92093-3739

$15.50

92143

COLLAR,17.4X25.4X53

92143-3708

$24.05

92150

BOLT,SOCKET,6X18

92150-3795

$4.69

92150A

BOLT

92150-3850

$17.91

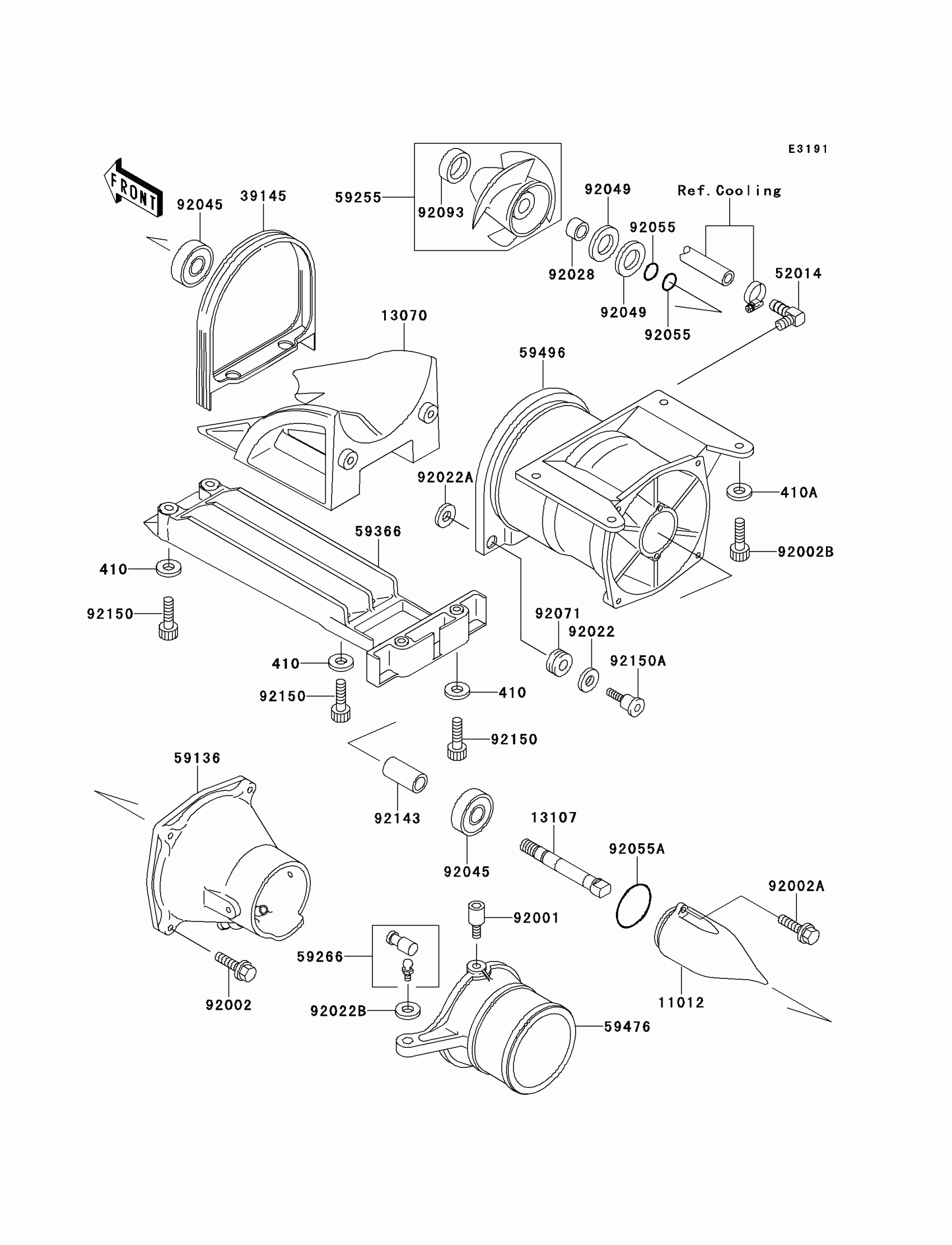

Kawasaki Xi Sport Jet Pump Diagram

WASHER-PLAIN-SMALL,6MM

WASHER-PLAIN-SMALL,8MM

CAP,JET PUMP

GUIDE,INTAKE

SHAFT,JET PUMP

TRIM-SEAL

ELBOW

NOZZLE-PUMP

IMPELLER-COMP

JOINT-BALL

GRATE

NOZZLE-STRG

VANE-GUIDE

BOLT,SOCKET,6X11

BOLT,6X30

BOLT,6X16

BOLT,SOCKET,8X20

WASHER,6.2X20X2

WASHER,10.2X20X1.5

WASHER

BUSHING,17X25X15

BEARING-BALL,#63032RD

SEAL-OIL,TBY25X47X6

RING-O,13X1.9

RING-O

GROMMET

SEAL,JET PUMP

COLLAR,17.4X25.4X53

BOLT,SOCKET,6X18

BOLT
