Description

Price

11012

CAP

11012-3005

$5.54

11012A

CAP,HOLDER

11012-3768

$7.22

11012B

CAP

11012-3791

$12.48

11048

BRACKET,HIGH TENSION CORD

11048-3736

Unavailable

13091

HOLDER,HIGH TENSION CORD

13091-3771

Unavailable

13091A

HOLDER,PLUG CAP

13091-3781

Unavailable

14079

HOLDER-ASSY

14079-3710

$110.58

21066

REGULATOR-VOLTAGE

21066-3711

$222.82

21066A

REGULATOR-VOLTAGE

21066-3714

Unavailable

21119

IGNITER

21119-3750

Unavailable

21121

COIL-IGNITION

21121-3704

$139.42

21130

CAP-SPARK PLUG

21130-3706

$52.27

26004

FUSE-ASSY

26004-3712

$55.72

26011

WIRE-LEAD

26011-3799

$93.39

26011A

WIRE-LEAD

26011-3800

$76.86

27010

SWITCH

27010-3733

$152.23

27010A

SWITCH,STARTER RELAY

27010-3760

$115.46

34001

STAND,ELECTRIC CASE

34001-3705

Unavailable

59071

JOINT

59071-3001

$6.29

59416B

CASE-ELECTRIC,LWR

59416-3753

Unavailable

59416C

CASE-ELECTRIC,UPP

59416-3754

Unavailable

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X35

92002-3715

$6.61

92002B

BOLT,6X16

92002-3728

$4.69

92002C

BOLT,6X12

92002-3763

$4.69

92022

WASHER

92022-3035

$3.52

92026

SPACER

92026-3703

$4.69

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP

92037-3730

$6.34

92055

RING-O

92055-1292

$8.42

92055A

RING-O,ELECTRIC CASE

92055-3733

$28.74

92070

PLUG-SPARK,BR8ES(NGK),SOLID

92070-2078

$3.62

92071

GROMMET

92071-3004

$3.99

92071A

GROMMET

92071-527

$6.68

92072

BAND,L=201

92072-3778

$1.84

92151

BOLT,6X12

92151-3724

$12.21

92190

TUBE,HIGH TENSION,L=330

92190-3707

$12.07

92190A

TUBE,HIGH TENSION,L=210

92190-3708

$12.07

156

BOLT-WP,6X14

156R0614

$3.90

156A

BOLT-WP,6X22

156R0622

$4.09

156B

BOLT-WP

156R0630

$3.60

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER PLAIN 10MM

410B1000

$0.58

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

670

O RING,16MM

670B2016

$1.36

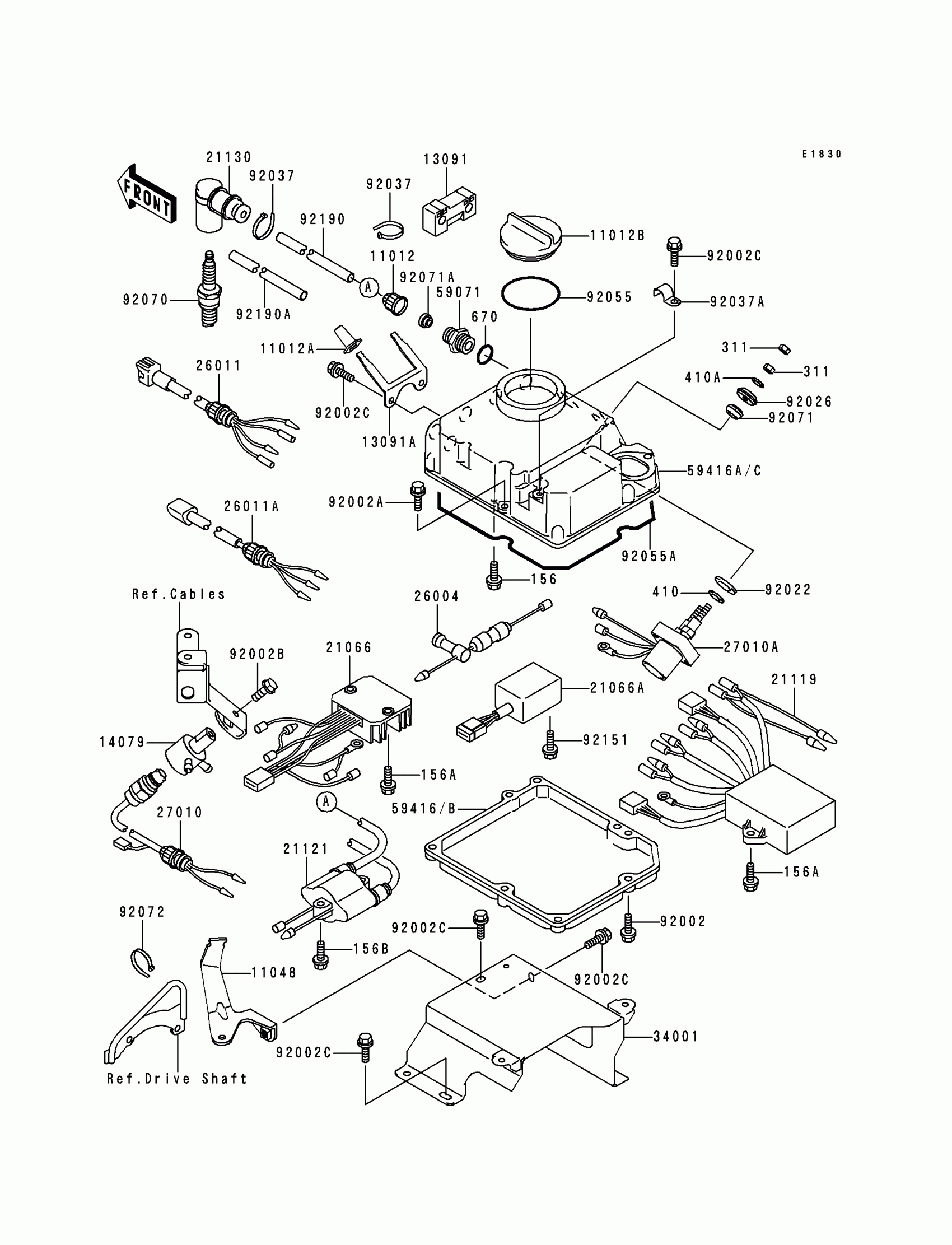

Kawasaki Xi Sport Ignition System Diagram

CAP

CAP,HOLDER

CAP

BRACKET,HIGH TENSION CORD

HOLDER,HIGH TENSION CORD

HOLDER,PLUG CAP

HOLDER-ASSY

REGULATOR-VOLTAGE

REGULATOR-VOLTAGE

IGNITER

COIL-IGNITION

CAP-SPARK PLUG

FUSE-ASSY

WIRE-LEAD

WIRE-LEAD

SWITCH

SWITCH,STARTER RELAY

STAND,ELECTRIC CASE

JOINT

CASE-ELECTRIC,LWR

CASE-ELECTRIC,UPP

BOLT,6X25

BOLT,6X35

BOLT,6X16

BOLT,6X12

WASHER

SPACER

CLAMP

CLAMP

RING-O

RING-O,ELECTRIC CASE

PLUG-SPARK,BR8ES(NGK),SOLID

GROMMET

GROMMET

BAND,L=201

BOLT,6X12

TUBE,HIGH TENSION,L=330

TUBE,HIGH TENSION,L=210

BOLT-WP,6X14

BOLT-WP,6X22

BOLT-WP

NUT-HEX,6MM

WASHER PLAIN 10MM

WASHER-PLAIN-SMALL,6MM

O RING,16MM
