Description

Price

155

BOLT-WSP-SMALL,8X35

155R0835

$8.19

220

SCREW-PAN-CROS,5X30

220R0530

$4.87

220A

SCREW-PAN-CROS

220R0630

$5.59

13107

SHAFT

13107-3740

$8.58

13151

SWITCH-COMP,STOP&START

13151-3718

Unavailable

39058A

HANDLE-COMP,GRAY

39058-3721-RA

Unavailable

39063

HOUSING-CONTROL

39063-3720

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-3717

$111.90

39075

LEVER-THROTTLE

39075-3710

$49.50

39087A

PAD-HANDLE,S.YELLOW

39087-3717-MU

Unavailable

46012

HOLDER-HANDLE,UPP

46012-3720

$16.69

46012A

HOLDER-HANDLE,LWR

46012-3724

$163.07

92002

BOLT,6X12

92002-3763

$4.69

92002A

BOLT,8X25

92002-3774

$7.91

92033

RING-SNAP

92033-3723

$3.29

92072

BAND,L=201

92072-3778

$1.84

92072A

BAND,TETHER SWITCH

92072-3784

$59.26

92144

SPRING

92144-3749

$4.26

92200

WASHER

92200-3738

$3.32

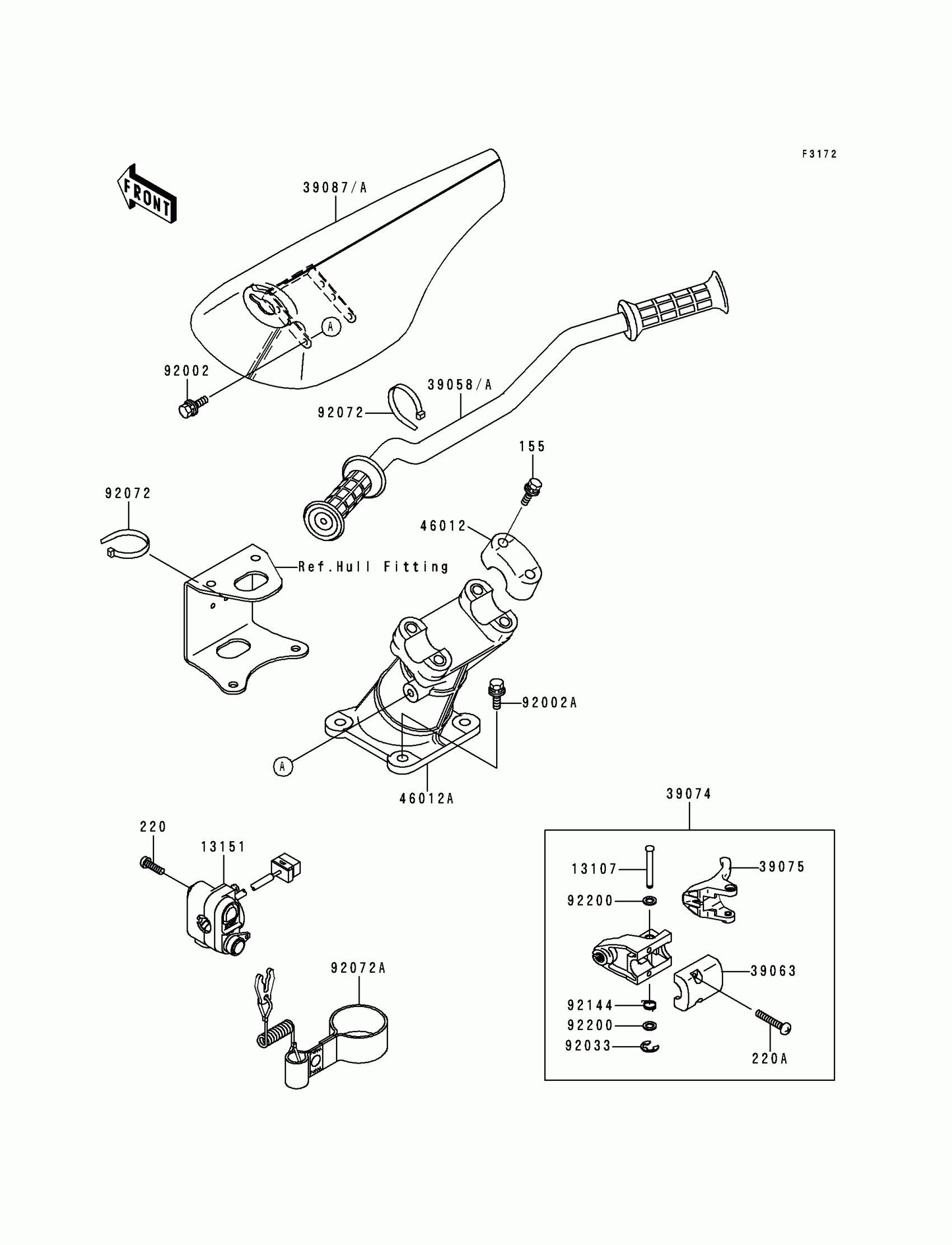

Kawasaki Xi Sport Handlebar Diagram

BOLT-WSP-SMALL,8X35

SCREW-PAN-CROS,5X30

SCREW-PAN-CROS

SHAFT

SWITCH-COMP,STOP&START

HANDLE-COMP,GRAY

HOUSING-CONTROL

LEVER-ASSY-THROTTLE

LEVER-THROTTLE

PAD-HANDLE,S.YELLOW

HOLDER-HANDLE,UPP

HOLDER-HANDLE,LWR

BOLT,6X12

BOLT,8X25

RING-SNAP

BAND,L=201

BAND,TETHER SWITCH

SPRING

WASHER
