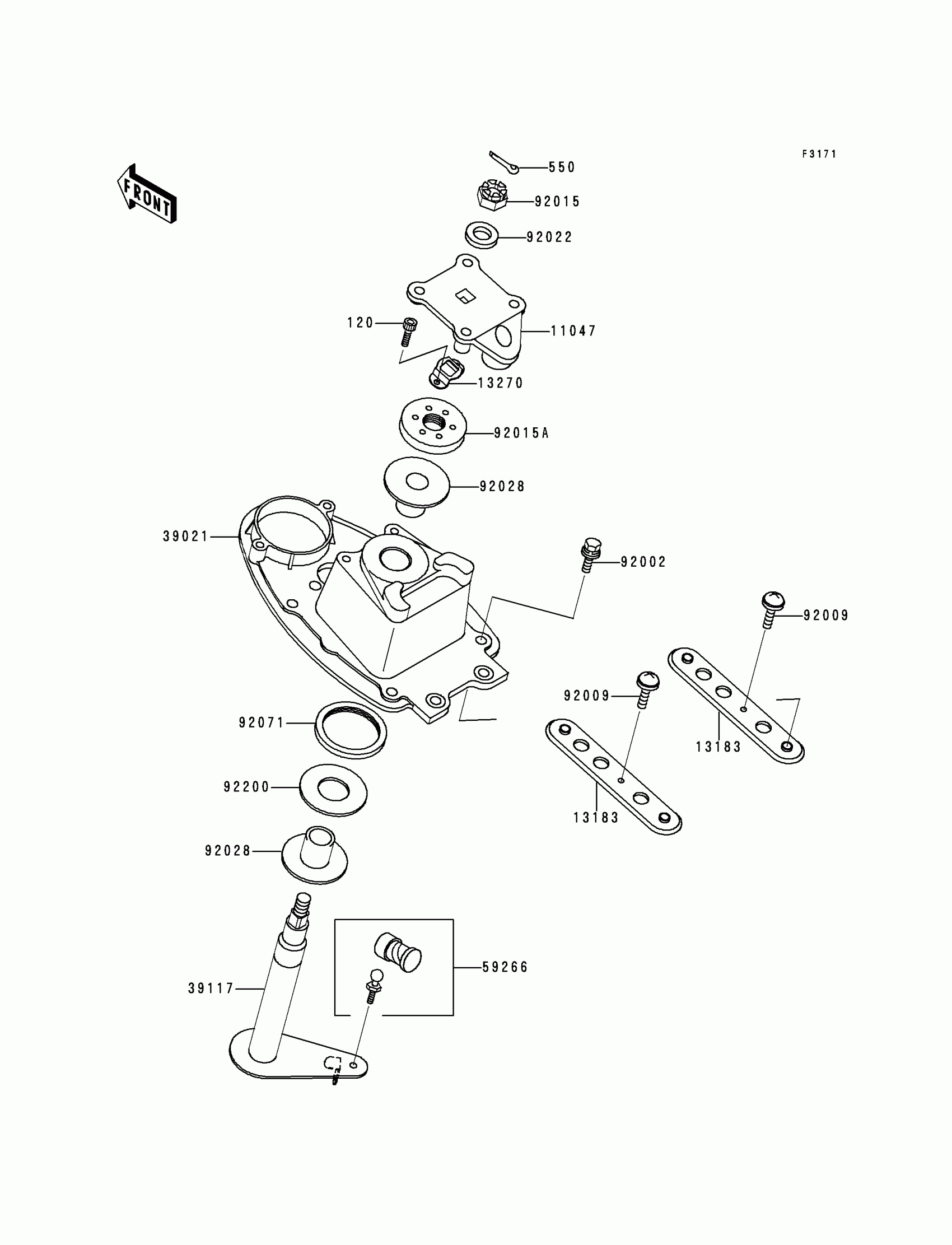

Kawasaki Xi Sport Handle Pole Diagram

Description

Price

120

BOLT-SOCKET,5X10

120R0510

$3.94

550

PIN-COTTER,3X35

550S3035

$4.22

11047

BRACKET,HANDLE HOLDER

11047-3759

$107.88

13183

PLATE,HANDLE POLE BRACKET

13183-3806

Unavailable

13270

PLATE

13270-3780

$7.98

39021

BRACKET-HANDLE POLE

39021-3704

Unavailable

39117

SHAFT-STRG

39117-3706

Unavailable

59266

JOINT-BALL

59266-3707

$66.16

92002

BOLT,8X25

92002-3774

$7.91

92009

SCREW,5X16

92009-3789

$2.97

92015

NUT,CASTLE,14MM

92015-3805

$35.50

92015A

NUT

92015-3852

$109.82

92022

WASHER,15X34X2.0

92022-3738

$6.57

92028

BUSHING,STEERING

92028-3748

$25.59

92071

GROMMET

92071-3792

$9.34

92200

WASHER,32.5X70X2

92200-3718

$16.69
