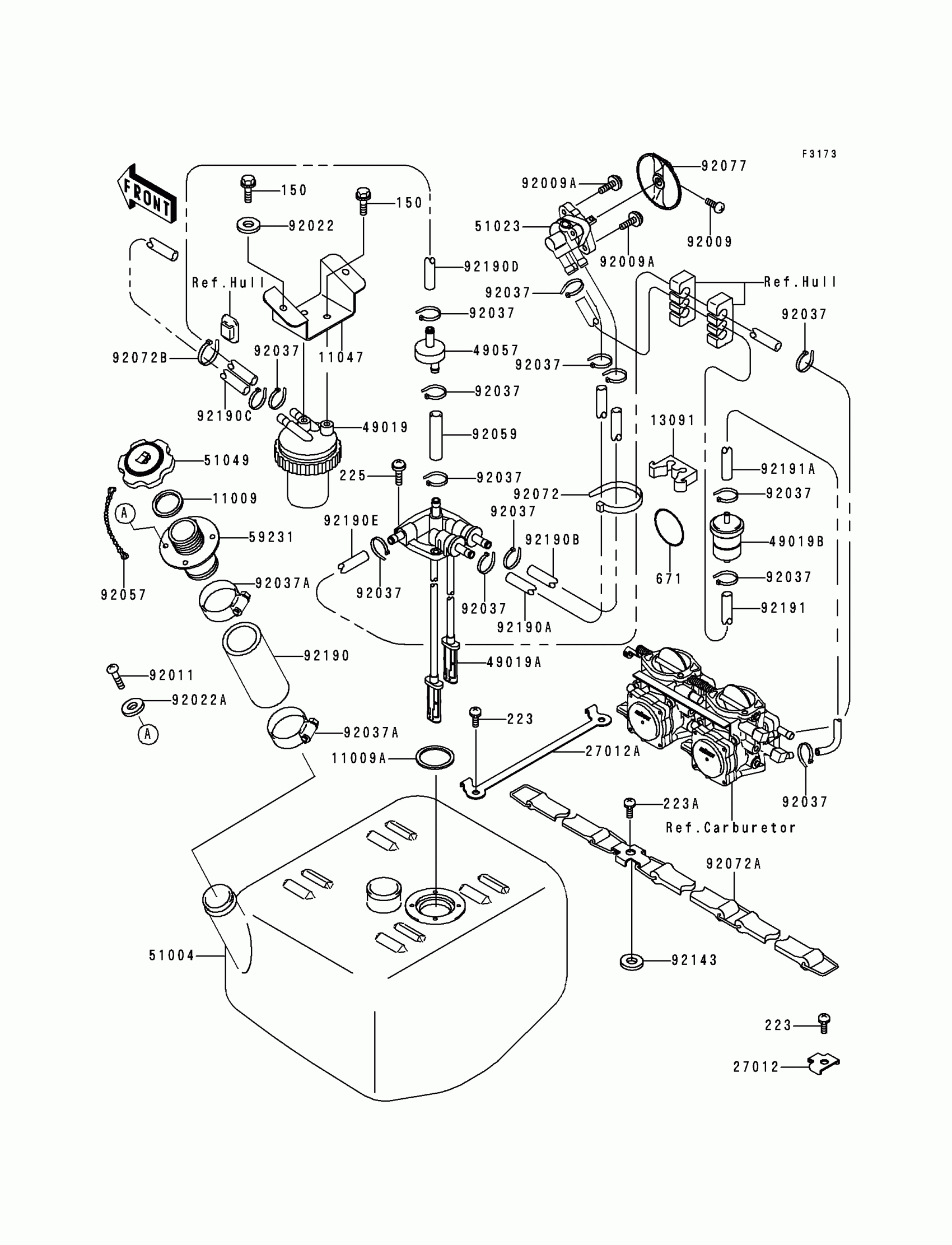

Kawasaki Xi Sport Fuel Tank Diagram

#

Description
Price

150

BOLT-WS,6X14

150R0614

$5.22

223

SCREW-PAN-WS-CROS,6X14

223R0614

Unavailable

223A

SCREW-PAN-WS-CROS,6X20

223R0620

Unavailable

225

SCREW-PAN-WSP-CROS,5X16

225R0516

$4.59

11009

GASKET,TANK CAP

11009-3020

$10.26

11009A

GASKET

11009-3790

Unavailable

11047

BRACKET,FUEL FILTER

11047-3761

Unavailable

13091

HOLDER,FILTER

13091-3795

$9.47

27012

HOOK

27012-3751

$5.25

27012A

HOOK,FIRE EXTINGUISHER

27012-3772

$20.34

49019

FILTER-FUEL

49019-3708

$60.32

49019A

FILTER-FUEL

49019-3710

$76.78

49019B

FILTER-FUEL

49019-3712

$44.32

49057

VALVE-RELIEF

49057-3001

$58.19

51004

TANK-FUEL

51004-3717

Unavailable

51023

TAP-ASSY,FUEL

51023-3718

Unavailable

51049

CAP-TANK,FUEL

51049-3719

$26.28

59231

FILLER,FUEL TANK

59231-3001

$13.40

92009

SCREW,4X8

92009-3729

$6.54

92009A

SCREW,5X16

92009-3789

$2.42

92011

SCREW

92011-562

$1.23

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92022A

WASHER

92022-563

$0.90

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-3009

$3.25

92057

CHAIN,COVER,L=100

92057-3704

$14.56

92059

TUBE,5.8X12.2X55

92059-3026

Unavailable

92072

BAND,L=149

92072-031

$3.81

92072A

BAND,TANK&FIRE EXTINGUISHER

92072-3764

$60.01

92072B

BAND,L=201

92072-3778

$1.61

92077

KNOB

92077-3717

$25.49

92143

COLLAR,7X20X5

92143-3740

Unavailable

92190

TUBE,45X53X115

92190-3856

$13.32

92190A

TUBE,"RES",5.8X10.8X420

92190-3889

$20.95

92190B

TUBE,"ON",5.8X10.8X420

92190-3890

$20.95

92190C

TUBE,5.8X10.8X700

92190-3892

Unavailable

92190D

TUBE,5.8X10.8X540

92190-3893

Unavailable

92190E

TUBE,"RETURN",CARB-TANK

92190-3903

Unavailable

92191

TUBE,TAP-FILTER

92191-3727

Unavailable

92191A

TUBE,FILTER-CARB

92191-3729

$28.86

671

O RING,65MM

671B2565

$6.75
