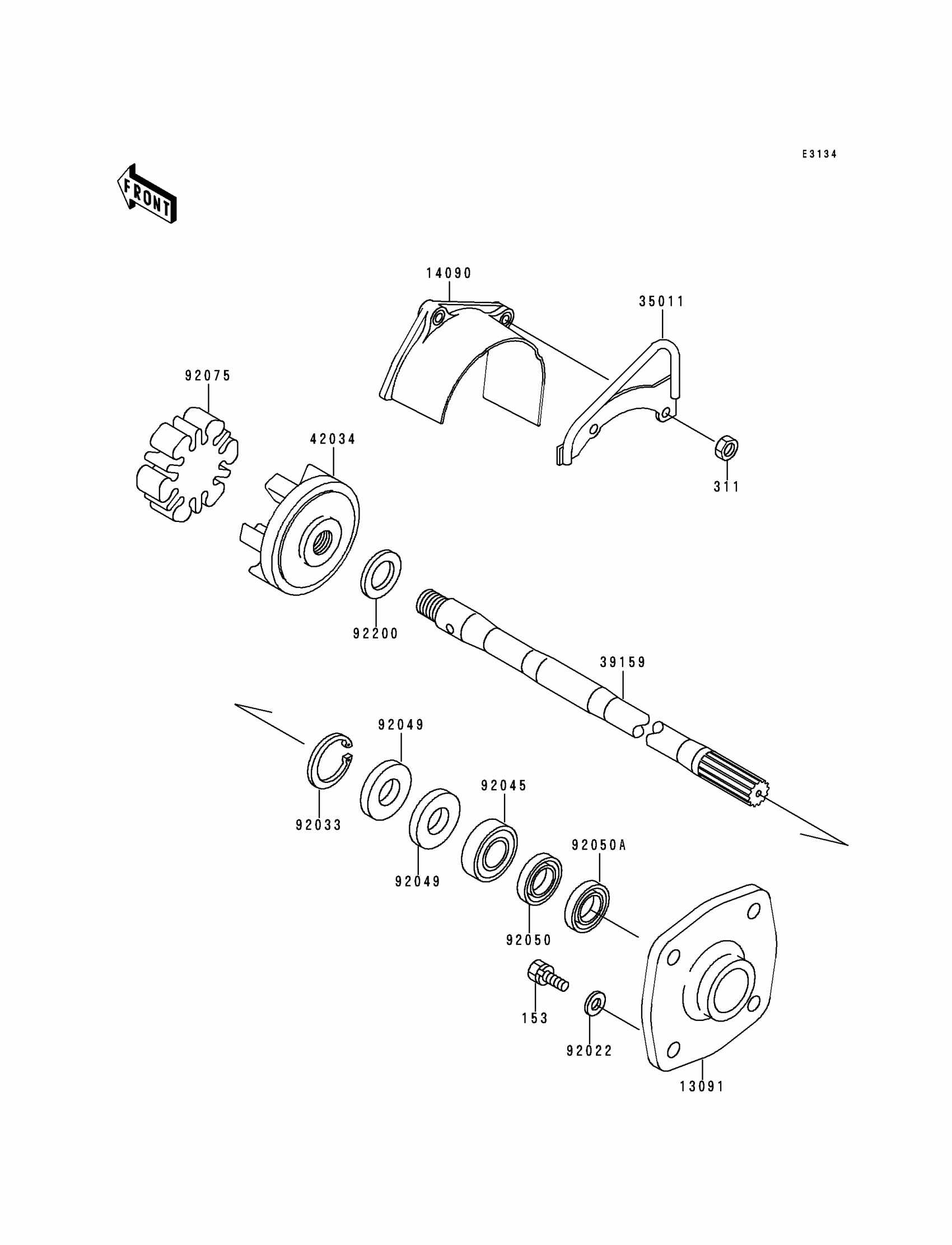

Kawasaki Xi Sport Drive Shaft Diagram

Description

Price

153

BOLT-WS-SMALL,8X25

153R0825

$5.36

311

NUT-HEX,6MM

311R0600

$0.65

13091

HOLDER

13091-3730

Unavailable

14090

COVER,COUPLING

14090-3761

$48.64

35011

STAY

35011-3704

$71.26

39159

SHAFT-DRIVE

39159-3717

$454.70

42034

COUPLING

42034-3707

$56.93

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92033

RING-SNAP,42MM

92033-3713

$13.39

92045

BEARING-BALL,60042RD

92045-3705

$28.70

92049

SEAL-OIL,S620426

92049-3707

$6.04

92050

SEAL-OIL,SCY20368

92050-502

$22.44

92050A

SEAL-OIL,SC20367

92050-503

$20.19

92075

DAMPER,COUPLING

92075-520

$96.96

92200

WASHER,20X28X2.0

92200-3731

$4.59
