TUNNEL 440 XCR SP 0961760 (4931583158A005)

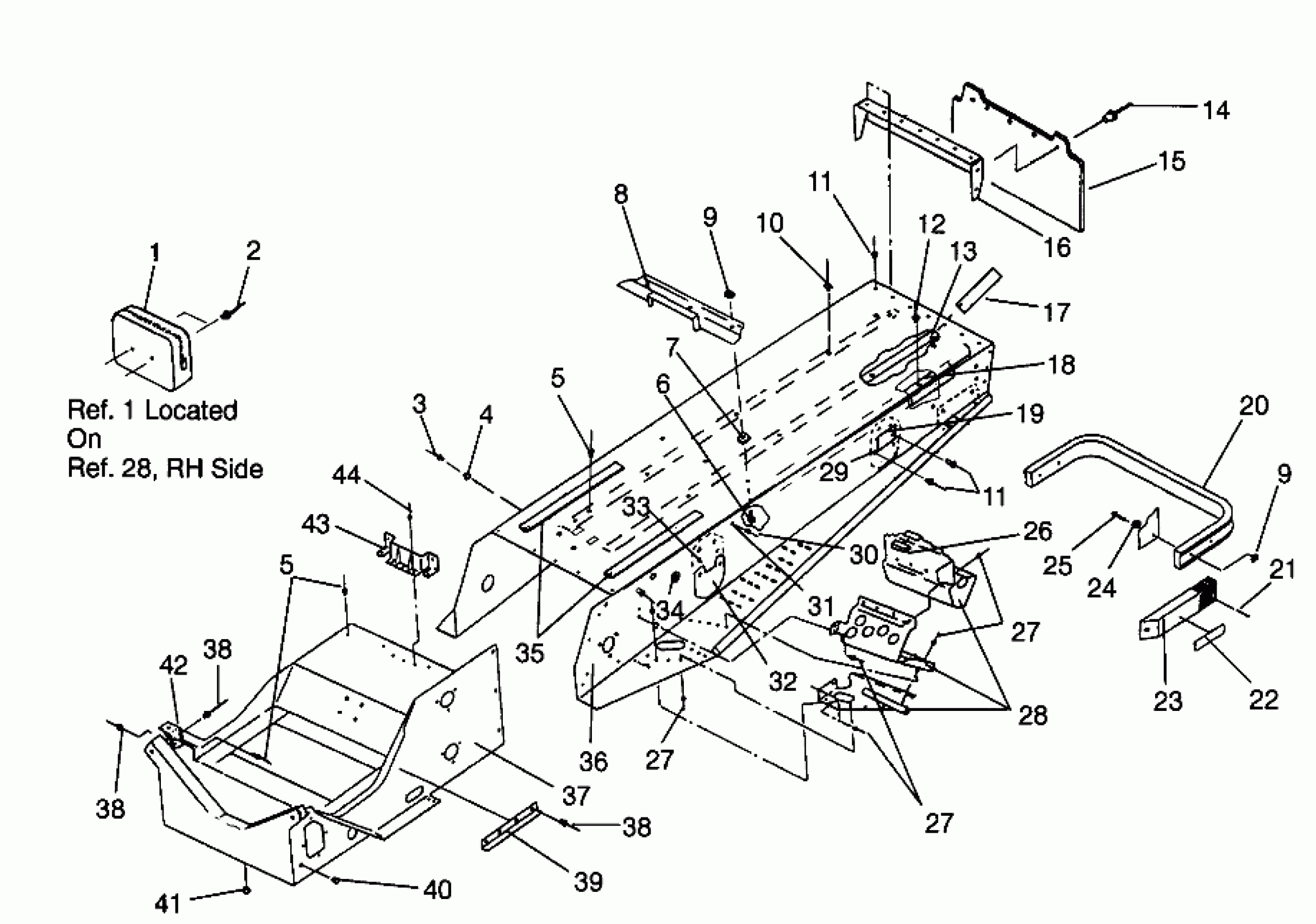

Polaris XCR 440 SP - 0961760 TUNNEL 440 XCR SP 0961760 (4931583158A005) Diagram
#
1
TOOL, ROLL
2690127
Unavailable
1
POUCH,ROLL TOOL
2690126
Unavailable
2
RIVET(50)
7621457
$1.49
3
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
4
SNAP-MALE(10)
7080227
Unavailable
5
RIVET-3/16-.090-.290
7661637
$1.49
5
RIVET-3/16-.090-.290
7661637
$1.49
6
BOLT(10)
7512193
$2.39
7
SPEED NUT(10)
7670021
$6.99
8
STRAP,GASTANK,BLK
1011732-067
Unavailable
9
NUT-LOCK(10)
7542122
$1.49
9
NUT-LOCK(10)
7542122
$1.49
10
RIVET,3/16X.402(50)
7621432
$1.49
11
RIVET ,(50)
7661829
Unavailable
11
RIVET ,(50)
7661829
Unavailable
12
RIVET,(50)
7661825
$1.49
13
STRIP,WEAR
5131241
Unavailable
14
POP RIVET(50)
7621418
$1.49
15
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
16
PANEL,TUNNEL-BACK,BLK.
5240599-067
Unavailable
17
SHIM,WEAR STRIP
5211651
Unavailable
18
BRACE,REINF.TUNNEL
5240242
Unavailable
19
PAD,R.SUSP,OUTER,BLK
5211655-067
Unavailable
20
BUMPER,REAR,BLK.
5224334-067
Unavailable
21
SCREW(10)
7511863
$1.99
22
REFLECTOR RED
2670070
$9.91
23
CAP, BUMPER, BLK.
5430930-070
Unavailable
24
WASHER(10)
7558301
$1.49
25
BOLT(10)
7512240
$3.99
26
EXTRUSION,CLUTCHGUARD
5521238
$6.46
27
RIVET,INTERLOCK,B(50)
7661638
$1.49
27
RIVET,INTERLOCK,B(50)
7661638
$1.49
27
RIVET,INTERLOCK,B(50)
7661638
$1.49
28
FOOTREST ASM,LH
1012450
Unavailable
28
FOOTREST ASM,RH,SP,BLK
1012447
Unavailable
29
PAD,LH,R.SUSP.
5241268-067
Unavailable
29
PAD,RH,R.SUSP.
5241269-067
Unavailable
30
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
31
SNAP-MALE(10)
7080227
Unavailable
32
PAD,FRT.SUSP,OUTER,BLK
5211654-067
Unavailable
33
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
33
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
34
GROMMET
5410720
$5.75
35
PAD-GAS TANK
5810063
$4.95
36
TUNNEL ASM,LIQ,SP,BLK (Incl. 6, 16, 29, 32)
1012444
$366.65
37
BULKHEAD,CRC,BLK
1012445-067
$396.83
38
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
38
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
38
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
39
GUARD,ADAPTER,DRIVE
5240441
Unavailable
40
PLUG, HOLE(10)
7080416
$5.65
41
PLUG-HOLE
7080398
$4.84
42
SUPPORT,MUFFLER,BLK. Substituted by 1260724-067
1260657-067
Unavailable
43
BRKT,GASTANK,WELD.
1011733-067
$19.73
44
RIVET(50)
7621301
$3.99
