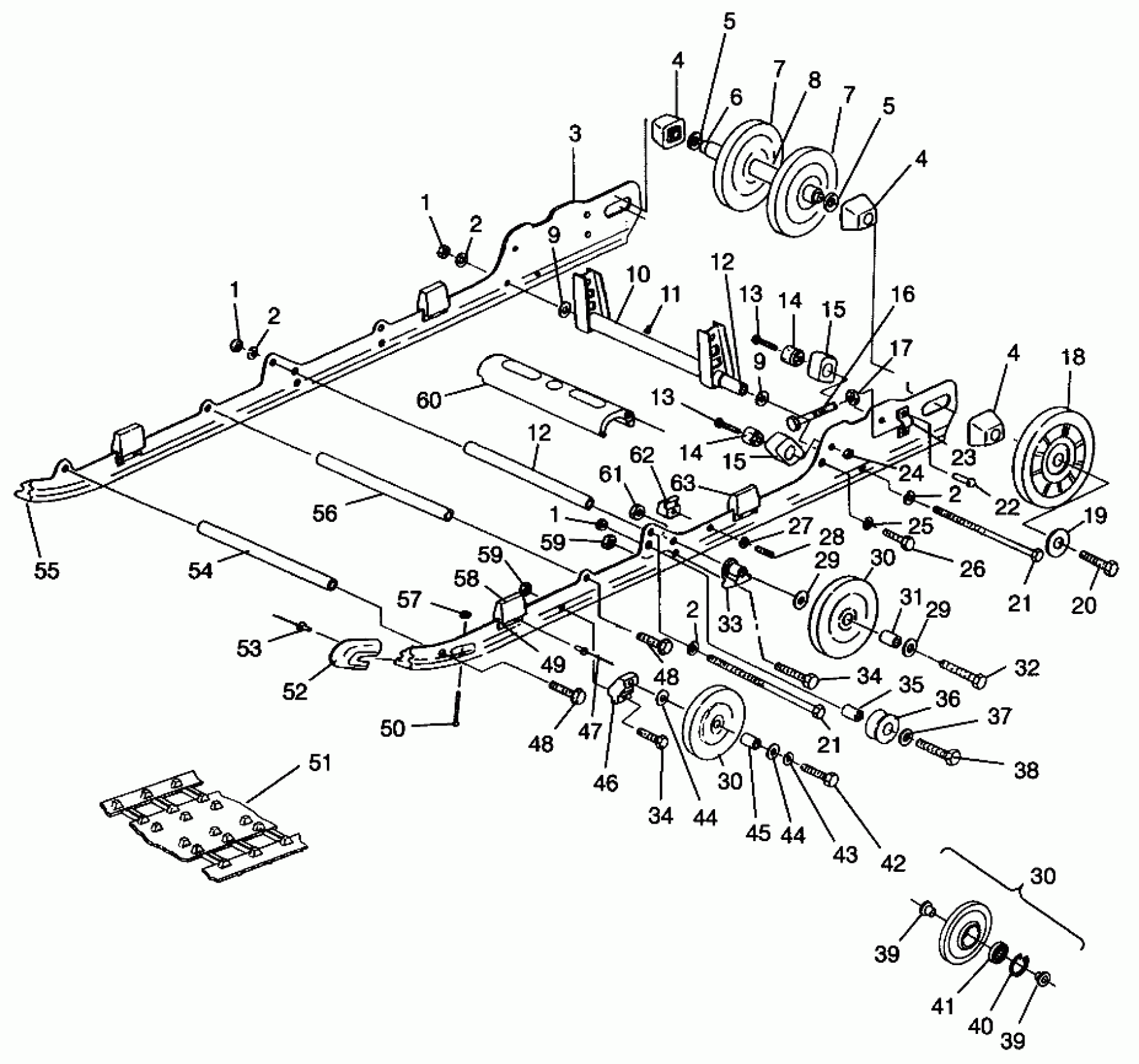

Polaris XCR 440 SP - 0961760 SUSPENSION 440 XCR SP 0961760 (4931583158B009) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

3

RAIL ASM,LH,(XTRA 10),H.D. (Incl .23, 52, 58, 63)

1541041

Unavailable

3

RAIL ASM,RH,(XTRA 10),H.D. (Incl. 23, 52, 58, 63)

1541042

Unavailable

4

SPACER,OUTER IDLER Substituted by 5432434

5431880

Unavailable

4

SPACER,OUTER IDLER Substituted by 5432434

5431880

Unavailable

4

SPACER,OUTER IDLER Substituted by 5432434

5431880

Unavailable

5

BUSHING(10)

7555918

$1.59

5

BUSHING(10)

7555918

$1.59

6

SHAFT,IDLER

5020744

$59.99

7

WHEEL,IDLER,BLK(20MM)

1594056-070

$48.56

7

WHEEL,IDLER,BLK(20MM)

1594056-070

$48.56

8

SPACER-IDLER, CENTER

5333283

$19.99

9

WASHER(10)

7555893

$1.49

9

WASHER(10)

7555893

$1.49

10

ARM,R.PIVOT

1540982-067

$38.05

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

12

SHAFT

5333404

$24.27

12

SHAFT

5333404

$24.27

13

BOLT(10)

7515537

$10.99

13

BOLT(10)

7515537

$10.99

14

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

14

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

15

BUMPER,F.PIVOT ARM

5410925

$12.94

15

BUMPER,F.PIVOT ARM

5410925

$12.94

16

BOLT, ADJUSTER(10)

7515455

$29.99

17

NUT(10)

7542440

Unavailable

18

WHEEL,IDLER,RED(20 MM) (Red)

1594056-136

$48.56

19

WASHER(10) Substituted by 7556130

7571629

Unavailable

20

BOLT(10)

7515526

$1.19

21

SCREW Substituted by 7517353

7515549

Unavailable

21

SCREW Substituted by 7517353

7515549

Unavailable

22

RIVET,(50)

7621501

$2.39

23

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

24

NUT LOCK(10)

7542403

$3.99

25

WASHER LOCK(10)

7553101

$3.99

26

BOLT(10)

7512539

$3.99

27

WASHER, LOCK(10)

7552615

$4.99

28

SCREW(10)

7512014

$3.59

29

WASHER, FLAT(10)

7555852

$2.39

29

WASHER, FLAT(10)

7555852

$2.39

30

WHEEL, IDLER (Incl. 39-41)

1543018

$56.65

30

WHEEL, IDLER (Incl. 39-41)

1543018

$56.65

30

WHEEL, IDLER (Incl. 39-41)

1543018

$56.65

31

SPACER, WHEEL

5333116

$7.99

32

BOLT(10)

7512538

$6.39

33

SPACER

5630399

$11.99

34

BOLT(10)

7512404

$3.99

34

BOLT(10)

7512404

$3.99

35

Spacer

5332787

Unavailable

36

ROLLER,SPRING

5432170

Unavailable

37

WASHER(10)

7555743

Unavailable

38

BOLT Substituted by 7515491

7515433

$1.59

39

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

39

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

40

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

41

BEARING (1 per Wheel)

3514303

$11.99

42

BOLT(10)

7512659

$7.99

43

LOCK WASHER(10)

7553201

$3.99

44

WASHER(10)

7555804

$3.99

44

WASHER(10)

7555804

$3.99

45

SPACER

5332786

$7.99

46

BRACKET,BOGIE WHEEL

5130570

$48.56

47

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

48

BOLT

7515542

Unavailable

48

BOLT

7515542

Unavailable

49

REINF., BUMPER

5222629

$13.75

50

SCREW(10)

7515190

Unavailable

51

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

51

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

51

TRACK,121",CAMO. Substituted by 5411057

5411005

Unavailable

52

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

53

RIVET(50)

7621435

$1.49

54

SHAFT,PIVOT ARM

5020723

$29.99

55

SLIDER,LH,(XTRA 10)

5521374

$143.99

55

SLIDER,RH,(XTRA 10)

5521375

$142.86

56

SHAFT,PIVOT ARM

5020724

$29.99

57

NUT-LOCK(10)

7542122

$1.49

58

BUMPER,SUSPENSION

5811097

Unavailable

59

NUT-LOCK(10)

7542439

$1.49

59

NUT-LOCK(10)

7542439

$1.49

60

BRKT,RESERVOIR MT.

5131307

Unavailable

61

NUT, NYLOCK(10)

7542525

$4.79

62

CLAMP, HOSE

5131306

Unavailable

63

BUMPER, RAIL NOTE: For Fox Shock replacement parts see pages - .

5810554

$7.27
