Description

Price

1

CLIP(10)

7080278

$2.63

2

HOOP,STEERING

1011513-067

Unavailable

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

NUT-LOCK(10)

7542122

$1.49

5

BOLT-CARRIAGE(10)

7512275

$3.99

6

STOP, TORQUE

1012411-067

Unavailable

7

NUT, JAM(10)

7542432

$3.99

8

MT,RUBBER,TORQUE STOP

3110041

Unavailable

9

SCREW(10)

7512082

Unavailable

10

PLATE,BOOT,BLK

5211679-067

Unavailable

11

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

12

NUT HEX(10)

7542401

$2.39

13

BOOT,TIE ROD

5410954

Unavailable

14

ROD, TIE,BLK Substituted by 5020857-067

5020852-067

Unavailable

15

INSERT, BRASS(10)

7541932

$3.67

16

NUT

7542424

$1.49

16

NUT

7542424

$1.49

16

NUT

7542424

$1.49

17

ROD END, LH.

7060164

$48.56

18

NUT LOCK(10)

7542403

$3.99

18

NUT LOCK(10)

7542403

$3.99

18

NUT LOCK(10)

7542403

$3.99

19

BUSHING

3563907

$3.99

19

IDLER ARM ASM. (Incl. Bushing & 20)

1822242

$26.38

20

ZERK,FITTING,THREADED(10)

7080433

$1.49

21

SPEED NUT(10)

7670021

$6.99

22

ARM,PITMAN ASM. (Incl. Bushing & 20)

1822241

Unavailable

23

ROD END, RH.

7060165

$48.56

23

ROD END, LH.

7060164

$48.56

23

ROD END, RH.

7060165

$48.56

23

ROD END, LH.

7060164

$48.56

24

BOLT(10)

7515528

$8.79

25

RACK ASM,STRG.

1822245

$74.39

26

WSHR-.813X.406X.105-Y

7555832

$2.39

27

BOLT(10)

7515415

$1.49

28

BOLT(10)

7512551

Unavailable

29

WASHER,WAVE(10)

7555735

$3.99

30

NUT-LOCK(10)

7542439

$1.49

31

SPACER, RACK

5010372

Unavailable

32

O-RING

5410955

Unavailable

33

SPACER

5010341

Unavailable

34

WASHER(10)

7555883

$3.99

35

NUT, LOCK,(10)

7542503

$10.39

36

BOLT(10)

7512404

$3.99

36

BOLT(10)

7512404

$3.99

37

ROD,DRAG LINK

5333321

Unavailable

38

FITTING,LUB/VEN(10)

7080561

$4.79

39

NUT-5/16-18 NYLOK-Y

7542324

$1.49

40

BOLT-CARRIAGE(10)

7512263

$3.99

41

BOLT(10) Substituted by 7512377

7512394

Unavailable

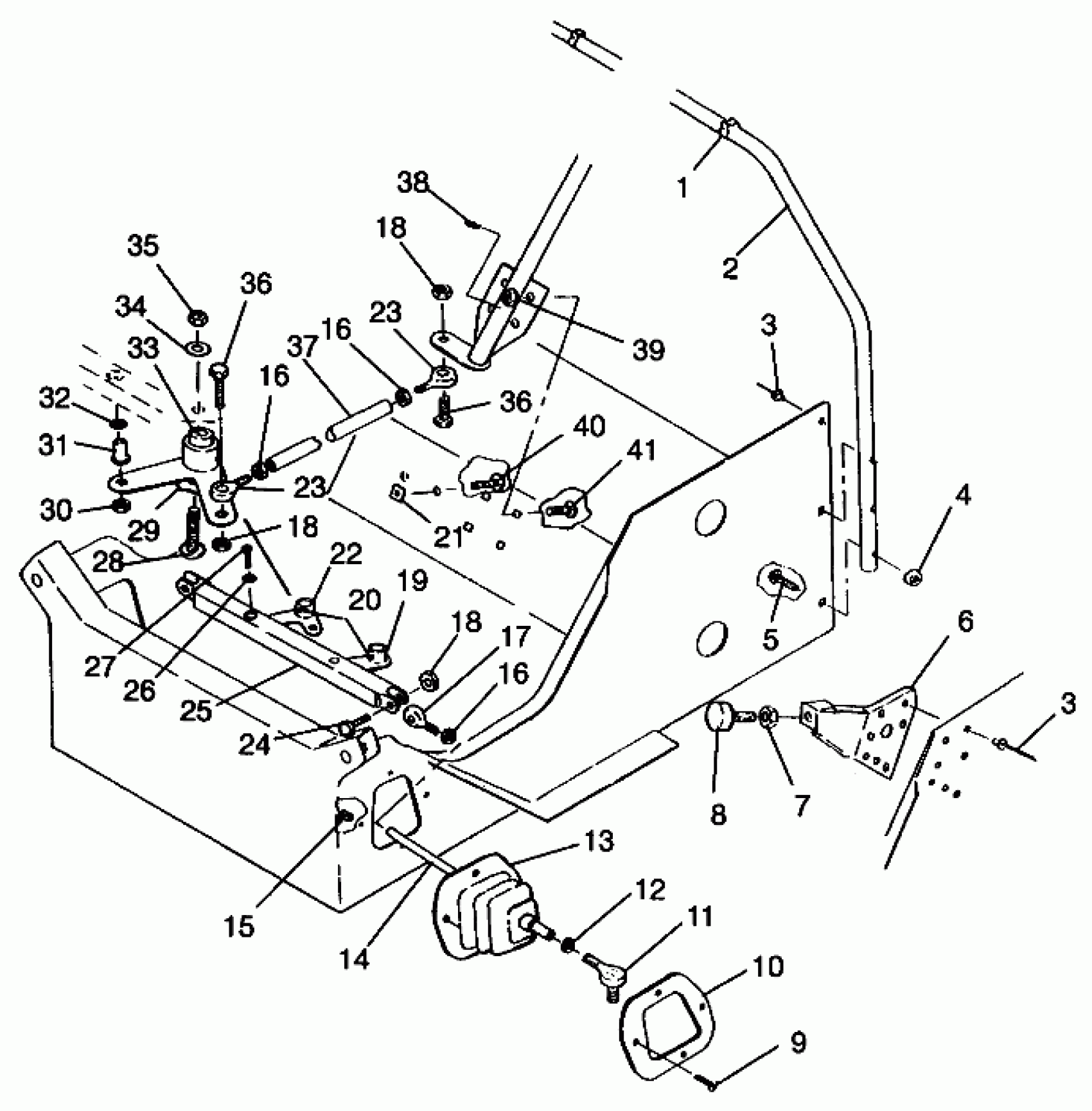

Polaris XCR 440 SP - 0961760 STEERING 440 XCR SP 0961760 (4931583158B004) Diagram

CLIP(10)

HOOP,STEERING

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

NUT-LOCK(10)

BOLT-CARRIAGE(10)

STOP, TORQUE

NUT, JAM(10)

MT,RUBBER,TORQUE STOP

SCREW(10)

PLATE,BOOT,BLK

ROD-END,RH,3/8,HI-ANGLE

NUT HEX(10)

BOOT,TIE ROD

ROD, TIE,BLK Substituted by 5020857-067

INSERT, BRASS(10)

NUT

NUT

NUT

ROD END, LH.

NUT LOCK(10)

NUT LOCK(10)

NUT LOCK(10)

BUSHING

IDLER ARM ASM. (Incl. Bushing & 20)

ZERK,FITTING,THREADED(10)

SPEED NUT(10)

ARM,PITMAN ASM. (Incl. Bushing & 20)

ROD END, RH.

ROD END, LH.

ROD END, RH.

ROD END, LH.

BOLT(10)

RACK ASM,STRG.

WSHR-.813X.406X.105-Y

BOLT(10)

BOLT(10)

WASHER,WAVE(10)

NUT-LOCK(10)

SPACER, RACK

O-RING

SPACER

WASHER(10)

NUT, LOCK,(10)

BOLT(10)

BOLT(10)

ROD,DRAG LINK

FITTING,LUB/VEN(10)

NUT-5/16-18 NYLOK-Y

BOLT-CARRIAGE(10)

BOLT(10) Substituted by 7512377
