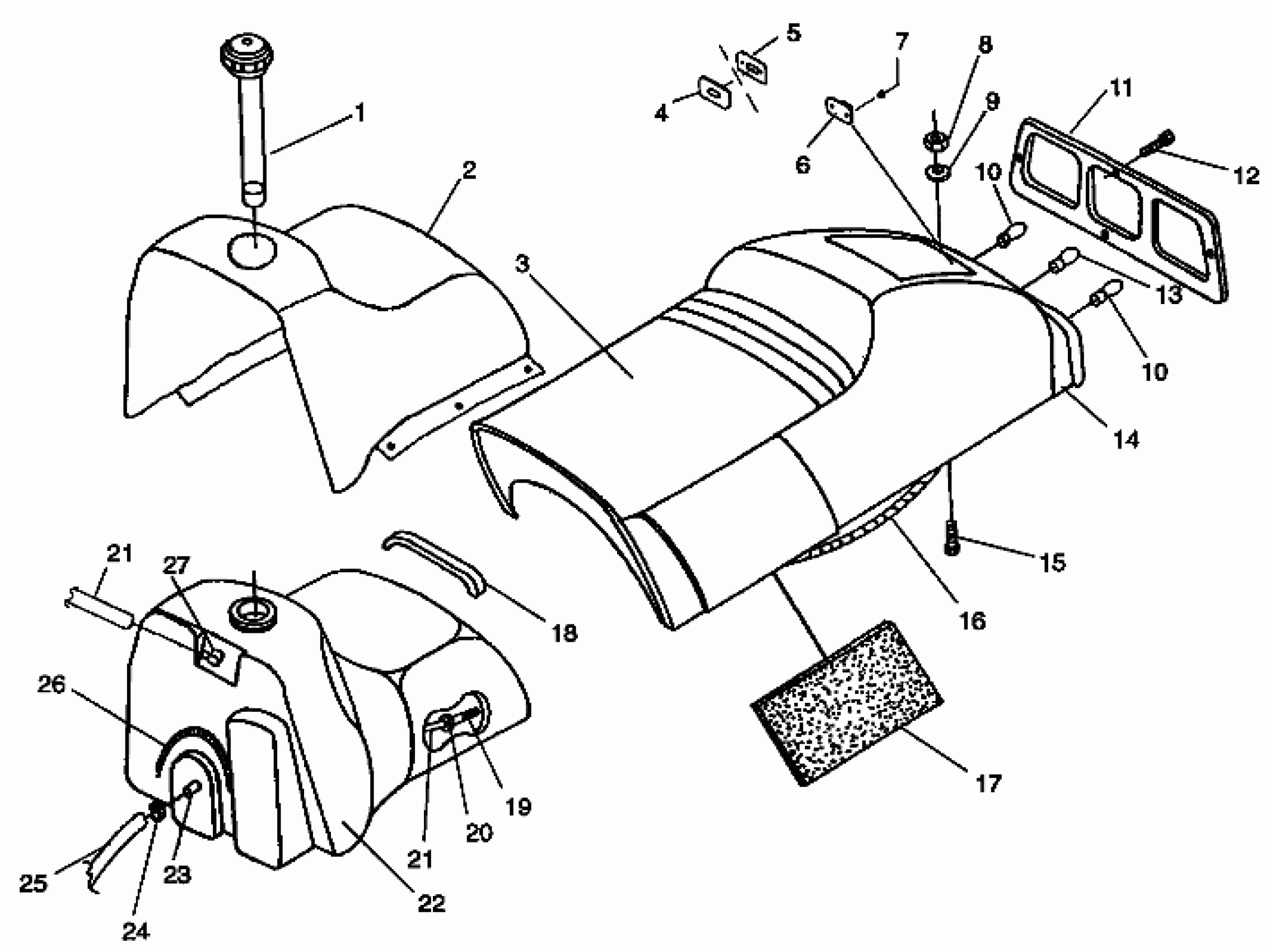

Polaris XCR 440 SP - 0961760 SEAT and GAS TANK 440 XCR SP 0961760 (4931583158A007) Diagram

#

Description
Price

1

CAP,GAS,W/GAUGE,2 1/2"

2511277

Unavailable

2

CVR.ASM,TANK,SP Substituted by 2682410

2682130

Unavailable

3

COVER,SEAT,2 PC,(SP)

2681923

Unavailable

3

SEAT ASM (Incl. 3-6, 9-13, 15)

2681924

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

6

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

7

RIVET(50)

7621337

$1.49

8

NUT-LOCK(10)

7542122

$1.49

9

WASHER,TOOTHED,DISH(10)

7571630

Unavailable

10

BULB,TAILLIGHT(10)

4030024

$4.84

10

BULB,TAILLIGHT(10)

4030024

$4.84

11

LENS,TAILLIGHT

5430423

Unavailable

12

SCREW(10)

7511840

Unavailable

13

Bulb, Brakelight

4030045

Unavailable

14

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

15

BOLT(10)

7512193

$2.39

16

Harness, Taillight

2460399

Unavailable

17

FOAM,SEAT PAD

5431981

Unavailable

18

CUSHION,TANK H.D.

5420126

Unavailable

19

FUELPICKUP,W/STRAINER

7052037

$12.94

20

RING, COMPRESSION(10)

7080402

$1.60

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

22

TANK ASM,FUEL,(SP) Substituted by 2201154 (Incl. 19-23) NOTE: Ref. 27 (PN 7052065) must be ordered seperately to fit the tank into the chassis.

2511273

Unavailable

23

FITTING - OUTLET(10)

7052023

$24.99

24

HOSE CLAMP, RED (Red)

7080003

$1.49

25

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

26

SPRING,TANK,(10)

7042020

$13.75

27

FITTING,90 DEGREE

7052065

$7.19
