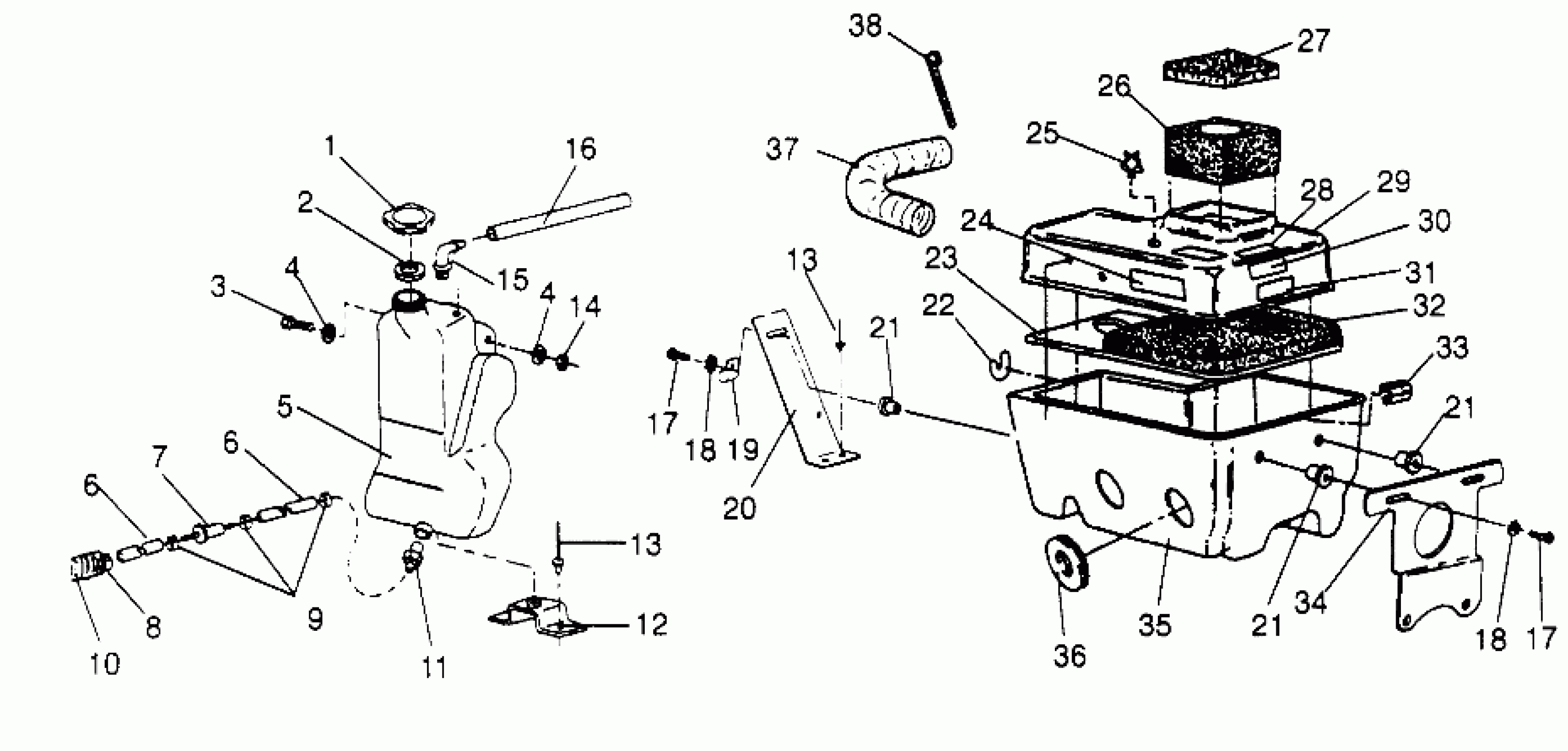

Polaris XCR 440 SP - 0961760 OIL TANK/AIR BOX 440 XCR SP 0961760 (4931583158C003) Diagram

#

Description
Price

1

CAP,OIL TANK

5430779

$14.56

2

GASKET-OIL CAP

5810141

$2.39

3

BOLT(10)

7512103

$3.19

4

WASHER,WROUGHT(10)

7558302

$1.59

4

WASHER,WROUGHT(10)

7558302

$1.59

5

TANK, OIL

5430921

Unavailable

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

8

CLAMP-HOSE,(10)

7080236

$1.59

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

10

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

11

FITTING, OUTLET

7052042

$8.99

12

BRKT,OILTANK,COINED (Coined)

5241334

$9.70

13

RIVET-3/16-.090-.290

7661637

$1.49

13

RIVET-3/16-.090-.290

7661637

$1.49

14

NUT-LOCK(10)

7542122

$1.49

15

FITTING,90 DEG,1/8,(10)

7052095

$4.79

16

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

17

SCREW(10)

7512279

$1.49

17

SCREW(10)

7512279

$1.49

18

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

18

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

19

CLAMP(10)

7080583

Unavailable

20

BRKT,AIR SILENCER

5240823-067

Unavailable

21

NUT-WELL(10)

7541923

$5.59

21

NUT-WELL(10)

7541923

$5.59

21

NUT-WELL(10)

7541923

$5.59

22

DECAL,SHUT-OFF VALVE [No Longer Available]

7072151

Unavailable

23

PLATE,AIR SILENCER

5850075

$24.27

24

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

25

CLAMP,WIRE ROUTING(10)

7080409

$2.39

26

FOAM, INTAKE

5810468

Unavailable

27

FOAM,INTAKE,TOP

5810457

Unavailable

28

DECAL,CAUTION,AIRBOX

7075351

Unavailable

29

COVER,SILENCER,DRILLED

5432329

$14.25

30

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

31

DECAL, GREASING [No Longer Available]

7073426

$7.27

32

BAFFLE ASM. (Incl. 23)

1253102

$64.75

33

CLIP, AIR BOX,(10)

7670055

$7.99

34

BRKT,AIR BOX

5241080-067

Unavailable

35

SILENCER,INTAKE,DRILLED

5431925

Unavailable

36

BOOT,CARB,34 MM.ALUM.BODY

5410878

Unavailable

37

HOSE-INLET

5410251

Unavailable

38

STRAP, BLK

7080272

Unavailable
