HOOD 440 XCR SP 0961760 (4931583158A010)

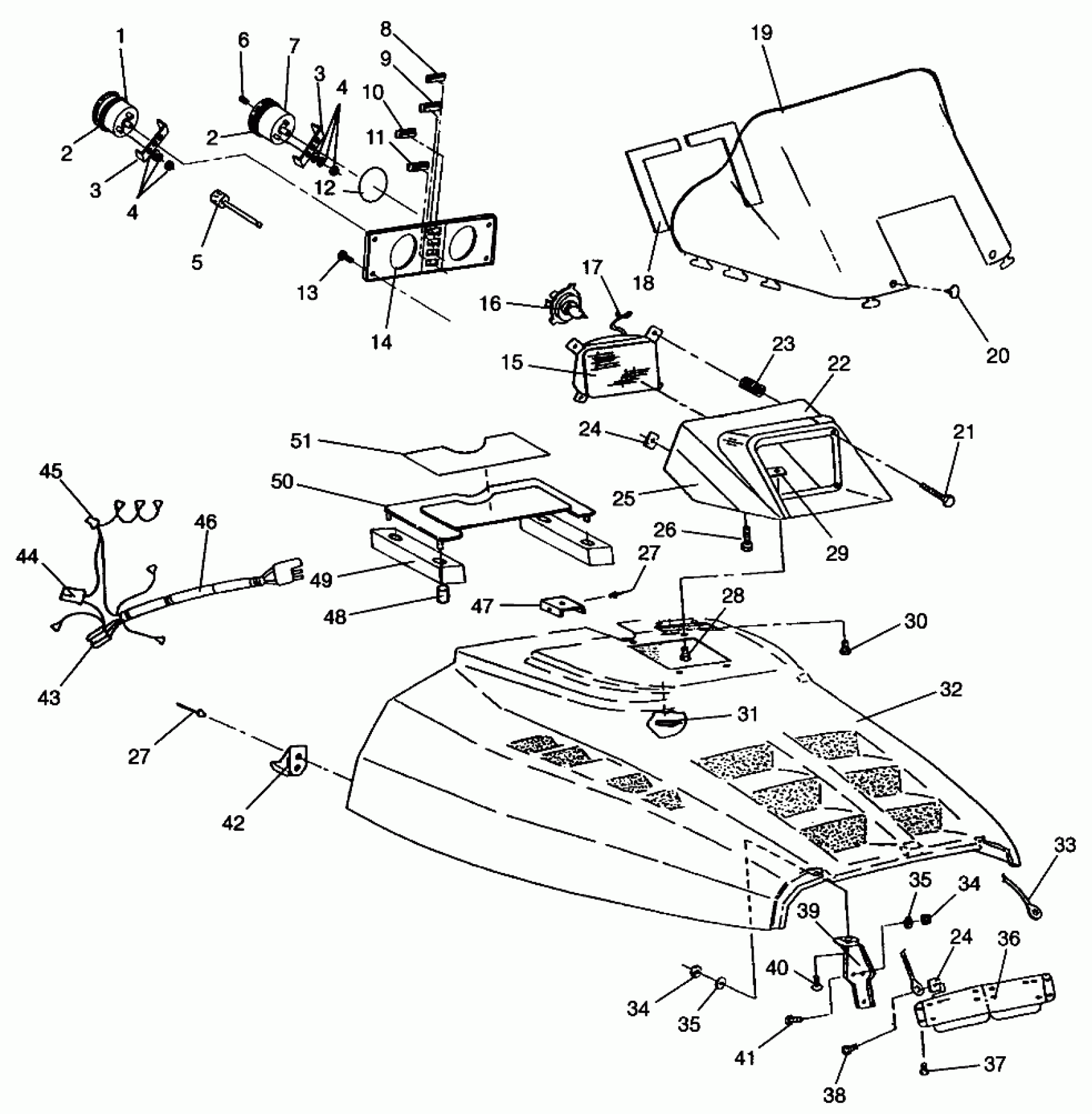

Polaris XCR 440 SP - 0961760 HOOD 440 XCR SP 0961760 (4931583158A010) Diagram
#
1
BULB TAILLIGHT(10)
4030015
$4.03
1
TACHOMETER,BACKLIT(2P) (Incl. 2-4 & Bulb)
3280149
Unavailable
2
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
2
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
3
BRKT,SPEEDO/TACH
3280153
Unavailable
3
BRKT,SPEEDO/TACH
3280153
Unavailable
4
WASHER,FLAT,(10)
3280157
$2.39
4
Nut
3280158
Unavailable
4
WASHER,SPLIT LOCK
3280156
$1.49
4
WASHER,FLAT,(10)
3280157
$2.39
4
Nut
3280158
Unavailable
4
WASHER,SPLIT LOCK
3280156
$1.49
5
CABLE,SPEEDO. (In Parts Bag)
3280094
$60.70
6
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
7
SPEEDOMETER,BACKLIT (In Parts Bag) (Incl.2-4 & Bulb)
3280148
Unavailable
8
INDICATOR'TEMP'WARN.
4040011
$32.37
9
PLUG,INDIC.HOLE
5430967
$5.65
10
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
11
INDICATOR,'ACC'WARN.
4040014
Unavailable
12
PLUG,HOLE,(SKS)
7080444
Unavailable
13
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
14
BEZEL, INST.
5430924
Unavailable
15
HEADLIGHT ASM. (Incl. 16, 17)
4032040
Unavailable
16
BULB,QUARTZ.H/L,INDY
2870448
$24.99
17
RETAINER,H/L BULB
4032063
Unavailable
18
PAD,W/S,LH,BLACK
5810437
Unavailable
18
PAD,W/S,RH,BLACK
5810438
$1.67
19
WNDSHLD,CLR,MID,FLARED
5432315
Unavailable
20
RIVET,PLASTI-LOC.(50)
7621509
$1.49
21
SCREW, ADJ.(10)
4032003
Unavailable
22
HSG,INST,TOP,BLK
5430923-070
Unavailable
23
SPRING-ADJ
4032002
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
25
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
26
SCREW(10)
7512009
Unavailable
27
RIVET(50)
7621334
$1.49
27
RIVET(50)
7621334
$1.49
28
SCREW, SEMS(10)
7512283
$3.99
29
NUT, SPEED(10)
7670057
$1.49
30
SCREW(10)
7511877
Unavailable
31
RETAINER,WINDSHIELD,(10)
5410970
$1.49
32
HOOD ASM,(440 SP),WHITE Substituted by 2631770-133 (Incl. Foil, Foam)
2631770
Unavailable
33
CABLE,HD.RETAINER
7080360
$24.27
34
NUT-LOCK(10)
7542122
$1.49
34
NUT-LOCK(10)
7542122
$1.49
35
WASHER,WROUGHT(10)
7558302
$1.59
35
WASHER,WROUGHT(10)
7558302
$1.59
36
PLATE,RE-INF.,(HD.)
5222105
$49.51
37
SCREW(10)
7511861
Unavailable
38
SCREW(10)
7511989
Unavailable
39
HINGE ASM,HD,WHITE
2635005-133
$15.70
40
BOLT-CARRIAGE(10)
7512263
$3.99
41
BOLT(10)
7512193
$2.39
42
CUP, HOOD LATCH,(10)
5430733
$4.84
43
HOUSING
4020052
Unavailable
44
Housing
4020115
$1.59
45
HOUSING
4020114
Unavailable
46
HARNESS,HEADLIGHT
2460382
Unavailable
47
BRACE, HOOD NECK
5241613
$5.75
48
STAND-OFF,EXTENSION
5431685
Unavailable
49
SEAL,INTAKE
5811056
Unavailable
50
PANEL ASM,INTAKE,BLK.METAL. (Incl. 51)
2620103-177
Unavailable
51
DECAL,DASH WARNING Substituted by 7075457
7074883
Unavailable
