FRONT SUSPENSION and SKI 440 XCR SP 0961760 (4931583158B001)

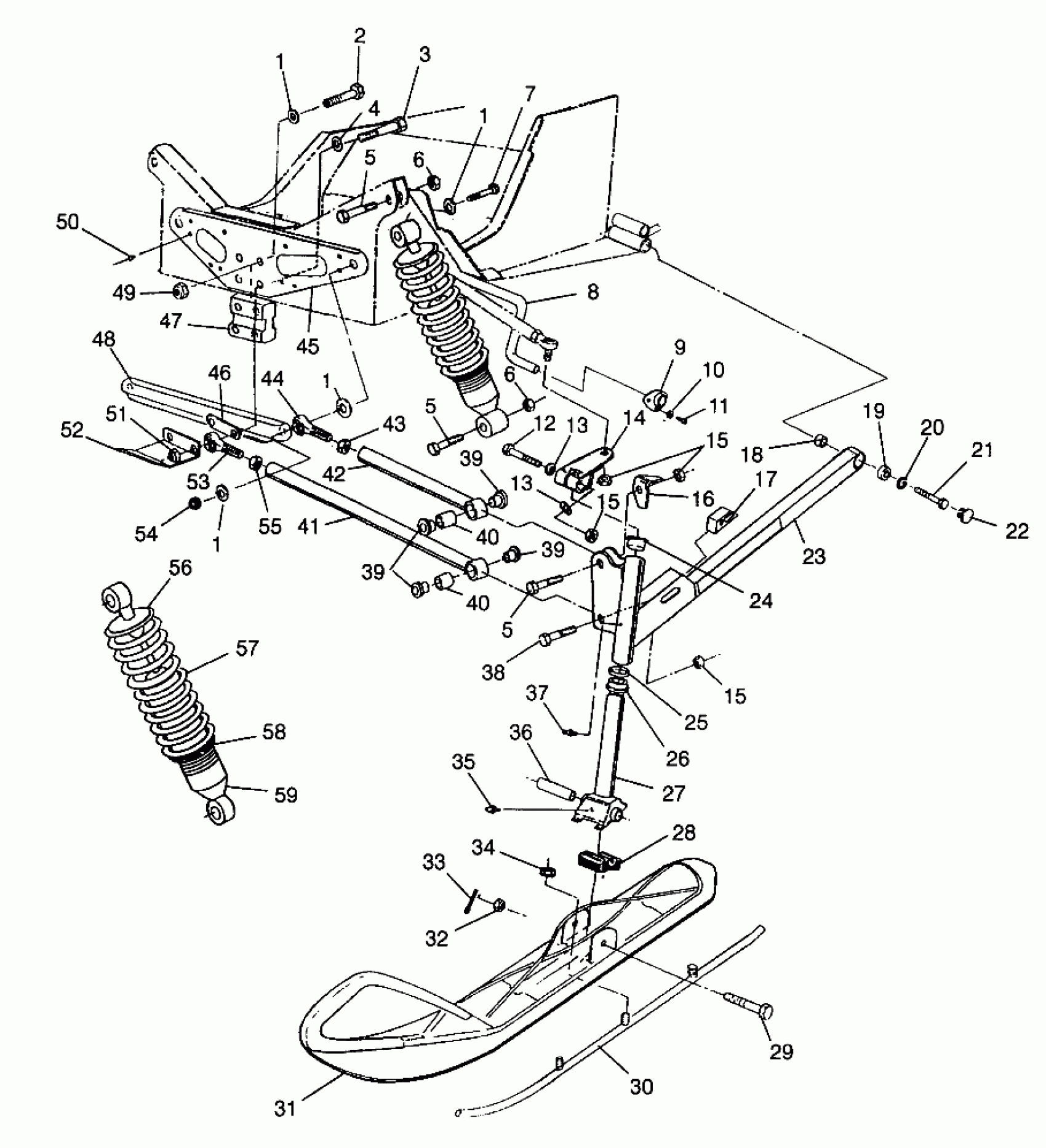

Polaris XCR 440 SP - 0961760 FRONT SUSPENSION and SKI 440 XCR SP 0961760 (4931583158B001) Diagram
#
1
WASHER(10)
7555883
$3.99
1
WASHER(10)
7555883
$3.99
1
WASHER(10)
7555883
$3.99
1
WASHER(10)
7555883
$3.99
2
BOLT(10) Substituted by 7512515
7512545
Unavailable
3
BOLT(10)
7512678
$19.99
4
WASHER THRUST(10)
7558702
$1.59
5
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
BOLT(10) Substituted by 7515415
7515515
Unavailable
6
NUT, NYLOC(10)
7542453
Unavailable
6
NUT, NYLOC(10)
7542453
Unavailable
7
SCREW(10)
7512522
Unavailable
8
BAR,SWAY,5/8,41W,BLK
5224738-067
Unavailable
9
BUSHING,SWAY BAR
5432297
Unavailable
10
NUT,SERT(10)
7541938
Unavailable
11
SCREW(10)
7512082
Unavailable
12
BOLT(10) Substituted by 7517583
7515491
Unavailable
13
WASHER(10) Substituted by 7555832
7555851
Unavailable
13
WASHER(10) Substituted by 7555832
7555851
Unavailable
14
ARM,STEERING,BLK
5241499-067
Unavailable
15
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
15
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
15
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
STOP,RH,STRG,BLK,
5241579-067
Unavailable
16
STOP,LH,STRG,BLK.
5241578-067
Unavailable
17
SLIDE,SWAYBAR,5/8",LT
5431736
Unavailable
18
SPACER
5010347
Unavailable
19
BEARING
7060173
$10.99
20
RING,RETAINING(10)
7710437
$3.19
21
SCREW(10)
7512594
Unavailable
22
PLUG,CAP(10)
7080616
Unavailable
23
ARM,TRLG,LH (Incl. 19, 20)
1822347
Unavailable
23
ARM,TRLG,RH (Incl. 19, 20)
1822348
Unavailable
24
BUSHING-FLANGE
3573909
$2.39
25
WASHER SPECIAL(10)
7556509
$1.59
26
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
27
SHAFT,SPINDLE,HARD,BLK
6230101-067
Unavailable
28
Stop, Rubber
5411083
$12.94
29
BOLT(10)
7515462
$8.79
30
SKAG,CARBIDE,(CURVED SKI)
1820412
Unavailable
31
SKI ASM,(STARTING LINE)
1820427
Unavailable
33
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
34
NUT-5/16-18 NYLOK-Y
7542324
$1.49
35
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
36
BUSHING,PIVOT,(10)
5010158
$19.99
37
ZERK,FITTING,THREADED(10)
7080433
$1.49
38
SCREW
7515553
Unavailable
39
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
39
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
39
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
40
BUSHING-RADIUS ROD,(10)
5010127
$7.99
40
BUSHING-RADIUS ROD,(10)
5010127
$7.99
41
ROD,RAD,LOWER,BLK
1822354-067
Unavailable
42
ROD,RAD,UPPER,BLK
1822353-067
Unavailable
43
NUT JAM(10)
7542520
$2.39
44
ROD END,RH(7/16-20)XHD
7061006
$32.95
45
BRACE,LOW.RAD.ROD
5240936-067
$74.59
46
STRAP,SPACER BOTTOM
5211345
$12.99
47
BLOCK,RADIUS ROD
5131141
$25.86
48
BRACE,UP.RAD.ROD,BLK
5241705-067
$27.70
49
NUT,FLEX LOC(10)
7542507
$3.99
50
RIVET-3/16-.090-.290
7661637
$1.49
51
NUT FLEX,(10)
7542703
Unavailable
52
BRACE,LOW.PAN,BLK.
5241031-067
Unavailable
53
ROD END,RH,(1/2-20)XHD
7061007
Unavailable
54
NUT, NYLOCK(10)
7542525
$4.79
55
NUT-JAM(10)
7542711
$2.39
56
RETAINER,SPRING,SLOTTED
5020618
$24.99
57
SPRING,COMP,BLK
7041489-067
Unavailable
58
RING,SPRING PRELOAD,ADJ
5432304
Unavailable
59
Fox Shock - IFS (See Pg. for Details) NOTE: For Fox Shock replacement parts see pages -.
-------
Unavailable
