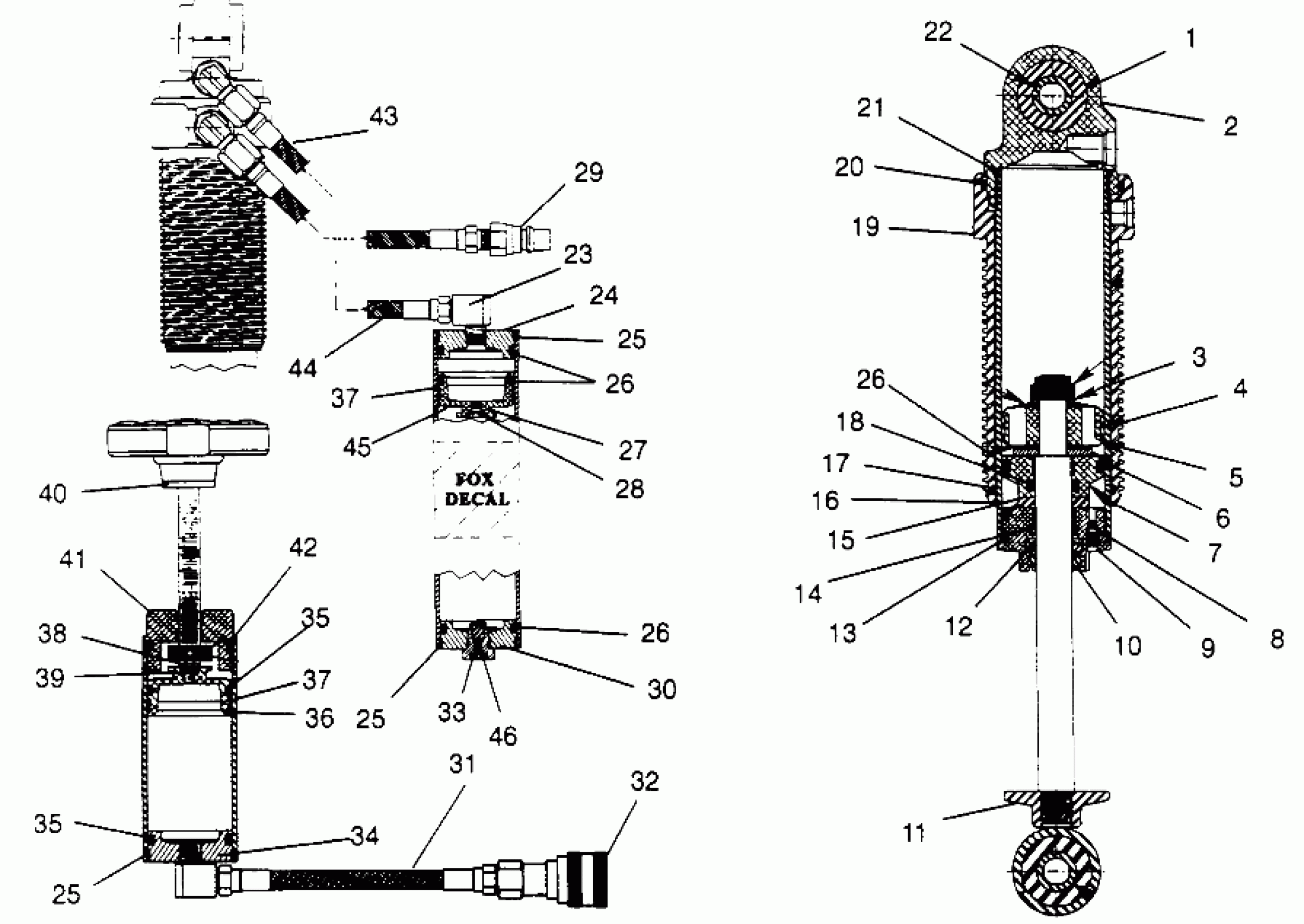

Polaris XCR 440 SP - 0961760 FOX SHOCK - GAS, MIDDLE 440 XCR SP 0961760 (4931583158C005) Diagram

#

Description
Price

-

SHOCK,F.TRACK,W/ RESERVOIR

7041507

$374.99

-

VALVE,REMOTE SHOCK LIMITER (Incl. 25, 27, 28, 31, 32, 34-40)

7041506

Unavailable

1

BUSHING,SHOCK,.260 Substituted by 1500184

5431541

Unavailable

2

CAP,BODY,W/PRELOAD

1500109

$40.59

3

BUSHING,BACKUP

1500015

$6.76

4

DAMPER,PISTONRING,FOX

1500002

$31.99

5

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

6

PLATE,TOP OUT

1500017

$20.22

7

SEPARATOR,PISTON,S/S W/ DU

1500128

Unavailable

8

BALL, (FOX)

1500071

$6.76

9

Screw

1500070

$6.39

10

WIPER,CLR,OUTER

1500024

Unavailable

11

EYELET,BASE,STD Substituted by 1500164

1500110

Unavailable

12

WIPER INNER Substituted by 1500266

1500025

$24.27

13

O-RING,(10).103W-1.299ID

1500020

$10.63

14

O-RING INNER (10)

1500021

$10.99

15

SPACER,SHAFT

1500125

Unavailable

16

RING,RETAINING

1500121

Unavailable

17

O-RING

1500122

$3.79

18

O-Ring

1500127

Unavailable

19

SLEEVE,ADJ.OUTER

1500124

$101.49

20

O-RING

1500123

Unavailable

21

O-RING,.103W-1.549ID

1500108

$10.99

22

BUSHING, (1.24)

5020640

Unavailable

23

FITTING,HOSE,90 DEG.

1500107

$39.59

24

CAP,RESERVOIR

1500118

Unavailable

25

RING, WIRE Substituted by 1500097

1500117

Unavailable

25

RING, WIRE Substituted by 1500097

1500117

Unavailable

25

RING, WIRE Substituted by 1500097

1500117

Unavailable

26

O-RING Substituted by 1500003

1500126

$8.89

26

O-RING Substituted by 1500003

1500126

$8.89

26

O-RING Substituted by 1500003

1500126

$8.89

27

O-RING,DRUM OUTER

1500022

Unavailable

28

Screw

1500018

$5.56

29

FITTING,HOSE

1500106

$19.79

30

VALVE ASM,AIR Substituted by 1500014

1500072

Unavailable

31

HOSE (5.5")

1500112

$30.55

32

FITTING,HOSE,90 DEG.

1500111

Unavailable

33

O-RING,OUTER

1500023

$2.84

34

CAP,END,RESERVOIR Substituted by 1500118

1500116

Unavailable

35

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

35

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

36

PISTON (IFP)

1500011

$59.99

37

RING,PISTON,FLOATING,FOX

1500006

$19.99

37

RING,PISTON,FLOATING,FOX

1500006

$19.99

38

KNOB,PLASTIC,ADJ

1500115

$23.59

39

CAP,END,RESERVOIR

1500114

Unavailable

40

O-RING

1500113

Unavailable

41

HOSE, 30 IN. (30")

1500120

Unavailable

42

HOSE, 57 IN. (57")

1500119

Unavailable

43

Screw

1500019

$6.39
