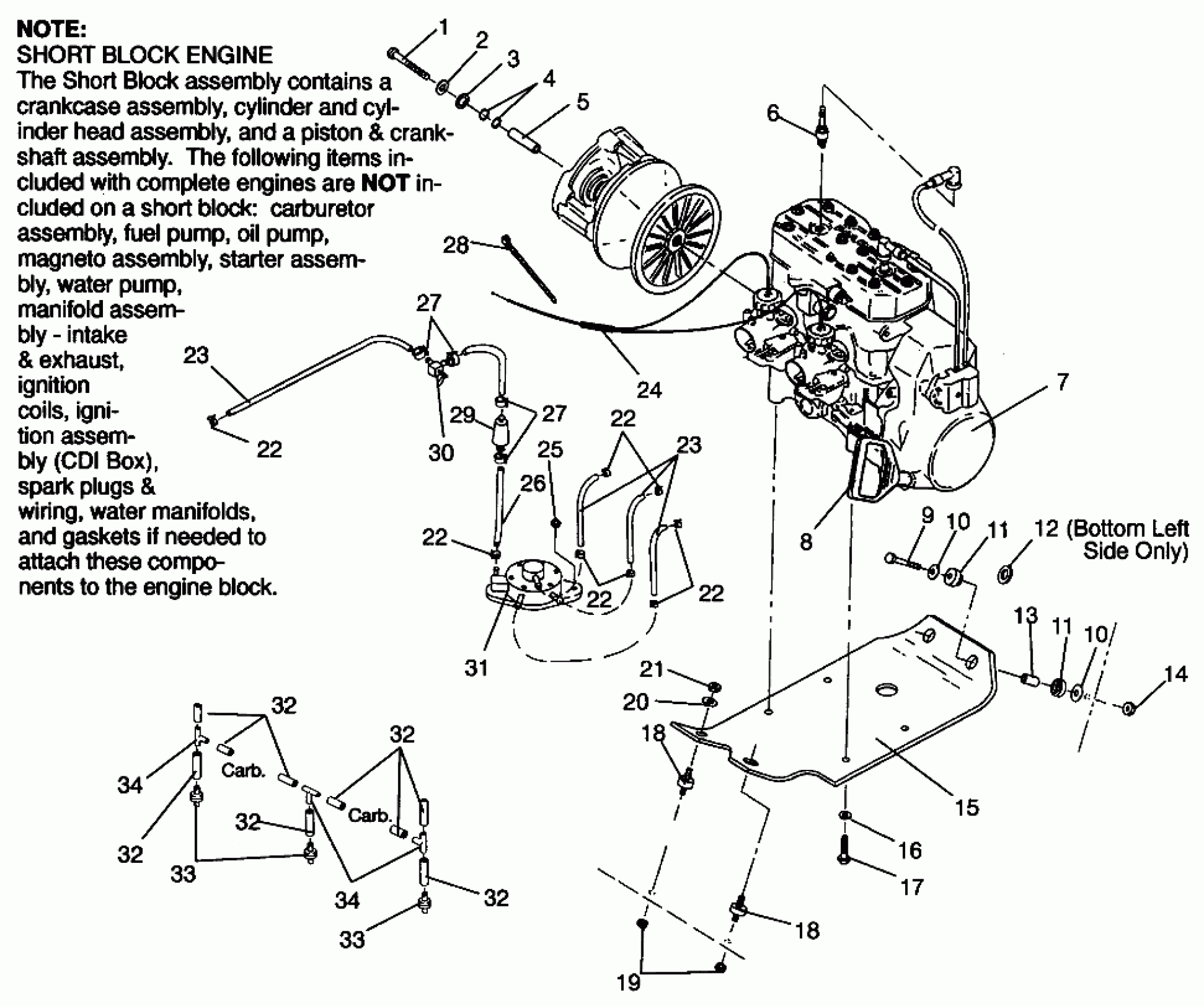

Polaris XCR 440 SP - 0961760 ENGINE MOUNTING 440 XCR SP 0961760 (4931583158C001) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARKPLUG(8)

3070165

$3.99

7

ENG.(S.B.)EC45PL-08 [No Longer Available]

3085218

Unavailable

8

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

9

SCREW(10)

7512530

$5.59

10

WASHER(10)

7555740

$1.59

10

WASHER(10)

7555740

$1.59

11

MOUNT,ENGINE

5411082

Unavailable

11

MOUNT,ENGINE

5411082

Unavailable

12

WASHER(10) (Bottom Left Side Only)

7555929

Unavailable

13

TUBE,SPACER

5333354

Unavailable

14

NUT,FLANGE(10)

7542522

$5.59

15

PLATE,MTR.MT.

5240932

Unavailable

16

WASHER LOCK(10)

7553101

$3.99

17

BOLT(10)

7512539

$3.99

18

MOUNT

3110022

Unavailable

18

MOUNT

3110022

Unavailable

19

NUT LOCK(10)

7542411

$3.19

20

WASHER(10) Substituted by 7555806

7555720

$0.79

21

NUT-LOCK(10)

7542439

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

23

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

23

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

24

CABLE,THROTTLE,W/OIL

7080552

Unavailable

25

NUT-LOCK(10)

7542122

$1.49

26

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

27

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

27

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

FILTER FUEL,(10)

2530008

$4.84

30

VALVE,FUEL SHUT-OFF

7052039

Unavailable

31

Fuel Pump (See Pg., Ref.)

-------

Unavailable

32

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

32

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

32

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

32

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

32

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

33

VENT,CHECKVALVE

7051011

Unavailable

33

VENT,CHECKVALVE

7051011

Unavailable

34

FITTING, TEE,(10)

7052048

$3.99

34

FITTING, TEE,(10)

7052048

$3.99
