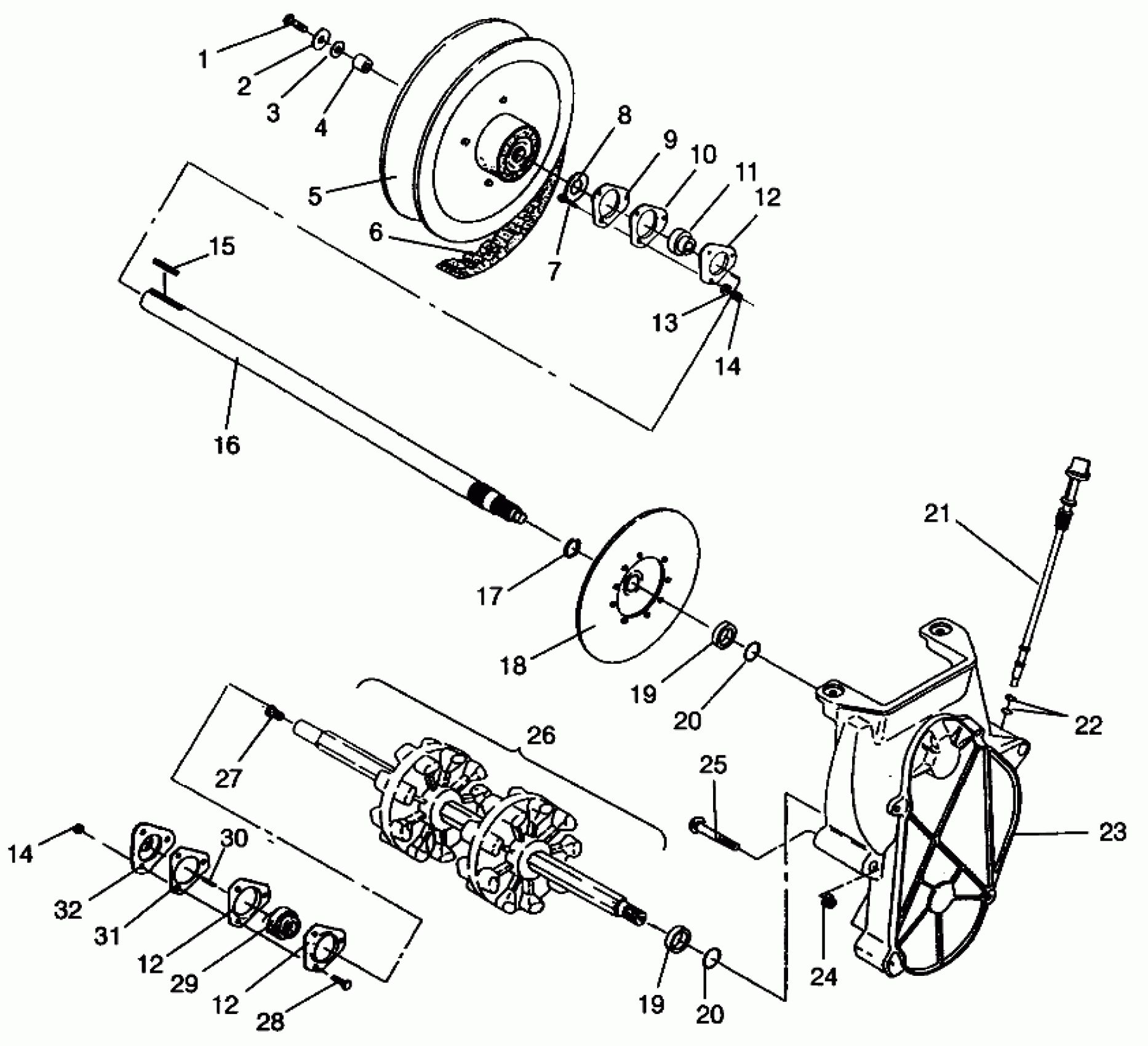

Polaris XCR 440 SP - 0961760 DRIVE TRAIN 440 XCR SP 0961760 (4931583158B008) Diagram

#

Description
Price

1

BOLT(10)

7515301

Unavailable

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER

5020291

Unavailable

5

Asm., Driven Clutch (See pg.)

-------

Unavailable

6

BELT DRIVE(5)

3211042

$109.99

7

BOLT(10) Substituted by 7512377

7512394

Unavailable

8

WASHER SPECIAL(10)

7556509

Unavailable

9

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

10

GASKET,JACKSHAFT,BLK.

5811095

$2.41

11

BEARING,JACKSHAFT (Incl. 12)

3514519

$64.99

12

FLANGETTE

5222751

$16.44

12

FLANGETTE

5222751

$16.44

12

FLANGETTE

5222751

$16.44

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

KEY-SQUARE(10)

7721204

$3.19

16

JACKSHAFT ASM,BLK,TUBULAR Substituted by 2201118 (Incl. 17)

1332165-067

Unavailable

17

RING, RETAINING(10)

7710422

$3.99

18

DISC ASM,BRAKE,VENTED

1910197

Unavailable

19

SLEEVE, SEAL

5020588

$23.99

19

SLEEVE, SEAL

5020588

$23.99

20

O RING,(10)

5410613

$1.99

20

O RING,(10)

5410613

$1.99

21

DIPSTICK Substituted by 1332143

5431419

Unavailable

22

O-RING

5410675

$1.60

23

Chaincase, Top Mount Brake (See Pg. B6, Ref. 23)

-------

Unavailable

24

NUT(10)

7542423

$3.99

25

BOLT(10)

7515428

$4.79

26

DRIVESHAFT ASM,HD 2DR,WIDE (Incl. 28)

1590252

$285.70

27

BUSHING METAL SPEEDO

3280019

$11.99

28

BOLT(10)

7512331

$3.99

29

BEARING,DRIVESHAFT

3514518

$64.99

30

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

31

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

32

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
