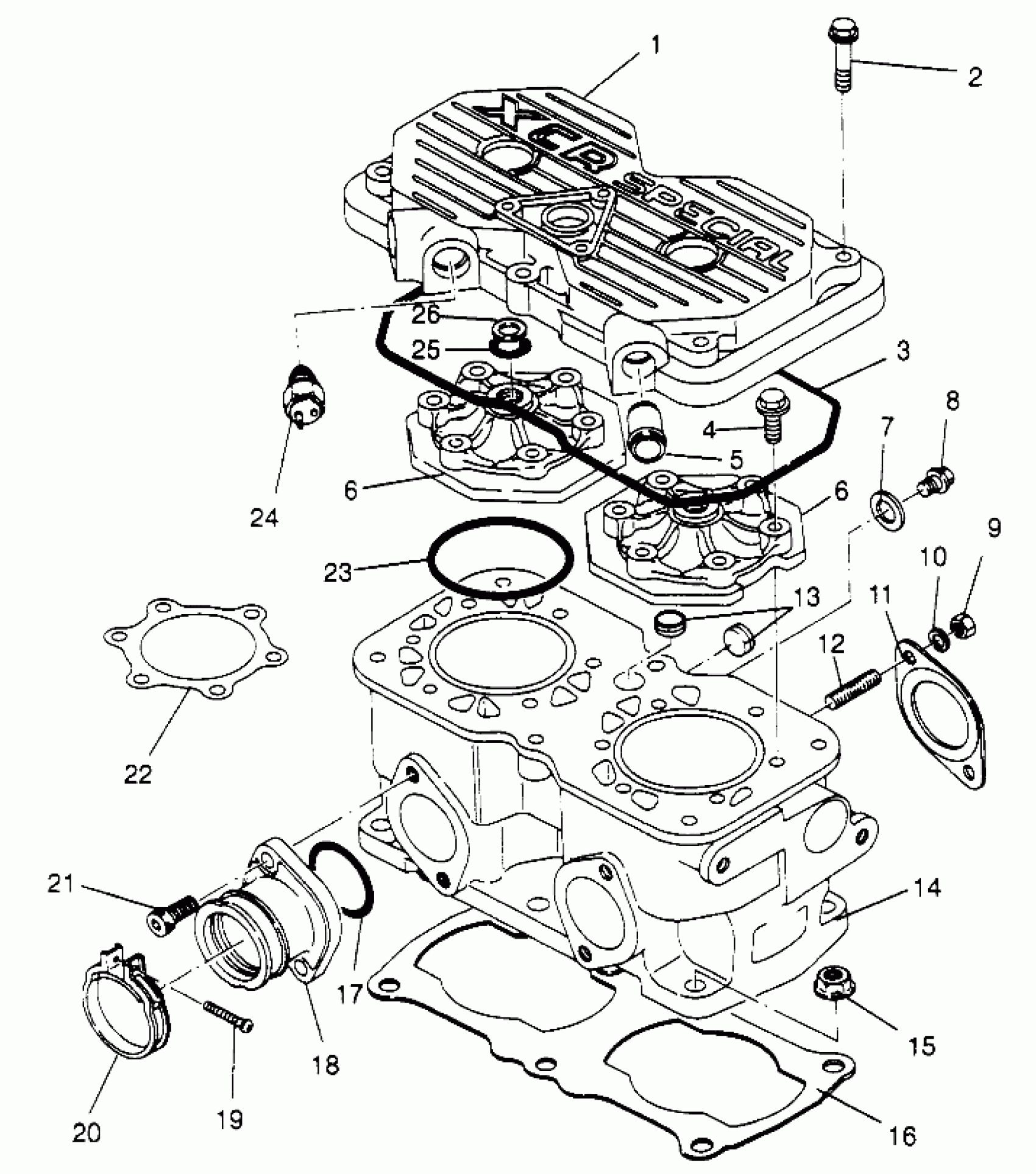

Polaris XCR 440 SP - 0961760 CYLINDER 440 XCR SP 0961760 (4931583158C008) Diagram

#

Description
Price

1

COVER ASM, HEAD (Incl. 5) (Unpainted)

3085210

Unavailable

2

Bolt, Flange

3084134

Unavailable

3

O RING,HD.COVER

3084711

Unavailable

4

BOLT, FLANGE ,(10)

3084435

Unavailable

5

Pipe, Water

3083452

Unavailable

6

HEAD, CYLINDER

3085217

Unavailable

6

HEAD, CYLINDER

3085217

Unavailable

7

Gasket, Aluminum

3084492

$4.03

8

Plug

3084491

Unavailable

9

NUT(10)

3080285

Unavailable

10

WASHER LOCK ,(10)

3080530

$3.19

11

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

12

STUD,(10)

3085326

Unavailable

13

PLUG Substituted by 3240071

3084712

Unavailable

14

CYLINDER (Incl. 12, 13)

3085385

$1,230.93

15

NUT-FLANGE(10)

3082911

$1.99

16

Gasket, Base

3084768

$64.99

17

O-RING Substituted by 3085619

3084272

Unavailable

18

ADAPTER,CARB. (Incl. 17)

3085044

Unavailable

19

SCREW,(10)

3081497

$2.39

20

BAND ASM. (Incl. 19)

3083166

$19.84

21

Bolt, Allen

3081330

$3.99

22

SHIM,HD.GASKET (.4 mm) (Opt.)

3084686

$32.13

23

O RING(CYLINDER)

3084709

Unavailable

24

SWITCH,THERMAL(93 DEG.C.) (93

3083055

Unavailable

25

O RING

3085192

Unavailable

26

SPACER [No Longer Available] NOTE: Order Polaris "P" Number (P093 Fire Red) from Midwest Industrial Coatings (612-934-8252). Mix as directed.

3084687

$4.76
