COOLING SYSTEM 440 XCR SP 0961760 (4931583158B005)

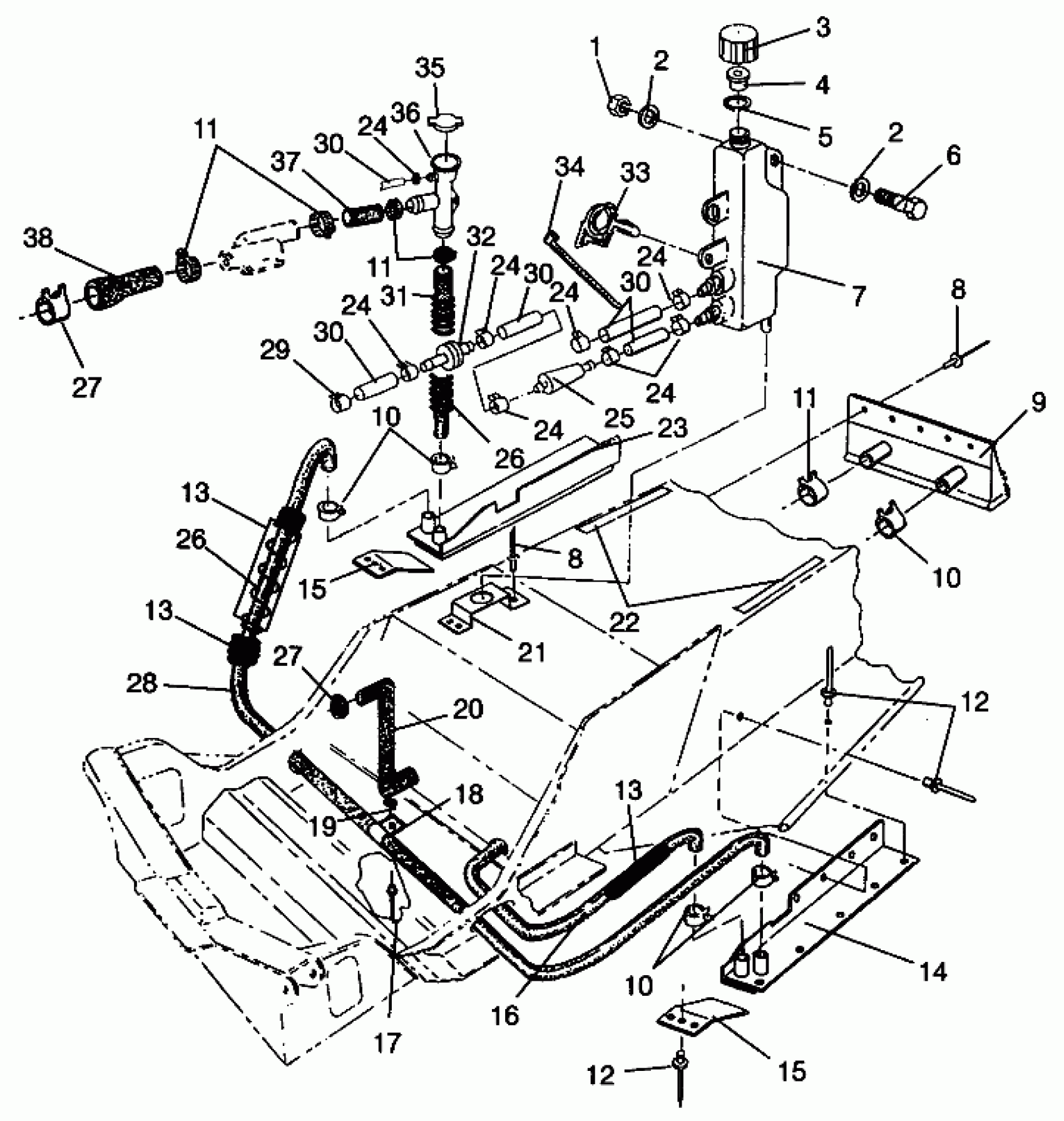

Polaris XCR 440 SP - 0961760 COOLING SYSTEM 440 XCR SP 0961760 (4931583158B005) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER,COOL.CTR.
2511239
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
13
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
13
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
14
COOLER,LH,SIDE(XTRA 10) Substituted by 1240059
2511257
$144.99
15
GUARD, COOL.EXT.
5222863
$32.99
15
GUARD, COOL.EXT.
5222863
$32.99
16
HOSE,LH,SIDE/CTR. (Short)
5411114
$17.43
17
RIVET(50)
7621456
Unavailable
18
CLAMP, 1"HOSE(10)
7080585
$3.99
19
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
20
HOSE,PUMP/CLOSE-OFF EXT.
5410979
Unavailable
21
BRACKET
5223985
Unavailable
22
PAD-GAS TANK
5810063
$4.95
23
COOLER,RH,SIDE(XTRA 10)
2511258
$227.99
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
25
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
26
SPRING,HOSE RETAINER
7041079
$4.95
26
SPRING,HOSE RETAINER
7041079
$4.95
27
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842
7080563
Unavailable
27
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842
7080563
Unavailable
28
HOSE,CROSSOVER
5411089
Unavailable
29
CLAMP-HOSE(10)
7080134
Unavailable
30
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
30
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
30
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
31
HOSE,3/4 TO 1,FILLNECK/COOLER
5410959
Unavailable
32
VALVE, CHECK
7052038
$10.51
33
CLIP, PLASTIC(10)
4020139
$4.79
34
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
35
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
36
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
37
HOSE,90D,BRAKE/FILLER,MOD
5411143
Unavailable
38
HOSE,BRAKE COOLING
5410884
Unavailable
