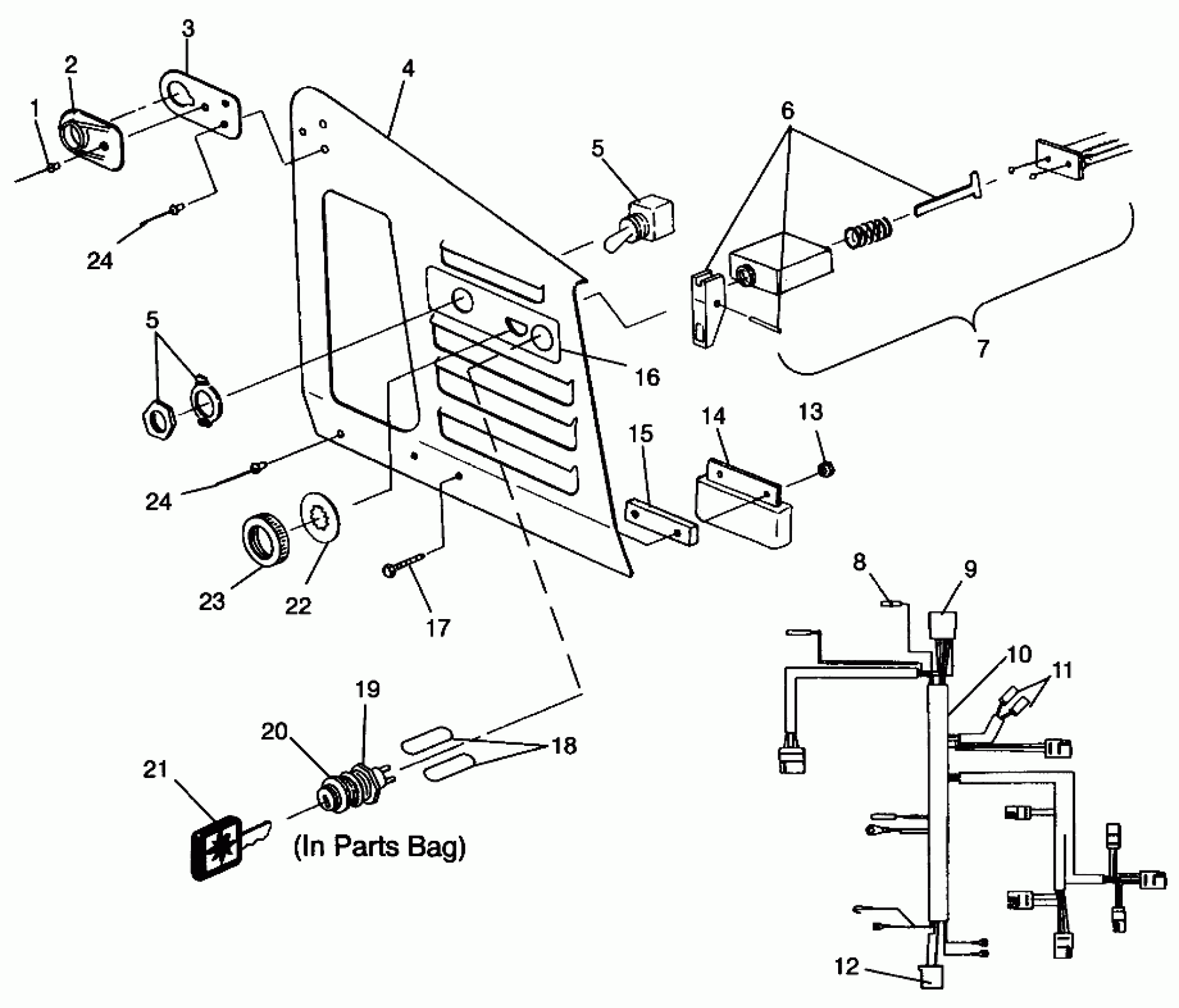

Polaris XCR 440 SP - 0961760 CONSOLE 440 XCR SP 0961760 (4931583158A014) Diagram

#

Description
Price

1

RIVET,(50)

7621477

$1.19

2

GUIDE, RECOIL

5431385

$10.51

3

BRKT,ROPE GUIDE,BLK.

5222682-067

Unavailable

4

CONSOLE,W/IGNITION,BLK,SP.

5241518-067

Unavailable

5

SW,GRIP,HEATER-HI/LO

4110113

$70.39

5

SW,GRIP,HEATER-HI/LO

4110113

$70.39

6

KIT-CHOKE CONTROL

2200188

$24.27

7

Cable, Choke Control

7080290

$105.22

8

HOUSING

4020133

Unavailable

9

Housing w/Receptacle

4020057

$3.51

10

HARNESS,MAIN WIRE,(XCR SP)

2460484

Unavailable

11

Housing

4020153

$1.49

12

HOUSING

4020063

$3.19

13

NUT(10)

7541925

$1.49

14

REGULATOR,14 VAC.LR-9

4060122

Unavailable

15

SPACER,REGULATOR

5211573

Unavailable

16

DECAL,CONSOLE,VENTED

7075726

Unavailable

17

BOLT(10)

7512031

$2.23

18

DESC NOT_AVAILABLE

8360037-02

Unavailable

19

KIT,IGN. SWITCH (Incl. 21)

2200357

Unavailable

20

NUT, IGN.SWITCH(10)

7543101

Unavailable

21

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

5410611

Unavailable

22

WASHER-LOCK(10)

7571610

$3.99

23

Nut

7080229

$19.99

24

RIVET,INTERLOCK,B(50) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot

7661638

$1.49

24

RIVET,INTERLOCK,B(50) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot

7661638

$1.49
