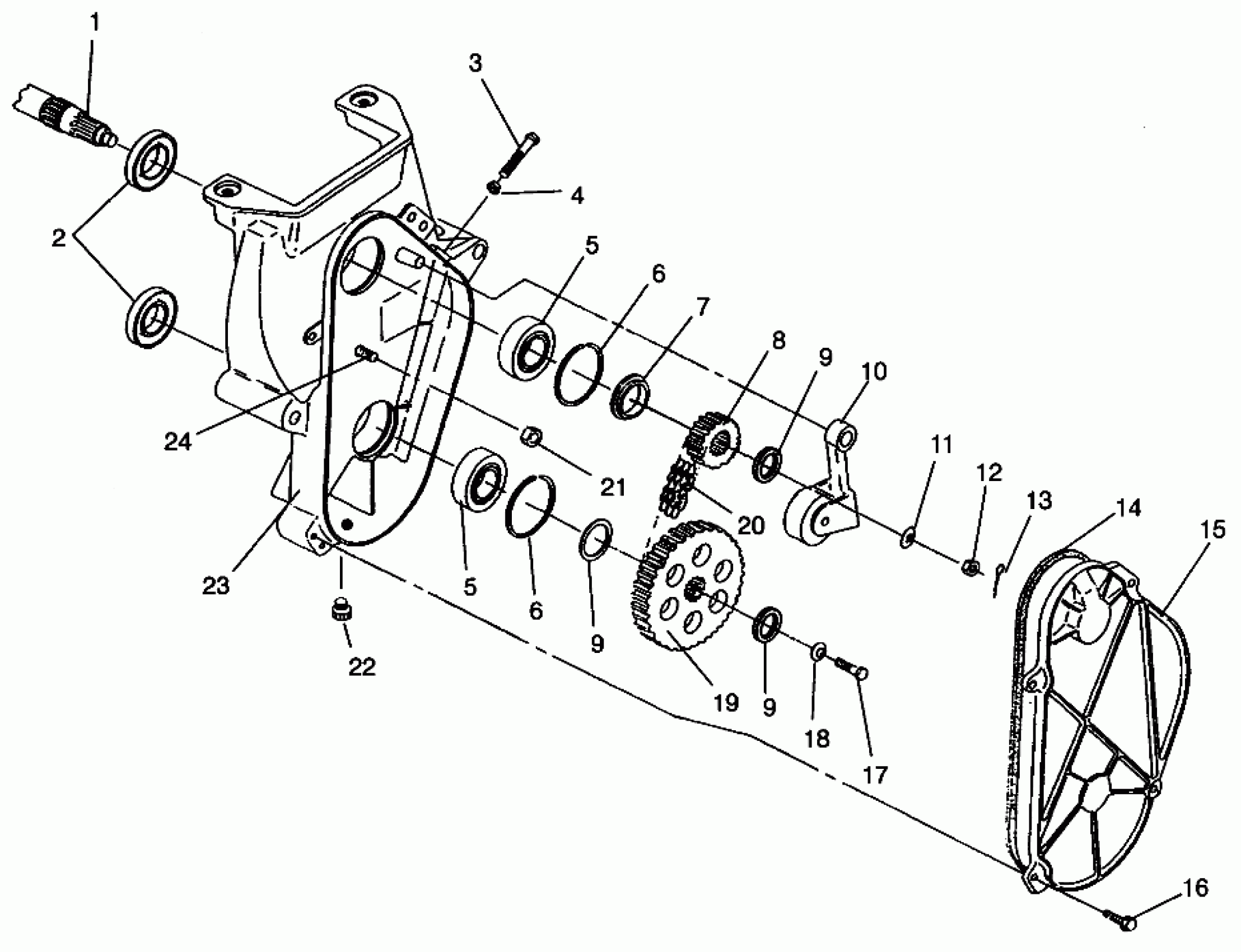

Polaris XCR 440 SP - 0961760 CHAINCASE 440 XCR SP 0961760 (4931583158B007) Diagram

#

Description
Price

1

Asm., Jackshaft (See Pg., Ref.)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

SCREW(10)

7515511

$3.99

4

NUT(10)

7542404

$1.59

5

BEARING

3514308

Unavailable

5

BEARING

3514308

Unavailable

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPACER,SPROCKET

5010359

Unavailable

8

SPKT,21T,11W,15T,STEEL

3221081

Unavailable

9

BUSHING(10)

7555864

$2.39

9

BUSHING(10)

7555864

$2.39

9

BUSHING(10)

7555864

$2.39

10

PIN,CHAIN TIGHTENER

7662210

Unavailable

10

TIGHTENER ASM,GEARCASE Substituted by 1332213

1332096

$159.99

10

BEARING

3553002

$11.99

10

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

10

WHEEL,C/C IDLER

5630123

Unavailable

10

WASHER THRUST(10)

7558702

$1.59

11

WASHER, SLOTTED(10)

7571620

$7.19

12

NUT

7542811

Unavailable

13

COTTER PIN(10)

7661401

$1.49

14

GASKET-CHAINCASE

5410277

$24.99

15

COVER,CHAINCASE,MAG,CAST Substituted by 5630413

5630592

Unavailable

16

SCREW(10) Substituted by 7512242

7517210

Unavailable

17

SCREW(10)

7515350

$3.97

18

WASHER(10)

7571618

$6.39

19

SPROCKET 39 T

3222034

Unavailable

20

CHAIN 66 PITCH

3224024

Unavailable

21

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

22

PLUG(10)

7052115

$5.65

23

CHAINCASE,W/BRG.,CLR,MAG Substituted by 5131121

5131232

Unavailable

24

BOLT(10)

7515477

$34.99
