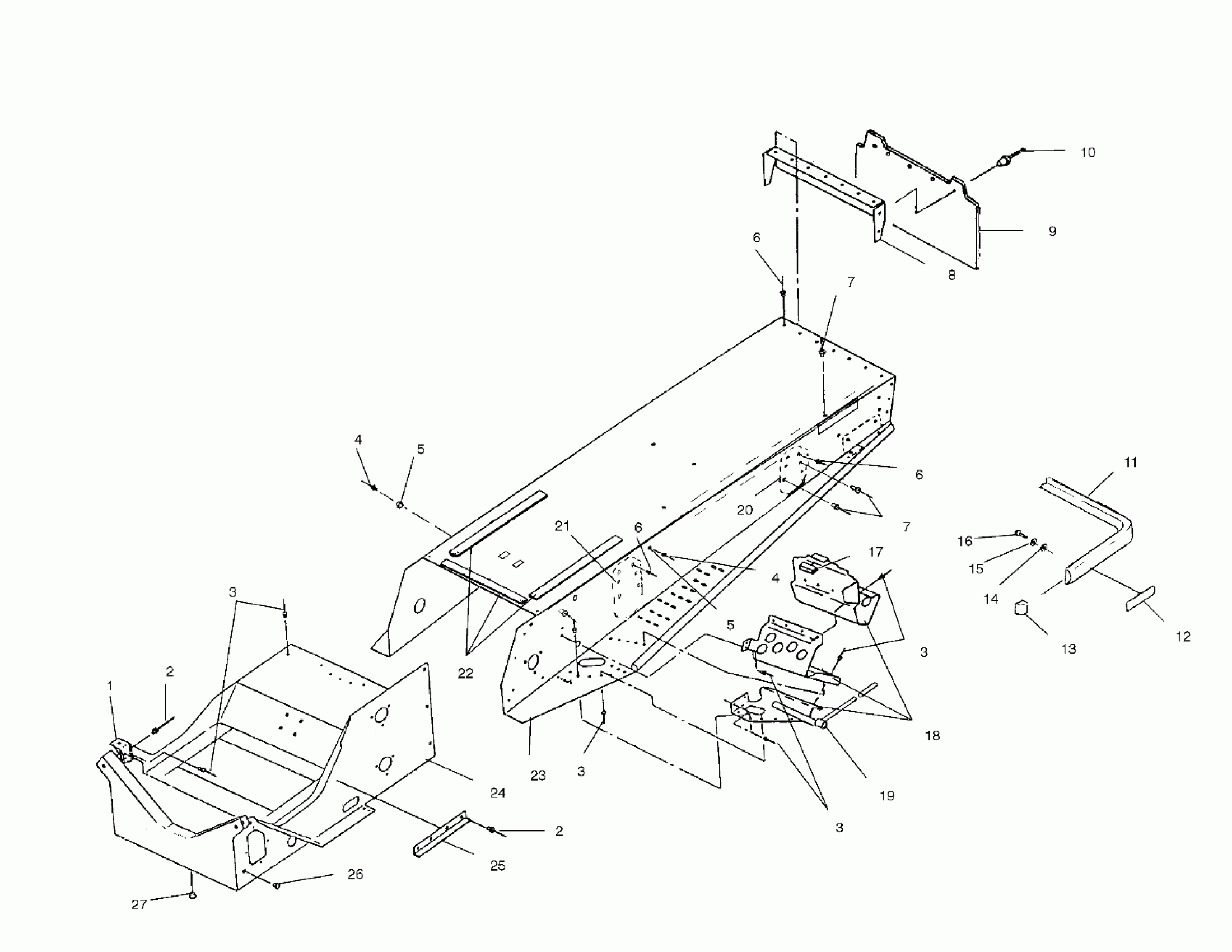

Polaris XCF SP - 099SX4FS TUNNEL - 099SX4FS (4953375337a005) Diagram

#

Description
Price

1

SUPPORT,MUFFLER,FRT

5242798-067

$17.43

2

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

RIVET(50) Substituted by 7661130

7661643

Unavailable

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

4

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

5

SNAP-MALE(10)

7080227

Unavailable

5

SNAP-MALE(10)

7080227

Unavailable

6

RIVET,SEMI-TUBE,(50)

7661841

$1.49

6

RIVET,SEMI-TUBE,(50)

7661841

$1.49

6

RIVET,SEMI-TUBE,(50)

7661841

$1.49

7

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

7

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

8

PANEL,TUNNELBACK

5241053-067

$308.99

9

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

10

POP RIVET(50)

7621418

$1.49

11

BUMPER,REAR,BLACK Substituted by 2670169

2670169-067

Unavailable

12

REFLECTOR ASM,RED

2670133

$5.75

13

CAP,BUMPER

5431995-070

Unavailable

14

WASHER(10)

7558301

$1.49

15

LOCK WASHER(10)

7552801

$1.59

16

BOLT(10)

7512240

$3.99

17

EXTRUSION,CLUTCHGUARD

5521238

$6.46

18

FOOTREST ASM,LH,BLK.

1012681

Unavailable

18

FOOTREST ASM,RH,BLK.

1012682

$95.24

19

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

19

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

20

PAD,LH,R.SUSP.

5241268-067

Unavailable

20

PAD,RH,R.SUSP.

5241269-067

Unavailable

21

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

21

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

22

PAD-GAS TANK

5810063

$4.95

23

TUNNEL,F/C,BLACK (Incl. 8,20,21)

1012983-067

Unavailable

24

BULKHEAD,CRC,BLK

1012706-067

Unavailable

25

GUARD,ADAPTER GUIDE

5222857

$12.94

26

PLUG, HOLE(10)

7080416

$5.65

27

PLUG-HOLE

7080398

$4.84
