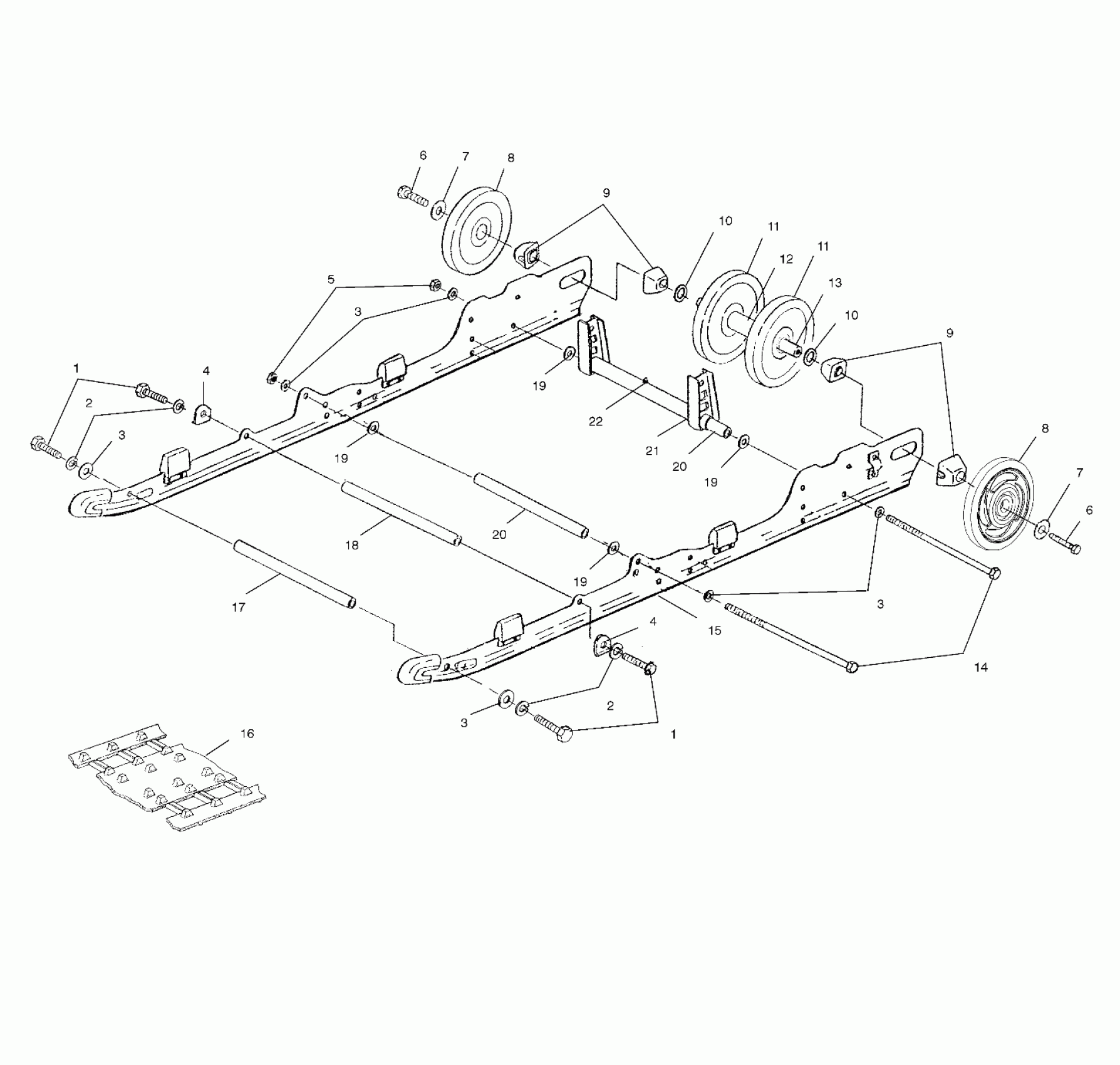

Polaris XCF SP - 099SX4FS SUSPENSION - 099SX4FS (4953375337b008) Diagram
#
Description
Price
1
SCREW,(10)
7517247
$3.19
1
SCREW,(10)
7517247
$3.19
2
WASHER(10)
7552603
$1.49
2
WASHER(10)
7552603
$1.49
3
WASHER(10)
7555806
$1.49
3
WASHER(10)
7555806
$1.49
3
WASHER(10)
7555806
$1.49
3
WASHER(10)
7555806
$1.49
4
BRKT-SHAFT SUPPORT
5241443
Unavailable
4
BRKT-SHAFT SUPPORT
5241443
Unavailable
5
NUT LOCK(10)
7542411
$3.19
6
BOLT(10)
7515526
$1.19
6
BOLT(10)
7515526
$1.19
7
WASHER(10) Substituted by 7556130
7571629
Unavailable
7
WASHER(10) Substituted by 7556130
7571629
Unavailable
8
WHEEL,IDLER,SCRLLD,INDYRED
1594083-293
Unavailable
8
WHEEL,IDLER,SCRLLD,INDYRED
1594083-293
Unavailable
9
SPACER-IDLER
5432535
$11.99
9
SPACER-IDLER
5432535
$11.99
10
BUSHING(10)
7555918
$1.59
10
BUSHING(10)
7555918
$1.59
11
WHEEL ASM,PLAIN(6.38 O.D.)
1594087
$72.84
11
WHEEL ASM,PLAIN(6.38 O.D.)
1594087
$72.84
12
SPACER-IDLER, CENTER
5333283
$19.99
13
SHAFT,IDLER
5020744
$59.99
14
Screw
7517353
Unavailable
15
SLIDER,WHI.,(2)
5521452
$40.46
16
TRACK,121X.82
5411593
$626.99
16
CLIP-TRACK/GUIDE
5244101
Unavailable
16
DESC NOT_AVAILABLE
5244012
Unavailable
17
SHAFT,PIVOT ARM
5020723
$29.99
18
SHAFT,PIVOT ARM
5020724
$29.99
19
WASHER(10)
7555893
$1.49
19
WASHER(10)
7555893
$1.49
19
WASHER(10)
7555893
$1.49
19
WASHER(10)
7555893
$1.49
20
SHAFT
5333404
$24.27
20
SHAFT
5333404
$24.27
21
ARM,R.PIVOT
1540982-067
$38.05
22
ZERK,FITTING,THREADED(10)
7080433
$1.49
