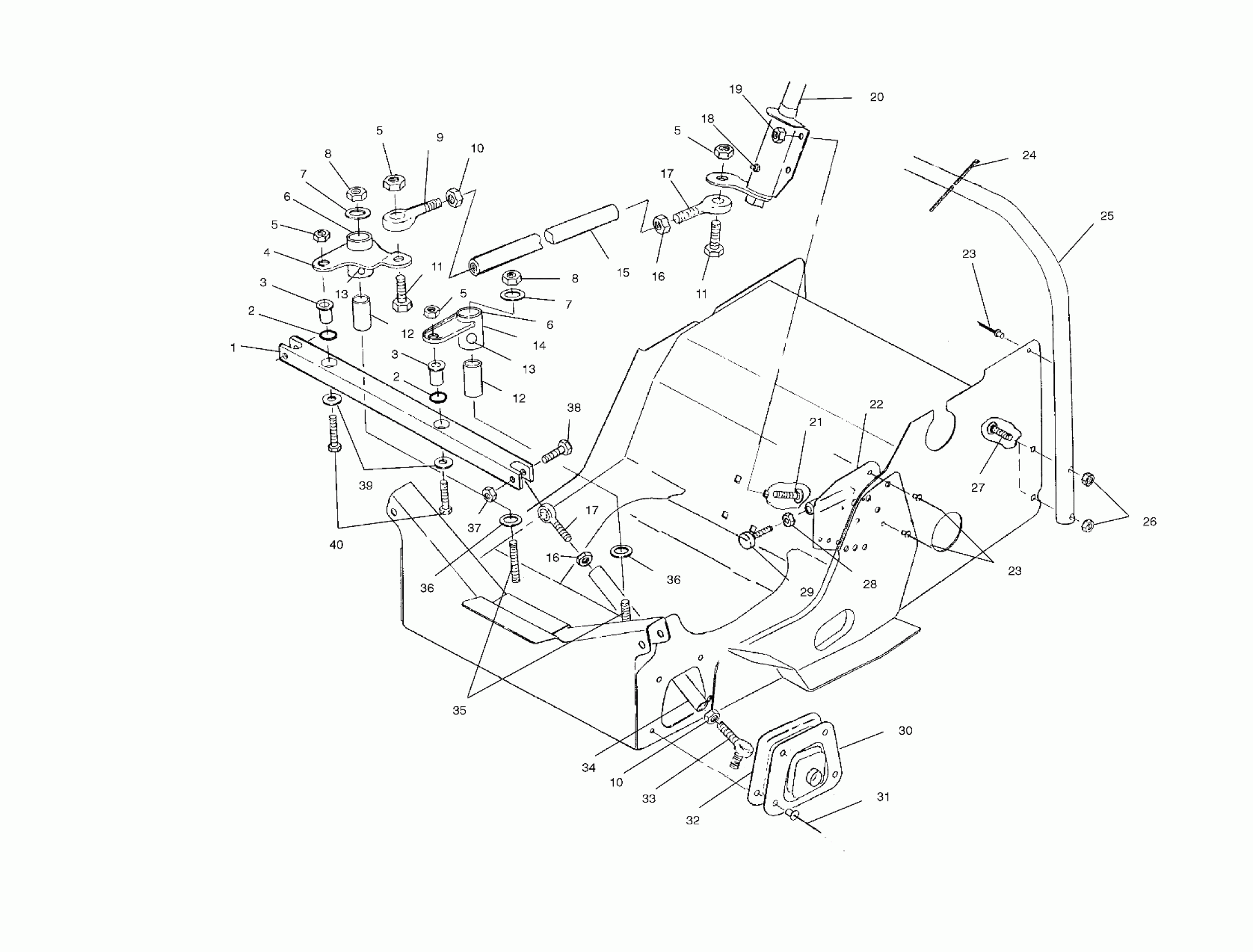

Polaris XCF SP - 099SX4FS STEERING - 099SX4FS (4953375337b005) Diagram

#

Description
Price

1

RACK ASM,STEERING

1822413

$77.78

2

O-RING

5411220

$6.46

2

O-RING

5411220

$6.46

3

TUBE,SPACER

5010384

Unavailable

3

TUBE,SPACER

5010384

Unavailable

4

PITMAN ARM (Incl. 6,13)

1820585

Unavailable

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

6

BUSHING

3563907

$3.99

6

BUSHING

3563907

$3.99

7

WASHER(10)

7555721

$1.49

7

WASHER(10)

7555721

$1.49

8

NUT,FLEX LOCK(10)

7547029

Unavailable

8

NUT,FLEX LOCK(10)

7547029

Unavailable

9

ROD END,RH

7060167

$48.56

10

NUT HEX(10)

7542401

$2.39

10

NUT HEX(10)

7542401

$2.39

11

BOLT(10)

7512404

$3.99

11

BOLT(10)

7512404

$3.99

12

Spacer

5010468

Unavailable

12

Spacer

5010468

Unavailable

13

ZERK,FITTING,THREADED(10)

7080433

$1.49

13

ZERK,FITTING,THREADED(10)

7080433

$1.49

14

IDLER ARM (Incl. 6,13)

1820582

Unavailable

15

ROD,DRAG LINK

5020881

$18.23

16

NUT

7542424

$1.49

16

NUT

7542424

$1.49

17

ROD END,LH

7060166

$48.56

17

ROD END,LH

7060166

$48.56

18

FITTING,LUB/VEN(10)

7080561

$4.79

19

NUT FLEX-LOC(10)

7542303

$6.39

20

Post, Steering (See Footnote) (See Steering/Handlebar Pg. B4, Ref. 25)

-------

Unavailable

21

BOLT,(10)

7517428

$2.39

22

TORQUE STOP

1012855

$49.59

23

RIVET,INTERLOCK,B(50)

7661638

$1.49

23

RIVET,INTERLOCK,B(50)

7661638

$1.49

24

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

25

STEERING HOOP,BLK Substituted by 1013153-067

1012795-067

$41.59

26

NUT, LOCK(10)

7542103

$5.59

27

BOLT-CARRIAGE(10)

7512275

$3.99

28

NUT(10)

7542404

$1.59

29

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

30

PLATE,BOOT,MOD

5211796-067

$31.35

31

POP RIVET(50)

7621323

$1.49

32

BOOT,TIEROD,MOD

5411249

Unavailable

33

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

34

TIEROD,BLK

5020857-067

Unavailable

35

SCREW(10)

7517328

$13.19

36

WASHER(10)

7556053

$2.63

36

WASHER(10)

7556053

$2.63

37

NUT LOCK(10)

7542411

$3.19

38

SCREW(10)

7515434

Unavailable

39

WASHER(10)

7555893

$1.49

40

BOLT(10)

7515415

$1.49
